Husqvarna 141 (2003-01) Chain Saw

Model: 141 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

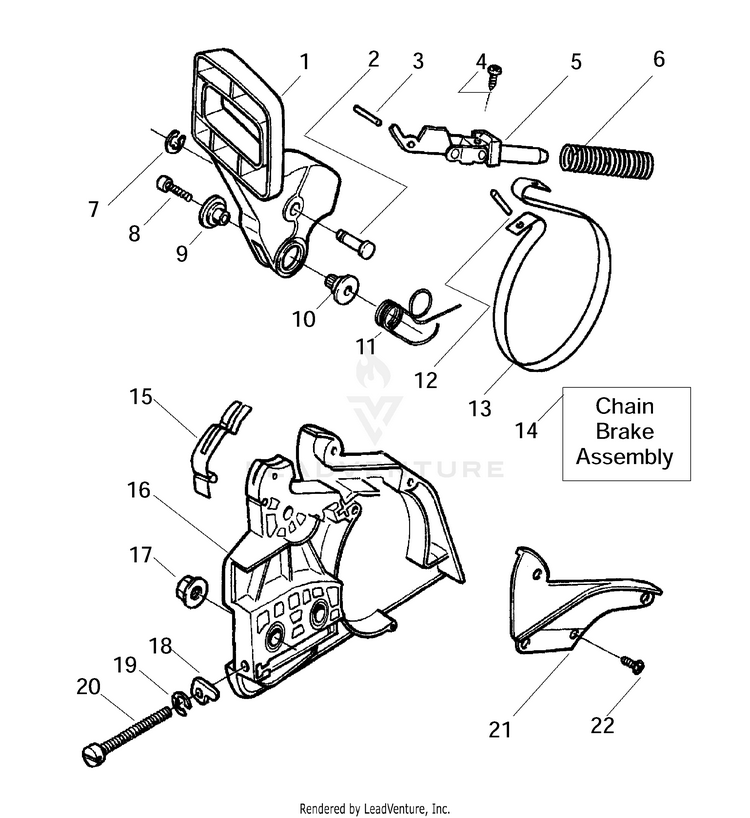

Chain Brake

...
...
1
HANDGUARD HUS-530071348
...
2
PIVOT PIN HUS-530029879
...
3
PIN HUS-530015915
...
4
SCREW M3.63-1.34 X 8MM HUS-574780301
...
5
FRONT LINK ASSY HUS-530054741
...
6
COMPRESSION SPRING HUS-545137301
...
7
RETAINER HUS-530038593
...
8
SCREW HUS-530016384
...
9
JOURNAL, RIGHT HUS-530056531
...
10
SHAFT PIVOT HUS-530029881
...
11
SPRING,BRK HDL 36/41 HUS-530015910
...
12
PIN HUS-530015913
...
13
BRAKE BAND HUS-545137401
...
14
CHAIN BRAKE ASM. HUS-530054802
...
15
SPRING-POSITION HUS-530029878
...
16
CLUTCH COVER HUS-530049483
...
17
BAR NUT HUS-530015917
...
18
ADJUST PIN,BAR 36/41 HUS-530015826
...
19
RETAINER HUS-530038593
...
20
BAR ADJUSTING SCREW HUS-530016110
...
21
CHAIN BRAKE COVER HUS-530053035
...
22
SCREW M3.63-1.34 X 8MM HUS-574780301
...
xx
U.S./Canada Not Shown HUS-530088322
...
xx
MANUAL, OPERATORS Not Shown HUS-530088185
...
xx
European Not Shown HUS-530088186
...
xx
MANUAL-OPERATORS Not Shown HUS-530088541
...
xx
Scan. Not Shown HUS-530088184
...
xx
Japan Not Shown HUS-530086223
...
xx
WRENCH Not Shown HUS-587417201
...
xx
PULLER WORM GEAR Not Shown HUS-530031136
...
xx
CLUTCH TOOL Not Shown HUS-530031112
...
xx
KICKBACK WARNING DECAL Not Shown HUS-530047941
...
xx
HUS SCABBARD 13-16" Not Shown HUS-596703701
