Husqvarna 141 (2003-01) Chain Saw

Model: 141 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

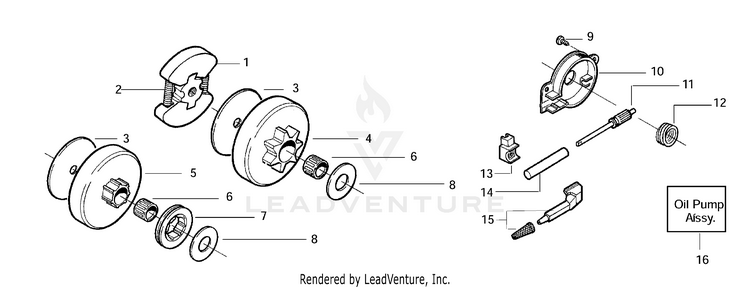

Clutch/Drum/Oil Pump

...
...
1
CLUTCH ASSEMBLY (incl. 2) HUS-530014949
...
2
CLUTCH ASSEMBLY HUS-530014949
...
3
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
4
CLUTCH DRUM ASSY HUS-530047061
...
5
CLUTCH DRUM 325 X 7T (incl. 6 & 7) HUS-530069316
...
6
NEEDLE BEARINGS 36/41 HUS-530032119
...
7
11892 POWER MATE RIM HUS-640200010
...
8
THRUST WASHER HUS-530015907
...
9
SCREW HUS-530015896
...
10
PLUNGER & GEAR ASSY HUS-545036801
...
11
PLUNGER & GEAR ASSY HUS-545036801
...
12
OILER GEAR 36/41 HUS-530029833
...
13
PRESSURE SEAL,OILER 36/41 HUS-530019174
...
14
PLUNGER & GEAR ASSY HUS-545036801
...
15
OIL HOSE HUS-545037101
...
16
PLUNGER & GEAR ASSY (Includes 10,11 & 14) HUS-545036801
Schematic Image Zoomed
