Husqvarna 141 (2003-01) Chain Saw

Model: 141 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

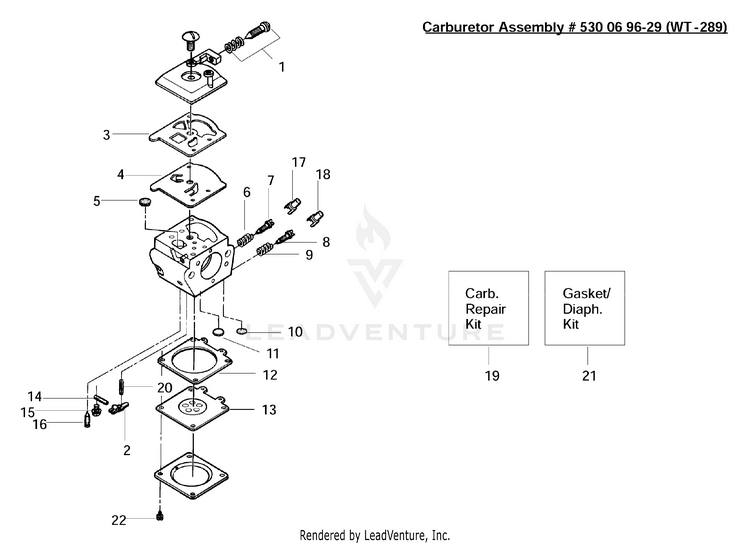

Carburetor Assembly (WT-289)

...
...
1
IDLE ADV SCREW KIT HUS-530035296
...
2
LEVER HUS-505520127
...
3
GASKET HUS-504130906
...
4
PUMP DIAPHRAGM HUS-504130807
...
5
FUEL INLET SCREEN HUS-501666101
...
6
NEEDLE SPRING HUS-530035293
...
7
LOW SPEED NEEDLE HUS-530035281
...
8
High Speed Needle HUS-530037259
...
9
NEEDLE SPRING HUS-530035295
...
10
Welch Plug (5/16) HUS-530035162
...
11
CUP PLUG HUS-530035225
...
12
METERING DIA GASKET HUS-530035165
...
13
DIAPHRAGM HUS-503896701
...
14
FULCRUM PIN HUS-505520125
...
15
SCREW HUS-530035016
...
16
VALVE/INLET. HUS-503117001
...
17
LIMITER CAP-HIGH HUS-530038479
...
18
LIMITER CAP-LOW HUS-530038478
...
19
CARB REPAIR KIT (Incl. 3-5 & 10-18) HUS-530069826
...
19
KIT, CARB REPAIR (Incl. 3-5 & 10-18) HUS-530035269
...
20
SPRING-METERING LEVER HUS-530035188
...
21
GASKET/DIAPHRAGM KIT (Incl. 3, 4, 12 & 13) HUS-530069844
...
21
GASKET/DIAPHRAGM KIT ZAMA (Incl. 3, 4, 12 & 13) HUS-530035270
...
22
SCREW, MOTOR COVER HUS-530035021
...
22
SERVICE TOOL, CARB Not Shown HUS-540068201
...
22
LIMITER CAP INSERTION TOOL Not Shown HUS-530031161
...
530069629
CARBURETOR HUS-545013503
