Husqvarna 140 Chain Saw

Model: 140

Back To Assemblies

Save Part Not Listed?

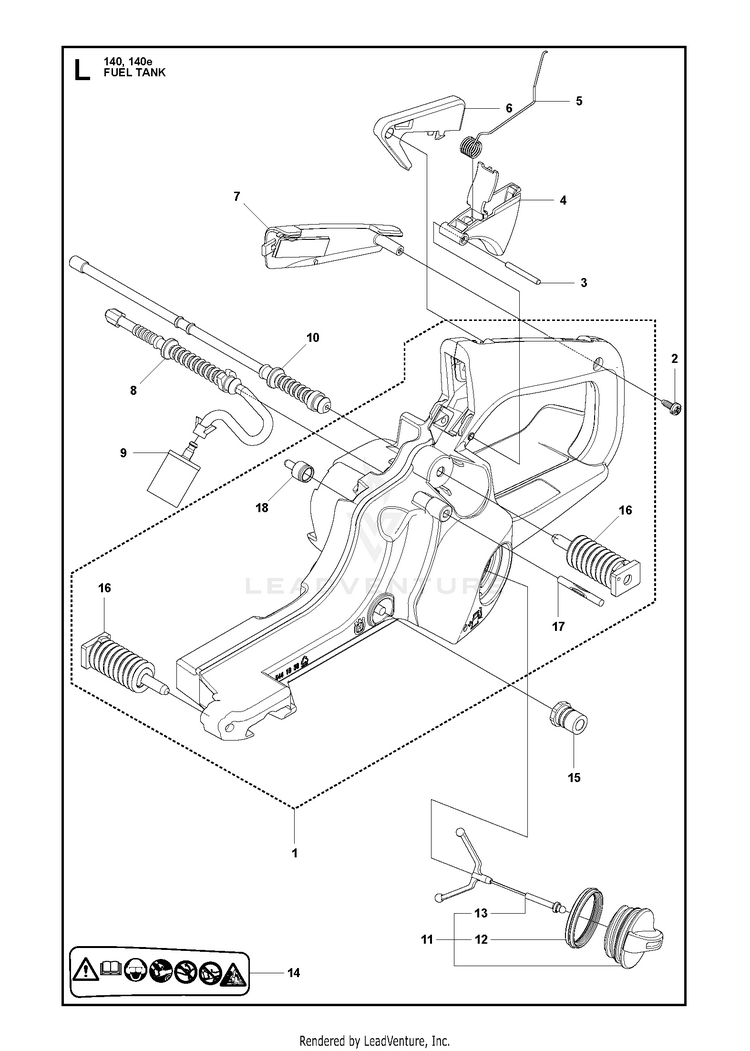

product name

FUEL TANK

...
...
4
THROTTLE CONTROL HUS-544968501
...
3
PIN HUS-720182520
...
5
SPRING HUS-544099901
...
13
TANK LOCK HUS-503578901
...
10
RETURN HOSE HUS-577535101
...
15
LATERAL SUPPORT HUS-501007601
...
16
ANTIVIBRATION ELEMENT HUS-504795601
...
2
SCREW HUS-503212810
...
6
TRIGGER LOCKOUT GREY HUS-579239401
...
7
HANDLE INSERT HUS-544284901
...
1
FUEL TANK HUS-544193811
...
11
ASSY TANK CAP GREY HUS-544111203
...
14
LABEL HUS-544375001
...
17
GROOVED PIN HUS-721126339
...
9
KIT FUEL FILTER HUS-591375401
...
12
SEALING HUS-589241101
...
18
FUEL TANK VENT HUS-501152901
...
8
FUEL HOSE HUS-544128604
