Husqvarna 137 e (2006-12) Chain Saw

Model: 137 e (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

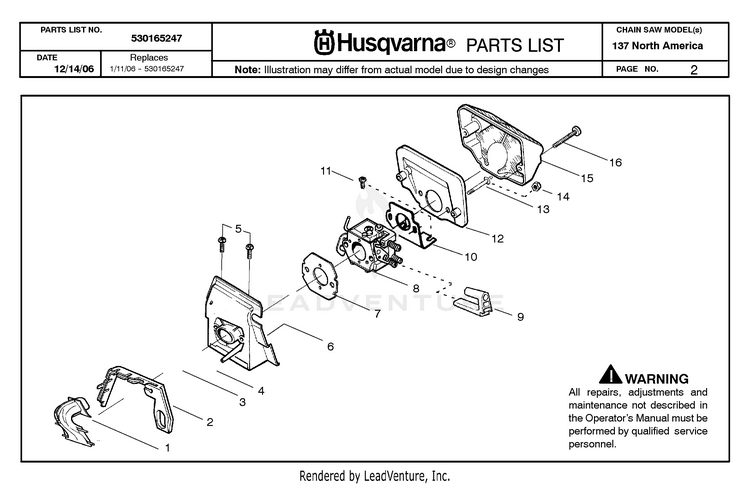

CARBURETOR & AIR FILTER

...
...
5
SCREW HUS-530015814
...
9
GROMMET HUS-530035587
...
16
SCREW HUS-530015899
...
6
CARB ADAPTOR HUS-530037465
...
4
IMPULSE PIPE HUS-530053435
...
3
INTAKE PIPE HUS-530029814
...
10
PLATE HUS-530047767
...
14
NUT 5M HUS-530016008
...
11
SCREW HUS-530015896
...
8
CARBURETOR ZAMA W-29 HUS-530035607
...
12
AIR FILTER (BOTTOM) HUS-530036582
...
2
TURBO CLEAN SEAL HUS-530019203
...
1
INTAKE HORN HUS-530029813
...
7
GSKT,CARB 36/41 HUS-530019172
...
13
STUD-CARBURETOR HUS-530015968
...
15
AIR FILTER HUS-530029811
