product name

Husqvarna 137 e (2006-12) Chain Saw

Model: 137 e (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

CRANKCASE

...
...
11
OIL TUBE HUS-545033501
...
29
SCREW M5-0.8X35M TAP HUS-530016037
...
13
HEATSHIELD, LOWER HUS-530055174
...
17
OIL TANK GASKET HUS-530019228
...
24
CLIP HUS-530015922
...
30
OIL CAP HUS-501765602
...
23
LIMITER COVER HUS-530052428
...
15
BAR NUT HUS-530015917
...
19
BAR BOLT 36/41 HUS-530015877
...
14
SCREW HUS-530015896
...
25
CHOKE GUIDE 36/41 HUS-530029830
...
20
SCREW HUS-530015878
...
18
PLATE,BAR MOUNT HUS-530036043
...
22
SCREW HUS-530015893
...
12
CLIP-U HUS-530055322
...
21
CHAIN CATCHER 36/41 HUS-530029850
...
26
CHOKE 36/41 HUS-530029831
...
27
KIT ASSY CHASSIS HUS-530071991
...
16
BAR PLATE HUS-530047855
...
28
CLIP HUS-530015922

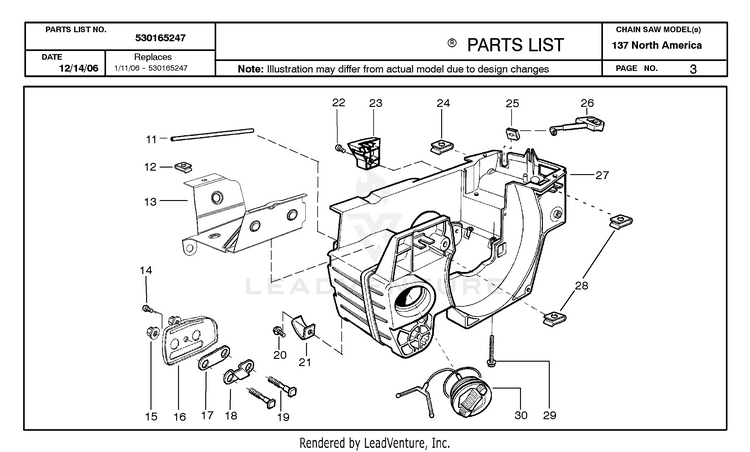

Schematic Image Zoomed
