Husqvarna 137 e (2004-10) Chain Saw

Model: 137 e (2004-10)

Back To Assemblies

Save Part Not Listed?
product name

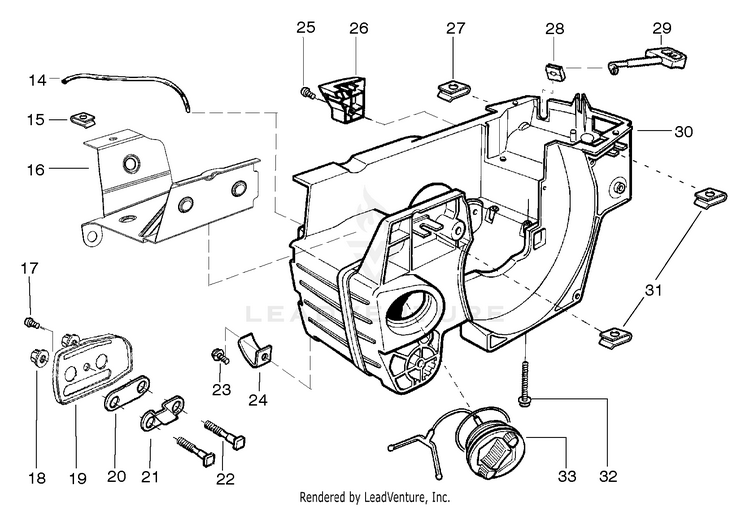

Oil Pump/Crankcase/Tank

...
...
14
OIL TUBE HUS-545033501
...
15
CLIP-U HUS-530055322
...
16
HEATSHIELD, LOWER HUS-530055174
...
17
SCREW (optional) HUS-530015896
...
18
BAR NUT HUS-530015917
...
19
BAR PLATE HUS-530047855
...
20
OIL TANK GASKET HUS-530019228
...
21
PLATE,BAR MOUNT HUS-530036043
...
22
BAR BOLT 36/41 HUS-530015877
...
23
SCREW HUS-530015878
...
24
CHAIN CATCHER 36/41 HUS-530029850
...
25
SCREW HUS-530015893
...
26
LIMITER COVER HUS-530052428
...
27
CLIP HUS-530015922
...
28
CHOKE GUIDE 36/41 HUS-530029830
...
29
CHOKE 36/41 HUS-530029831
...
30
Kit - Chassis Ass'y. HUS-53007199101
...
31
CLIP HUS-530015922
...
32
SCREW M5-0.8X35M TAP HUS-530016037
...
33
OIL CAP HUS-501765602
