Husqvarna 1365 GN (2003-07) Generator

Model: 1365 GN (2003-07)

Back To Assemblies

Save Part Not Listed?
product name

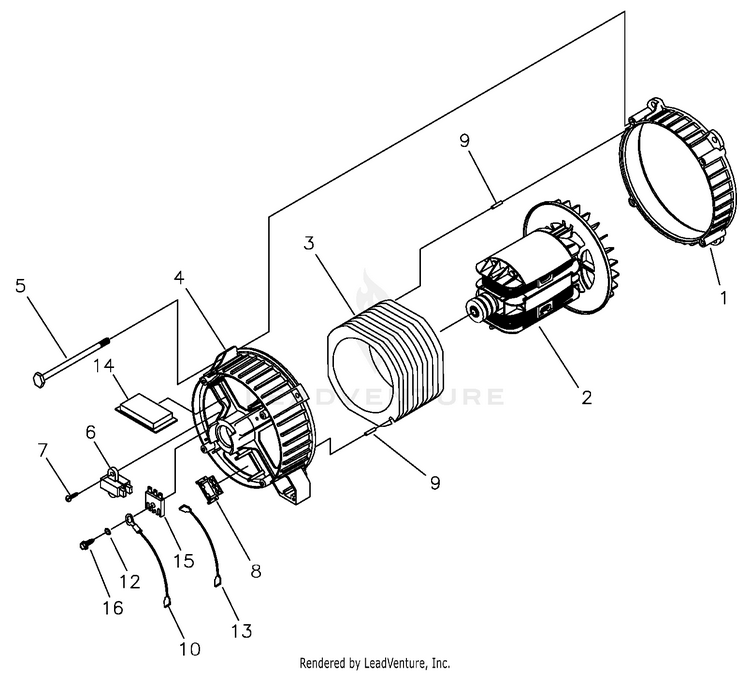

Alternator

...
...
1
ADAPTER, Mounting,Alternator HUS-186059GS
...
2
ROTOR HUS-192919GS
...
3
STATOR HUS-192920AGS
...
4
RBC, (with O-Ring, p/n 189197GS) HUS-193336GS
...
5
SCREW HUS-86308HGS
...
6
ASSY, Holder, Brush HUS-66386GS
...
7
SCREW HUS-66849GS
...
8
RECEPTACLE, 6 pin HUS-22694GS
...
9
PIN, Roll HUS-81917GS
...
10
ASSY,Wire, Ground HUS-191051AGS
...
12
WASHER HUS-23762GS
...
13
WIRE, Ground HUS-192403XGS
...
14
REGULATOR,Voltage,AVR HUS-189769GS
...
15
RECTIFIER HUS-65795GS
...
16
SCREW HUS-66849AGS
