Husqvarna 1365 GN (2003-07) Generator

Model: 1365 GN (2003-07)

Back To Assemblies

Save Part Not Listed?
product name

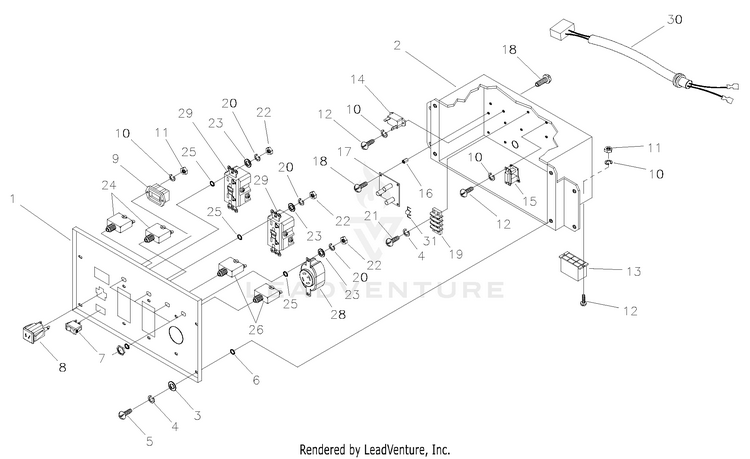

Control Panel

...
...
1
PANEL, Control HUS-B191714GS
...
2
BOX, Control Panel HUS-B192836GS
...
3
WASHER HUS-23897GS
...
4
WASHER, Lock HUS-49226GS
...
5
SCREW HUS-91526GS
...
6
WASHER HUS-22447GS
...
7
SWITCH, Rocker HUS-82538GS
...
8
OUTLET, 12VDC, Snap HUS-90418GS
...
9
METER, Hour HUS-77604GS
...
10
WASHER, Lock HUS-43182GS
...
11
NUT HUS-51714GS
...
12
SCREW HUS-43181GS
...
13
HOUSING, Receptacle HUS-22694GS
...
14
BREAKER, Circuit HUS-87962GS
...
15
TRANSFORMER, Idle Cnt HUS-84028GS
...
16
STANDOFF, Hex HUS-64525GS
...
17
PCB, Idle Control HUS-189367GS
...
18
SCREW HUS-64526GS
...
19
STRIP,Terminal HUS-193077GS
...
20
WASHER, Lock HUS-22264GS
...
21
SCREW HUS-75477GS
...
22
NUT HUS-51715GS
...
23
WASHER HUS-43180GS
...
24
BREAKER, Circuit HUS-75207GS
...
25
WASHER HUS-23365GS
...
26
BREAKER, Circuit HUS-75207PGS
...
27
JUMPER,Terminal Block HUS-193095GS
...
28
OUTLET, 120/240V, 30A HUS-43437GS
...
29
OUTLET, 120V, 20A, Duplex. GFCI HUS-80409GS
...
30
HARNESS,Wire HUS-189502GS
