Husqvarna 136 LiHD50 (2012-08) Hedge Trimmers/Pole Hedge Trimmers

Model: 136 LiHD50 (2012-08)

Save
 Part Not Listed?Part Not Listed?
product name

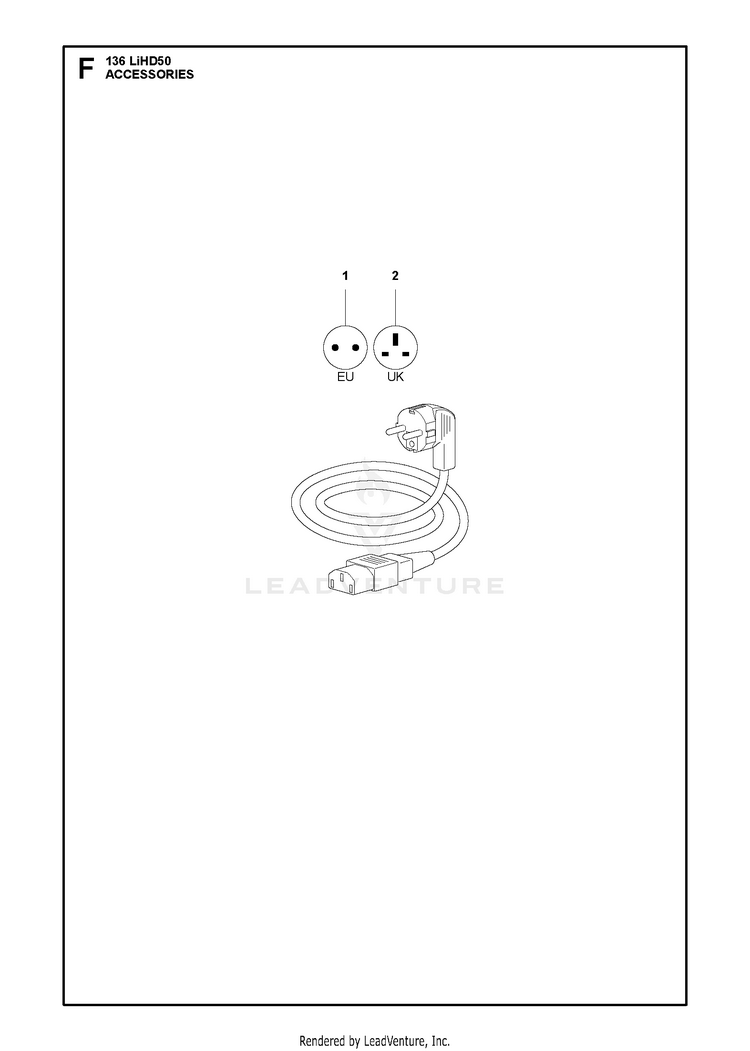

*Accessories

...
...
1
MAIN CABLE HUS-578081901
...
2
CABLE HUS-579130601

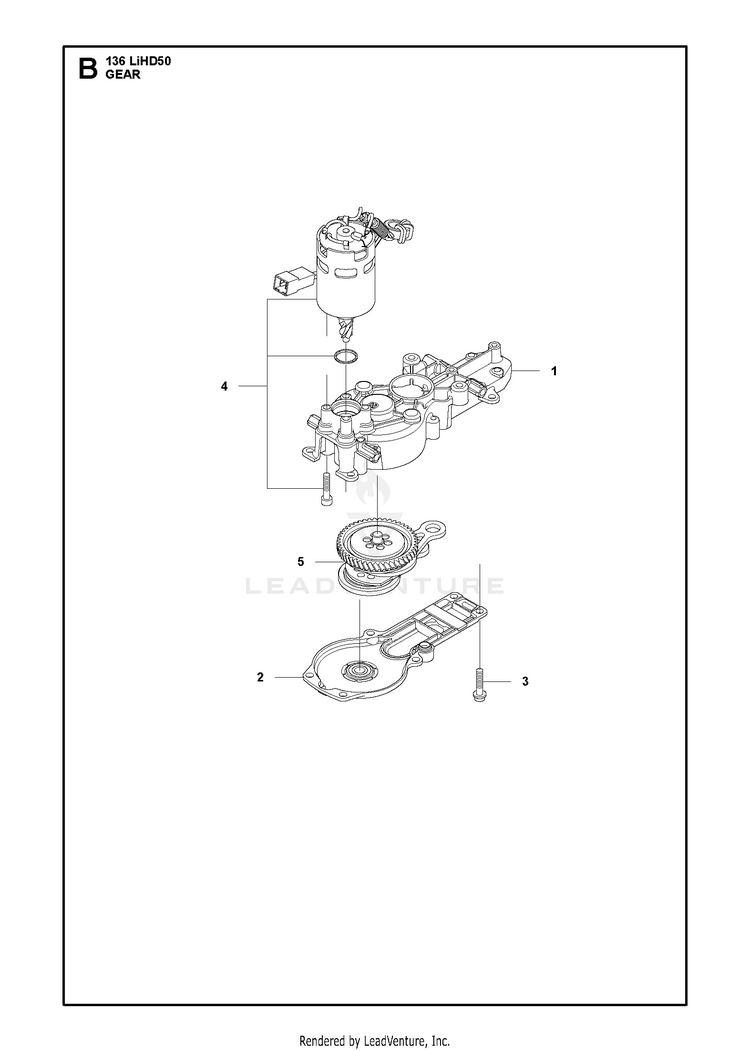

BEVEL GEAR

...
...
1
HUS-577835201
...
2
BOTTOM PLATE ASSY HUS-577834501
...
3
SCREW HUS-576033001
...
4
MOTOR HUS-581274201
...
5
HUS-581247701

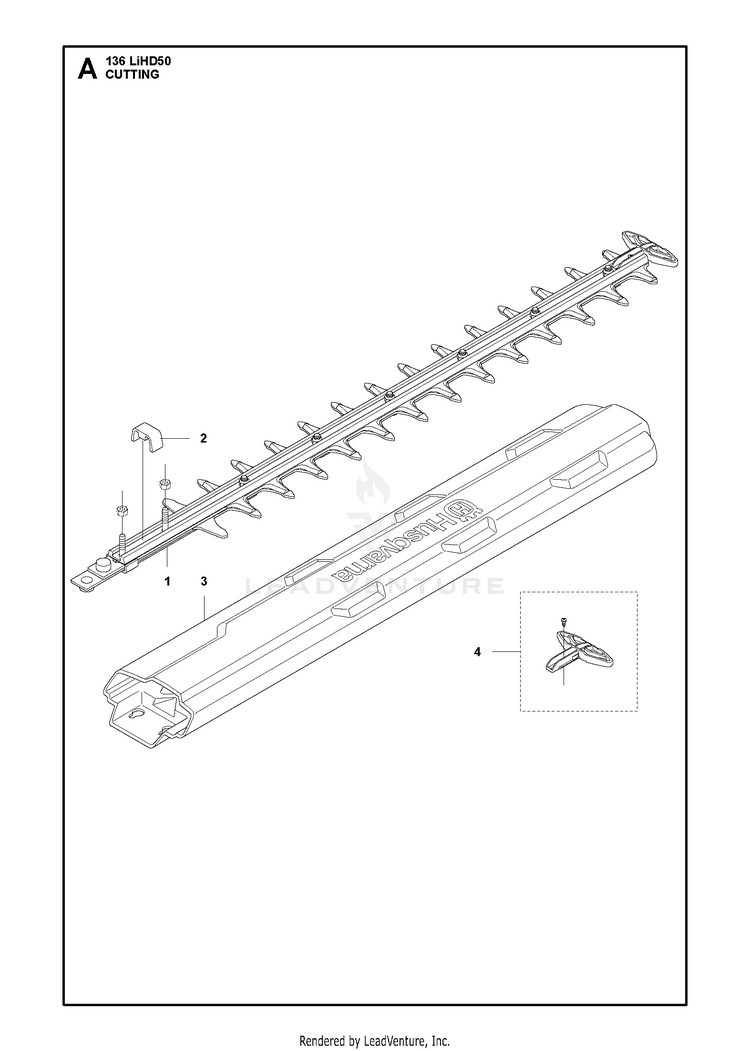

CUTTING BLADE

...
...
1
BLADE ASSY HUS-577839001
...
2
GASKET HUS-578372201
...
3
BLADE SHEATH HUS-577950201
...
4
PROTECTION HUS-581279601

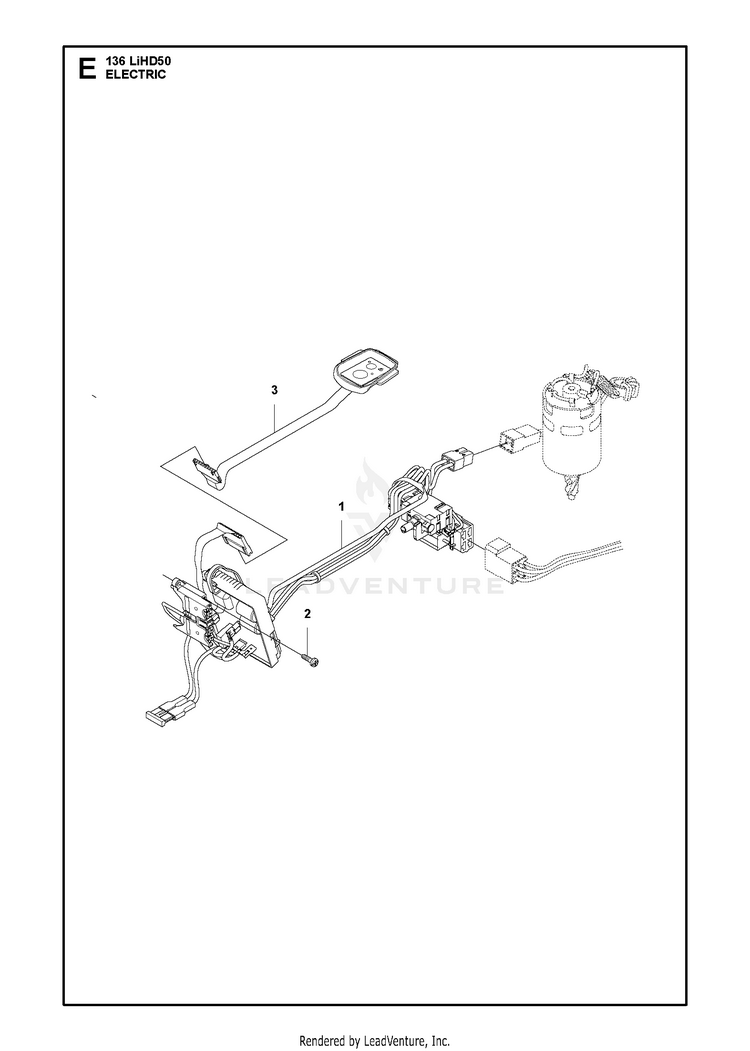

ELECTRICAL

...
...
1
HARNESS ASSY HUS-578093801
...
2
SCREW HUS-503212813
...
3
KEYPAD ASSY HUS-578103101

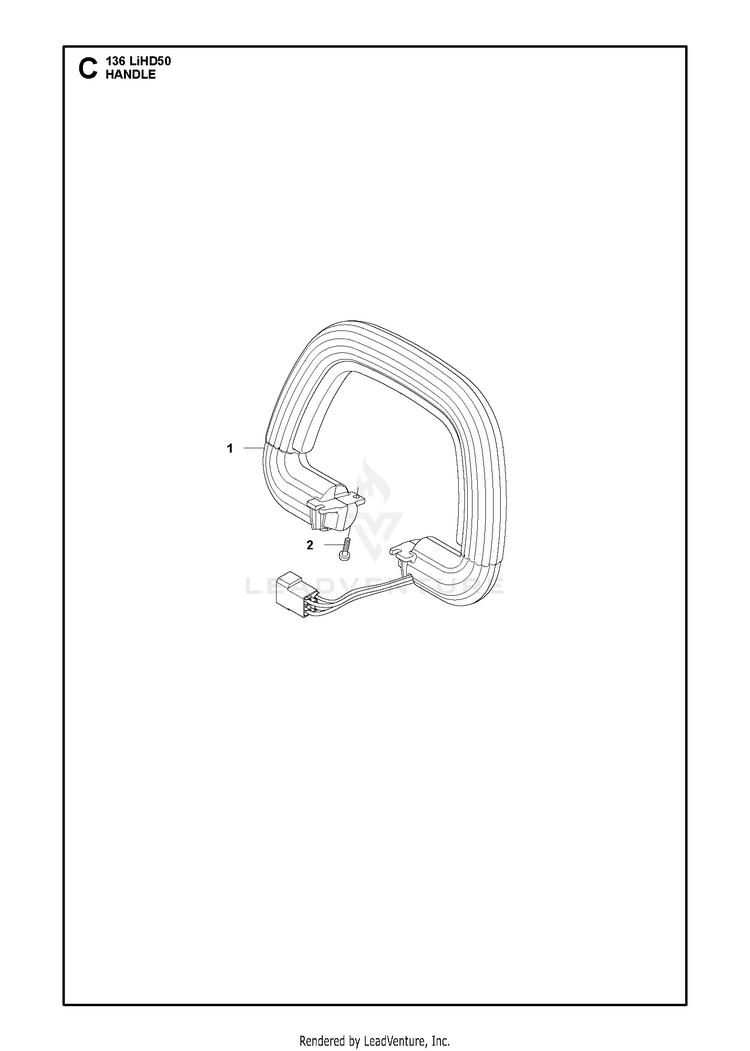

HANDLE

...
...
1
FRONT HANDLE ASSY HUS-577917801
...
2
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901

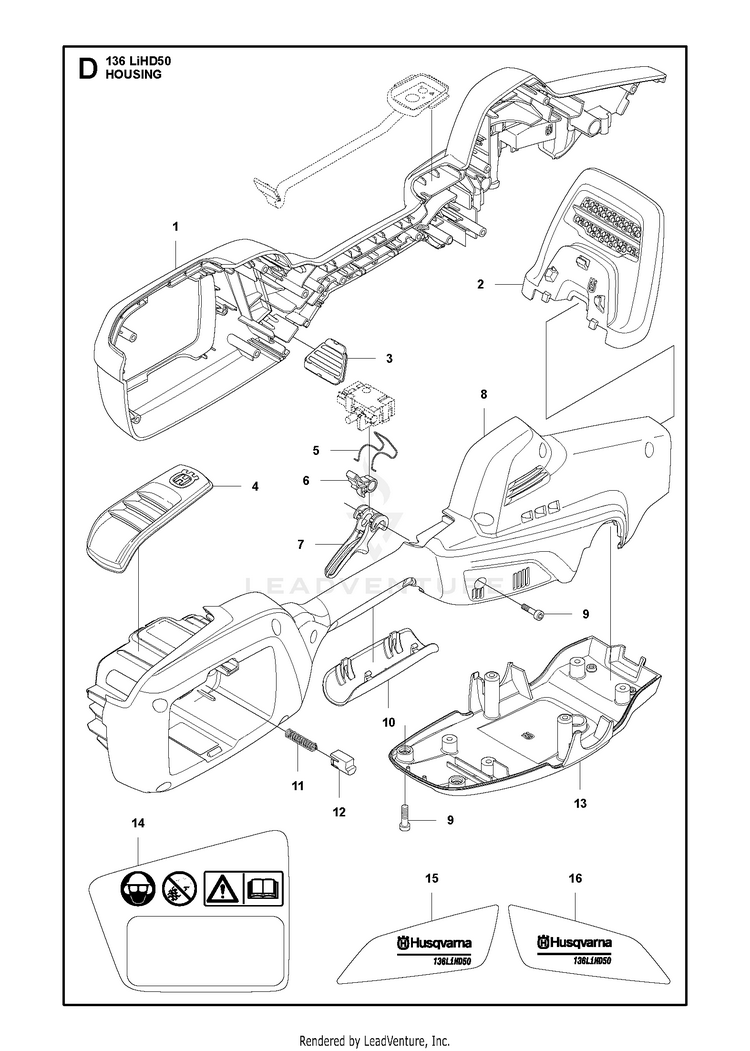

HOUSING

...
...
1
HUS-578069201
...
2
HANDGUARD HUS-577729901
...
3
COVER AIR INLET HUS-577964901
...
4
COVER HUS-577014101
...
5
SPRING HUS-578413201
...
6
LEVER HUS-578413301
...
7
LEVER HUS-578413101
...
8
HUS-578069101
...
9
SCREW ITXSCT PW4.2X18 10.9 ZN HUS-580292901
...
10
HANDLE SHELL HUS-577722301
...
11
SPRING PUSH OUT HUS-585480001
...
12
PUSH BUTTON HUS-577996601
...
13
SKID PLATE, FRONT HUS-578068901
...
14
TYPE PLATE HUS-578004801
...
15
LABEL HUS-578789101
...
16
LABEL HUS-578789201
...
...
...
...
...
