Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?
product name

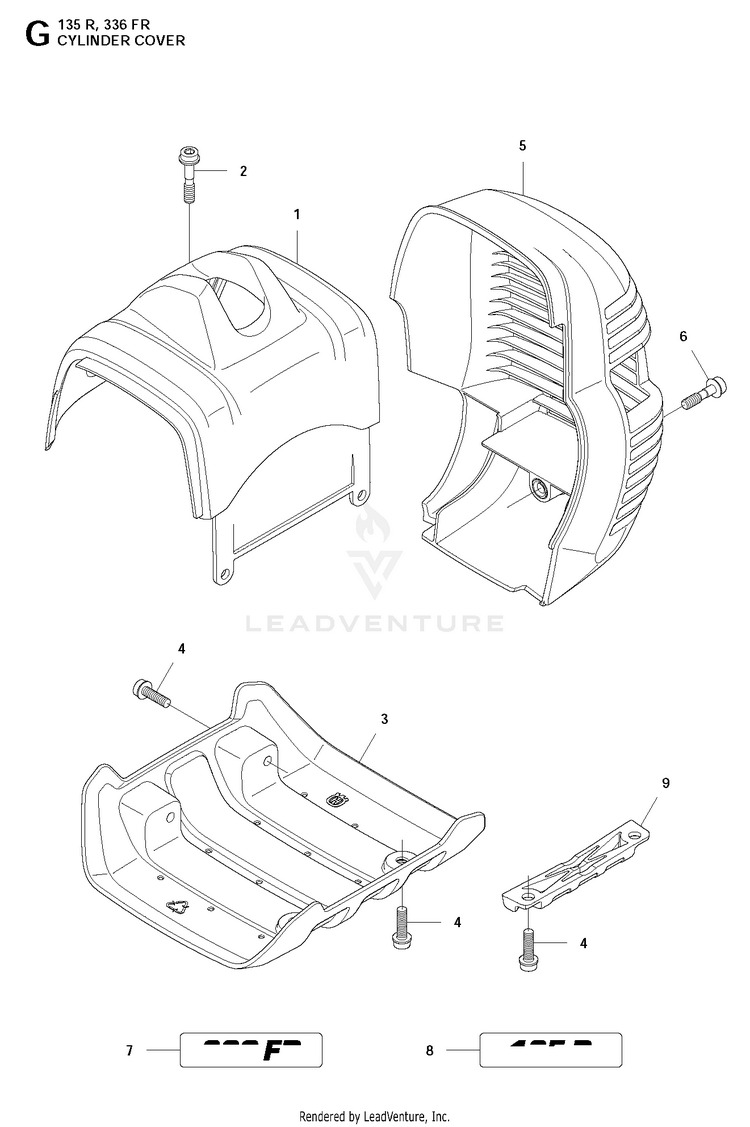

CYLINDER COVER

...
...
4
SCREW IHSCFM HUS-503200302
...
3
PROTECTIVE PLATE 336 FR HUS-575865701
...
7
LABEL 336 FR HUS-576998614
...
1
CYLINDER COVER Spare part with Captive Screw HUS-575865002
...
2
SCREW IHSCFMO Captiv Screw HUS-573994305
...
8
LABEL 135 R HUS-576998615
...
9
DAMPER 135 R HUS-577231101
...
5
MUFFLER GUARD Spare part with Captive Screw HUS-575864801
...
6
SCREW IHSCFMO Captiv Screw HUS-574477003
