Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?
product name

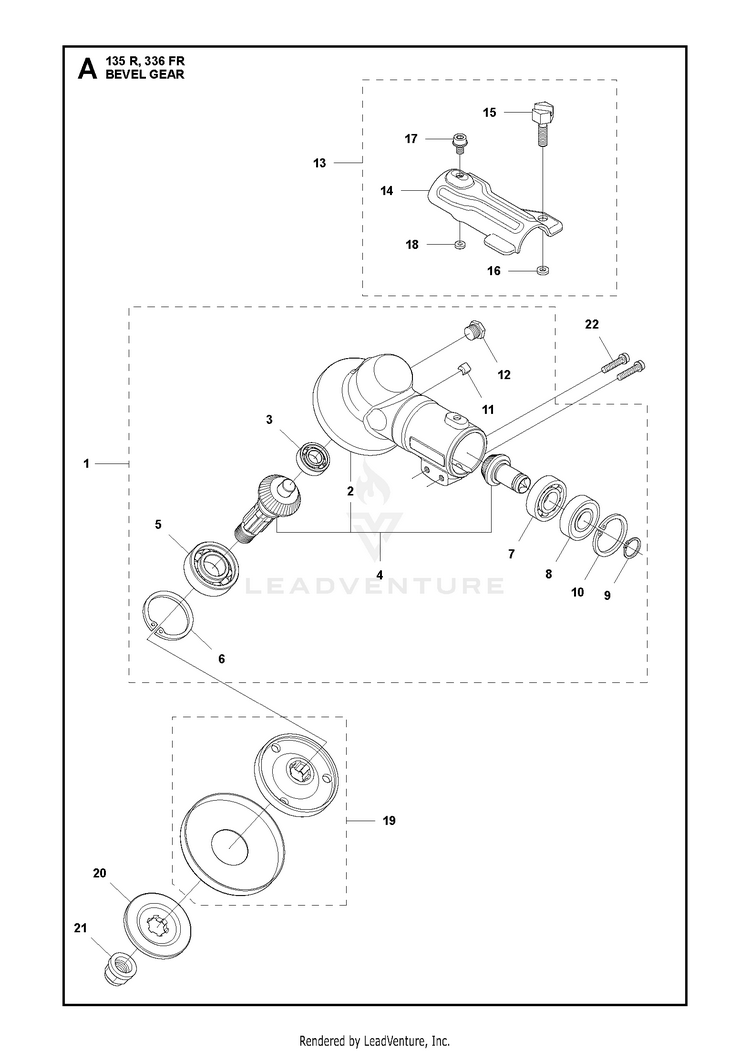

BEVEL GEAR

...
...
22
SCREW HUS-503200325
...
18
LOCKING NUT HUS-574039501
...
2
GEAR CASE HUS-537295902
...
4
SPARE PARTS KIT HUS-505133301
...
15
SCREW HUS-537189501
...
9
SEEGER CLIP HUS-735311400
...
8
BALL BEARING HUS-738210112
...
3
BALL BEARING 24X9X1/609ZR HUS-738219900
...
21
NUT BLADE HUS-502291101
...
10
RETAINING RING SGH 28 HUS-735312810
...
17
SCREW M5 X 10 HUS-503200710
...
12
PLUG HUS-503201501
...
13
CLAMP HUS-574306803
...
19
CARRIER HUS-537351402
...
16
LOCKNUT M6 HUS-732211601
...
7
BALL BEARING HUS-738210110
...
5
BALL BEARING HUS-503252801
...
20
FLANGE HUS-537343502
...
1
GEAR COMPLETE HUS-544216401
...
6
RETAINING RING HUS-735313110
...
11
MAGNET HUS-537147401
...
14
CLAMP HUS-574306803
