Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?
product name

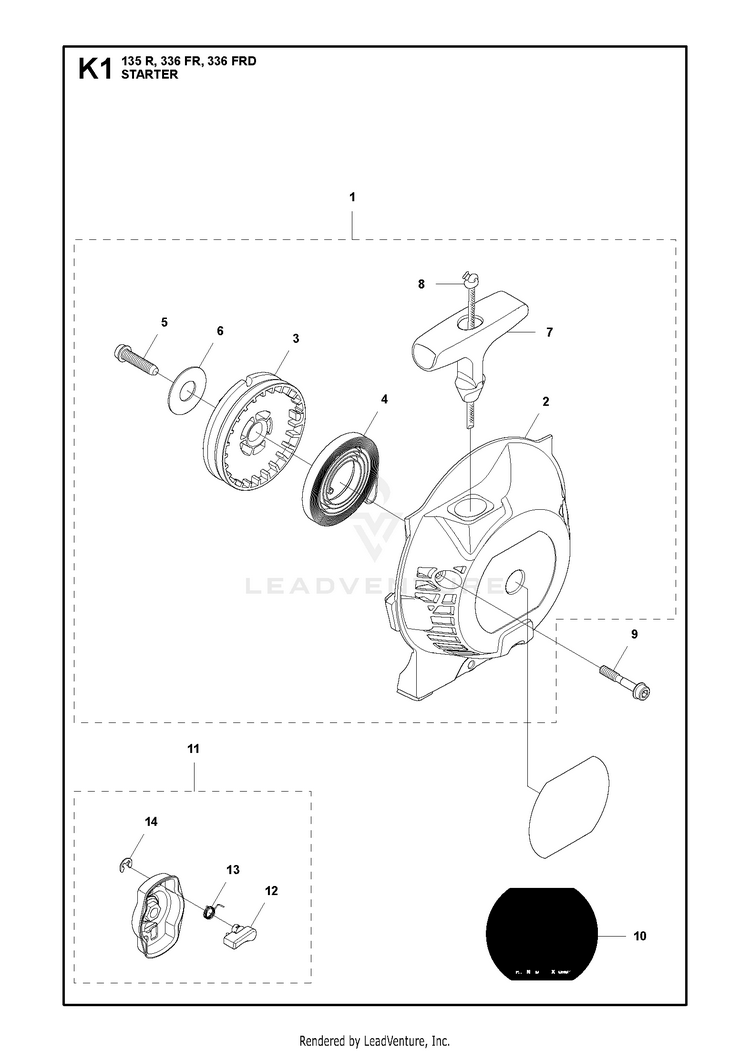

STARTER

...
...
3
STARTER PULLEY HUS-537325003
...
12
STARTER PAWL HUS-544011401
...
8
STARTER ROPE HUS-505305125
...
4
STARTER SPRING HUS-503859901
...
7
HANDLE HUS-537232501
...
5
SCREW HUS-503218876
...
2
STARTER HOUSING Spare part adapted for captive screw HUS-575840901
...
9
SCREW IHSCFMO Captive screw HUS-573994305
...
11
STARTER PAWL BRIDGE HUS-503873305
...
13
SPRING HUS-503873601
...
14
E-RING 4 HUS-735310820
...
10
DECAL HUS-577223601
...
6
WASHER HUS-503230080
...
1
STARTER ASSY HUS-575840801
