Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?

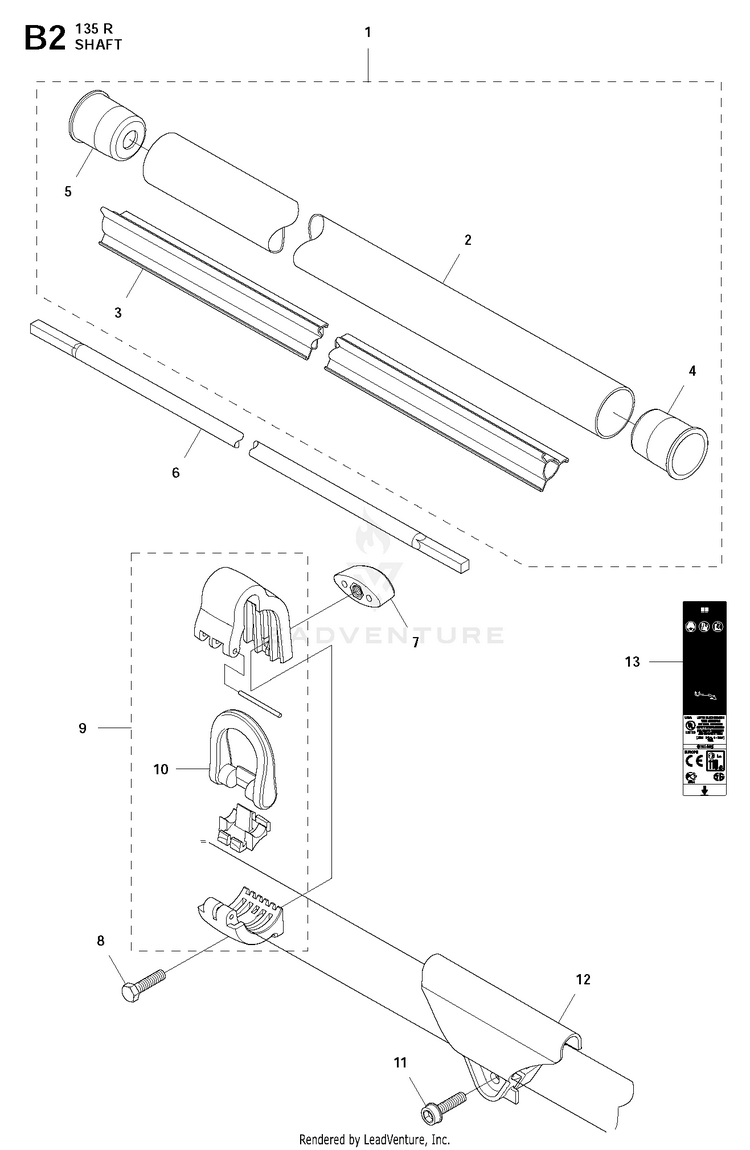

product name

SHAFT

...
...
13
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
5
PLUG HUS-537360201
...
10
HOOK HUS-537350101
...
4
PLUG HUS-537360201
...
12
CABLE HOLDER HUS-537376101
...
7
KNOB HUS-537130403
...
3
GUIDE HUS-537313901
...
9
NEEDS DESCRIPTION HUS-505161001
...
2
TUBE HUS-501919701
...
11
SCREW HUS-503217516
...
8
SCREW M6S 5X20 HUS-725233151
...
6
SHAFT HUS-544183201
...
1
TUBE HUS-501919701
Schematic Image Zoomed
