Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?
product name

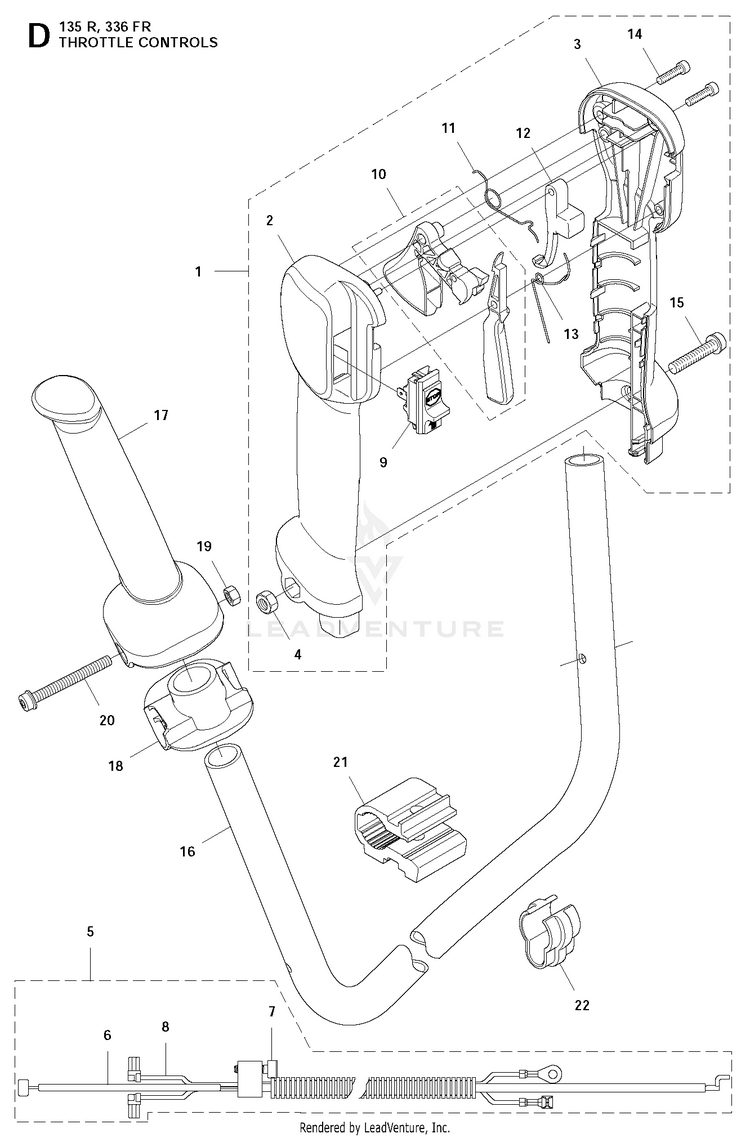

THROTTLE CONTROLS

...
...
12
STARTER THROTTLE LOCK HUS-537160703
...
5
WIRING KIT COMPLETE HUS-537359602
...
8
SHORT CIRCUIT CABLE HUS-503878507
...
4
NUT HUS-503221013
...
6
THROTTLE WIRE HUS-537377801
...
11
SPRING HUS-537174201
...
13
SPRING HUS-537174301
...
20
SCREW HUS-503200245
...
18
BRACKET HUS-537172901
...
1
HANDLE ASSY 336FR HUS-537424507
...
17
HANDLE HUS-537172801
...
14
SCREW HUS-503216618
...
2
HANDLE HARD GRIP, GREY HUS-537160203
...
22
GROMMET HUS-502211201
...
3
HANDLE HARD GRIP, GREY HUS-537160301
...
16
HANDLE HUS-502199503
...
21
CLAMP HUS-544020901
...
10
THROTTLE CONTROL HUS-506497701
...
9
STOP BUTTON HUS-537419001
...
19
NUT HUS-731231401
...
3
HANDLE SOFT GRIP, GREY + BLACK TPE HUS-537160302
...
2
HANDLE HALF LEFT SOFT GRIP, GREY + BLACK TPE HUS-537160209
...
7
SCREW HUS-503216618
...
15
SCREW IHSCFM HUS-503200782
