Husqvarna 135 R Brushcutter/Clearing Saw

Model: 135 R

Back To Assemblies

Save Part Not Listed?
product name

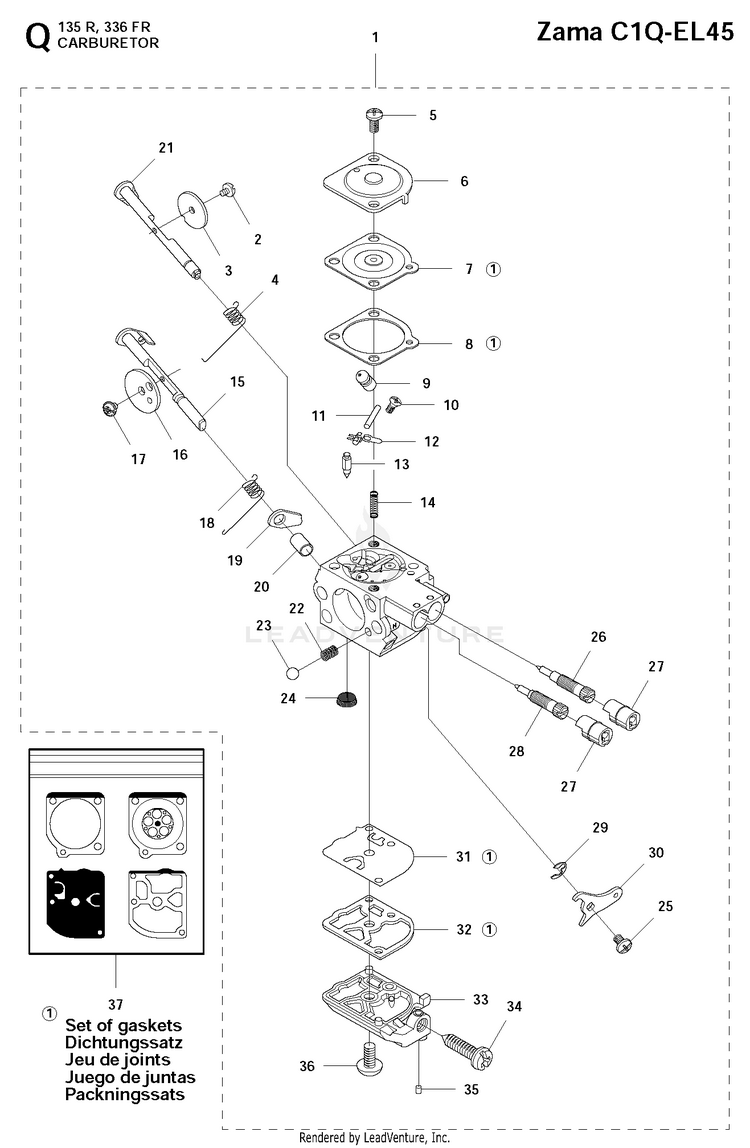

CARBURETOR

...
...
6
COVER HUS-503974301
...
17
SCREW HUS-503481801
...
37
GASKET KIT (ZAMA GND39) Set of gaskets HUS-531004552
...
28
SCREW HUS-537387501
...
20
SLEEVE HUS-544427001
...
8
GASKET HUS-537020401
...
15
SHAFT ASSY HUS-501327101
...
10
SCREW HUS-503480101
...
9
JET HUS-537387301
...
16
CHOKE CAP HUS-537370301
...
22
SPRING HUS-537012601
...
7
DIAPHRAGM HUS-504105601
...
14
SPRING HUS-537273401
...
23
BALL HUS-537012501
...
3
THROTTLE HUS-537417201
...
24
FUEL INLET SCREEN HUS-503481301
...
36
SCREW HUS-503479601
...
12
LEVER HUS-503665901
...
27
LIMITER CAP KIT HUS-537417001
...
13
INLET NEEDLE HUS-503479701
...
31
PUMP DIAPHRAGM HUS-537020001
...
11
PIN HUS-537020801
...
1
CARBURETOR Zama C1Q-EL45 HUS-575729001
...
2
SCREW HUS-503479201
...
5
SCREW HUS-503480501
...
18
SPRING HUS-544372601
...
29
CLIP HUS-537385201
...
21
SHAFT ASSY HUS-504102701
...
19
LEVER HUS-544372501
...
26
IDLE SCREW HUS-537416901
...
32
GASKET HUS-537020101
...
34
SCREW HUS-537020701
...
33
COVER HUS-537020201
...
4
RETURN SPRING HUS-544372401
...
25
SCREW HUS-503479001
...
30
THROTTLE LEVER HUS-576270201
...
35
PLUG HUS-503481101
