product name

Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?
product name

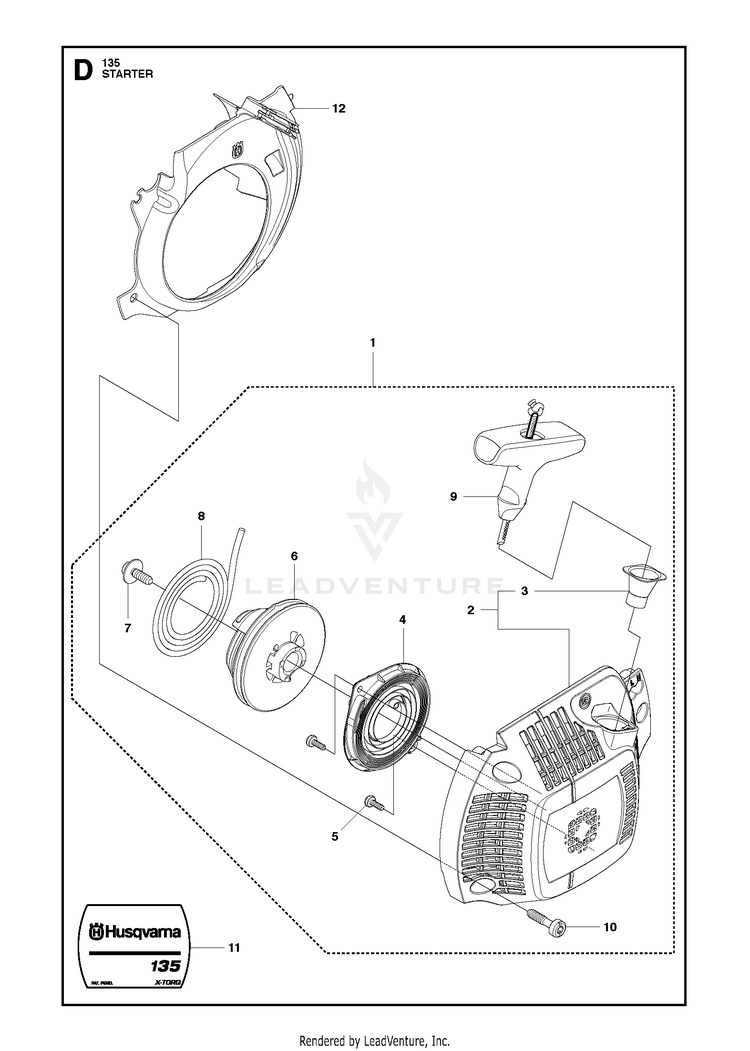

STARTER

...
...
7
SCREW Screw IHSCT HUS-503217716
...
1
STARTER ASSY Starter assy, std HUS-504597002
...
10
SCREW Screw CIHSCTO HUS-503217321
...
12
COOLING AIR CONDUCTOR Cooling air conductor HUS-544197102
...
11
LABEL STARTER Label, Starter HUS-504546803
...
9
HANDLE Starter handle HUS-537232501
...
4
SPRING CASSETTE ASSY Spring cassette assy HUS-540057502
...
2
HOUSING STARTER Starter, Std HUS-504596901
...
8
STARTER ROPE Starter cord HUS-505305125
...
3
SLEEVE Reinforcement sleeve HUS-537283201
...
5
SCREW Screw CCRPANT HUS-503212810
...
6
STARTER PULLEY Starter pulley HUS-579427901
