Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?
product name

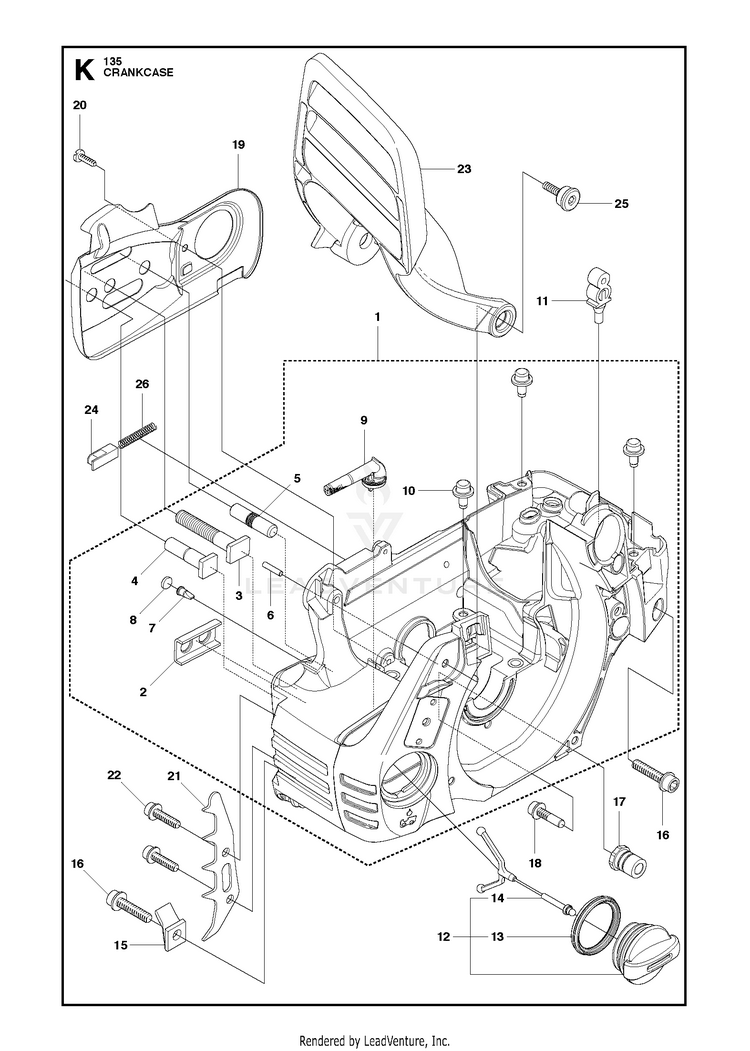

CRANKCASE

...
...
19
CHAIN GUIDE PLATE Chain guide plate HUS-544284601
...
1
CRANKCASE ASSY Crankcase assy HUS-544932508
...
2
STIFFENING PLATE Stiffening plate HUS-503875802
...
4
BAR BOLT Bar bolt HUS-537334601
...
5
BAR BOLT Bar bolt HUS-544036401
...
22
SCREW Screw HUS-503217520
...
13
SEALING Gasket HUS-589241101
...
21
SPIKE INNER Spike inner HUS-544286501
...
26
LOCK SPRING Lock spring HUS-503436501
...
24
CATCH Catch HUS-503892401
...
25
SCREW Screw HUS-503893001
...
3
BAR BOLT Bar bolt HUS-503875402
...
18
SCREW IHSCFT Screw HUS-503215103
...
6
PIN Needle roller HUS-503240905
...
9
OIL SCREEN Oil screen HUS-544083301
...
11
DAMPNER Support HUS-597909701
...
10
GUIDE PEN Guide pin HUS-544331601
...
16
SCREW Screw HUS-503218876
...
14
TANK LOCK Holder HUS-503578901
...
23
HAND GUARD Hand guard HUS-544251501
...
8
SINTERED BRONZE FILTER Filter HUS-537403502
...
20
SCREW Screw HUS-503217010
...
15
CHAIN CATCHER Chain catcher pin HUS-503886301
...
12
ASSY TANK CAP GREY Tank cap assy HUS-544111203
...
7
VALVE-CHECK (DUCKBILL) Check valve HUS-530026119
...
17
LATERAL SUPPORT Lateral support HUS-501007601
