Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?

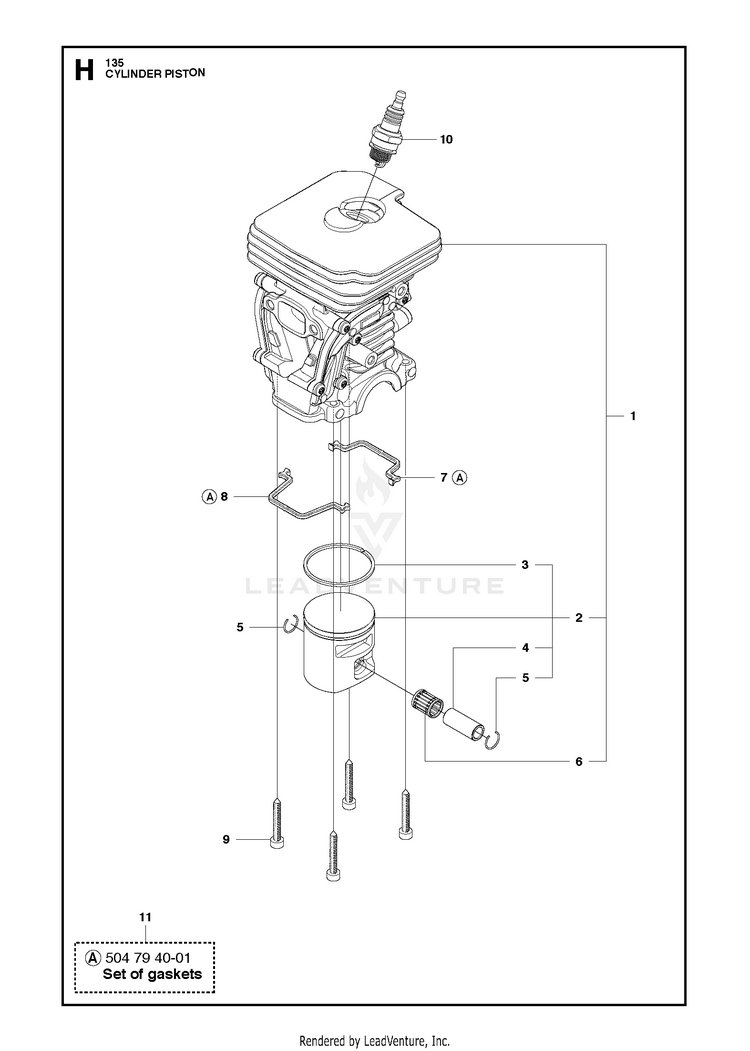

product name

CYLINDER PISTON

...
...
6
SUPPORT BUSHING Needle bearing HUS-503414101
...
1
Cylinder Cylinder assy HUS-504735105
...
9
SCREW MC6S 5X25 Screw HUS-725533355
...
3
PISTON RING Piston ring HUS-544405901
...
2
PISTON ASSY Piston assy HUS-502625007
...
4
PISTON PIN Piston pin HUS-544406001
...
7
GASKET Gasket, cylinder rear HUS-544396001
...
10
SPARK PLUG M14X1.25 NGK BPMR7A Spark plug HUS-503235111
...
11
GASKET SET Set of gaskets HUS-504794001
...
5
LOCKING RING Circlip HUS-737441000
...
8
GASKET Gasket, cylinder front HUS-544395901
