Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

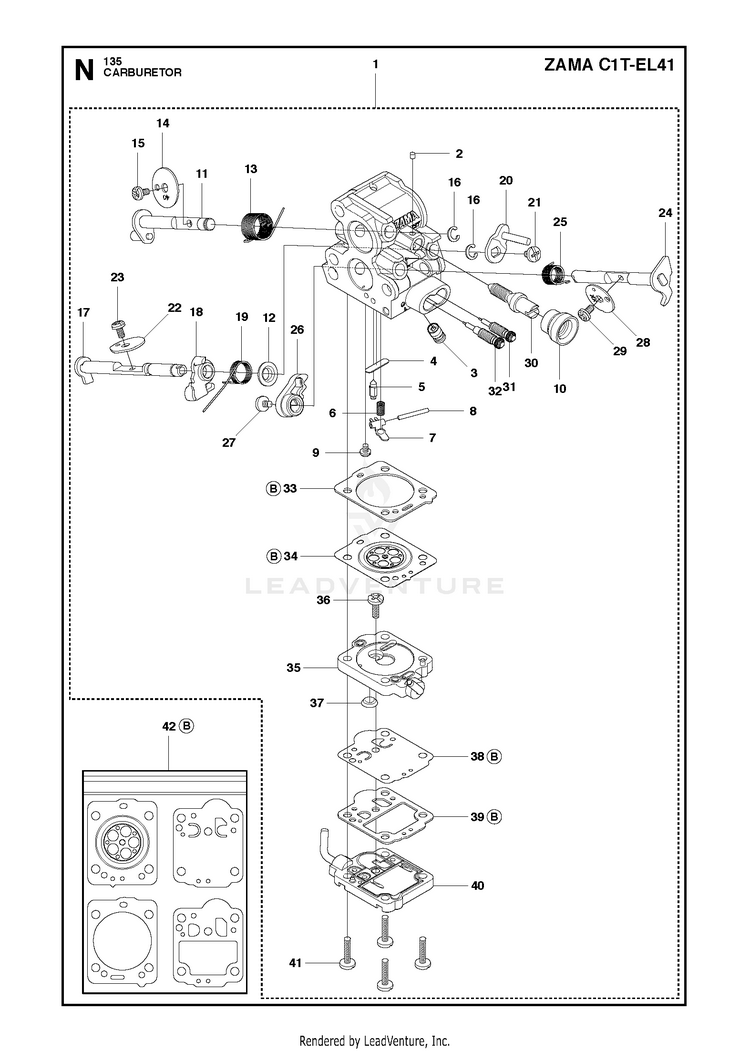

CARBURETOR

...
...
3
NOZZLE ASSY Nozzle assy HUS-504024001
...
1
CARBURETOR Zama C1T-EL41 HUS-531215501
...
9
SCREW Screw HUS-504024101
...
6
SPRING Spring HUS-537273401
...
23
SCREW Screw HUS-503481801
...
34
DIAPHRAGM Diaphragm HUS-504024501
...
19
SPRING Spring HUS-504028301
...
18
LEVER Lever HUS-540053701
...
4
PLUG Plug welch HUS-503535601
...
10
CAP ZAMA 0051034 Cap HUS-505535201
...
22
VALVE Valve HUS-504027401
...
24
THROTTLE SHAFT ASSY Shaft assy HUS-504026001
...
38
DIAPHRAGM Diaphragm HUS-504025601
...
36
SCREW Screw HUS-504028201
...
41
SCREW Screw HUS-504027801
...
32
SCREW Screw HUS-504028101
...
27
SCREW Screw HUS-503479001
...
35
BODY Body HUS-504024601
...
30
SCREW Screw HUS-504027301
...
17
CHOKE SHAFT ASSY Shaft assy HUS-504026201
...
21
SCREW Screw HUS-503479001
...
33
GASKET Gasket HUS-504024301
...
40
COVER Cover HUS-504025901
...
16
E RING Circlip HUS-504026701
...
37
STRAINER Strainer HUS-504025001
...
29
SCREW Screw HUS-503479201
...
7
LEVER Lever HUS-503665901
...
12
COLLAR ZAMA 005020 Collar HUS-505110701
...
8
PIN Pin retaning screw HUS-537020801
...
2
PLUG Piece HUS-503481101
...
26
LEVER Lever HUS-544983101
...
14
VALVE Valve HUS-504027501
...
20
LEVER Lever HUS-504026301
...
15
SCREW Screw HUS-503481801
...
11
SHAFT ASSY Shaft assy HUS-504026101
...
31
SCREW Screw HUS-504909201
...
42
KIT CARB GASKET Set of gaskets HUS-545008031
...
39
GASKET Gasket HUS-504025701
...
5
INLET NEEDLE Valve HUS-503479701
...
28
VALVE Valve HUS-504027601
...
13
SPRING Spring HUS-504028501
...
25
SPRING Spring HUS-504028401
