Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?
product name

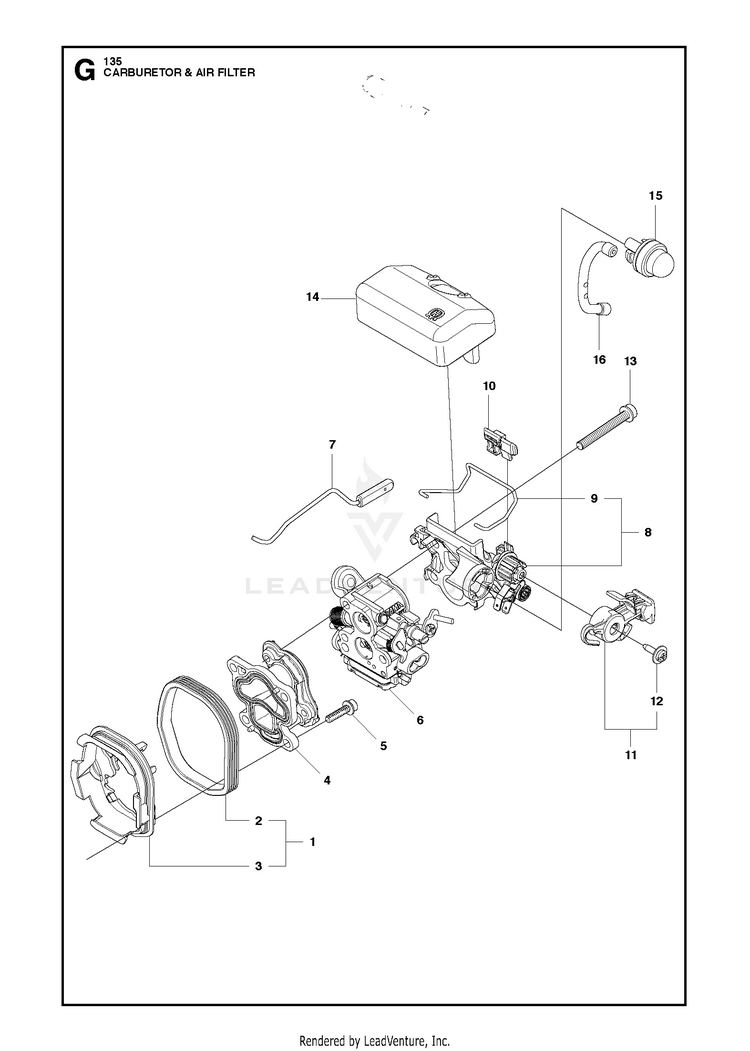

CARBURETOR & AIR FILTER

...
...
14
Air Filters Air filter assy (felt) HUS-599729402
...
5
SCREW Screw HUS-503200216
...
2
INSULATION WALL Insulation wall rubber HUS-504724701
...
15
AIR PURGE BUBBLE Air purge HUS-503936601
...
7
THROTTLE ROD ASSY Throttle rod assy HUS-544284401
...
6
CARBURETOR Carburettor HUS-531215501
...
14
Air Filters Air filter assy (44 micron) HUS-599729401
...
10
GUIDE Guide sliding shoe HUS-504712501
...
4
INLET PIPE FLEXIBLE Inlet pipe HUS-504201202
...
16
FUEL HOSE, PURGE Hose, airpurge suction HUS-534138001
...
1
INSULATION WALL Insulation wall assy HUS-504724701
...
9
SHACKLE Shackle HUS-544392601
...
13
SCREW Screw HUS-503200240
...
12
SCREW Screw HUS-544976601
...
3
INSULATION WALL Inulation wall plastic HUS-504724701
...
11
CONTROL Control assy HUS-544844302
...
8
ASSY FILTER HOLDER Filter holder assy HUS-544976402
