Husqvarna 135 Chain Saw

Model: 135

Back To Assemblies

Save Part Not Listed?
product name

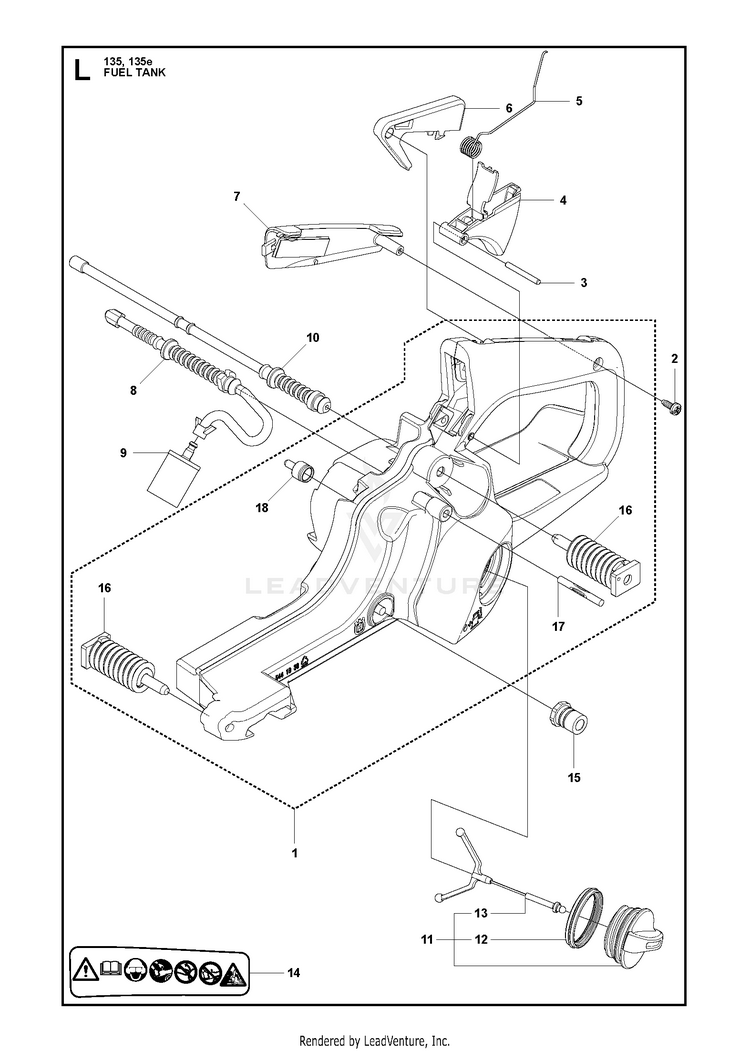

FUEL TANK

...
...
12
SEALING Gasket HUS-589241101
...
11
ASSY TANK CAP GREY Tank cap assy HUS-544111203
...
18
FUEL TANK VENT Fuel tank vent HUS-501152901
...
4
THROTTLE CONTROL Throttle control HUS-544968501
...
3
PIN Pin HUS-720182520
...
15
LATERAL SUPPORT Lateral support HUS-501007601
...
8
FUEL HOSE Fuel hose HUS-544128604
...
7
HANDLE INSERT Handle insert HUS-544284901
...
2
SCREW Screw HUS-503212810
...
1
FUEL TANK Fuel tank assy HUS-544193811
...
10
RETURN HOSE Return hose HUS-577535101
...
6
TRIGGER LOCKOUT GREY Throttle lockout HUS-579239401
...
16
ANTIVIBRATION ELEMENT Antivibration element HUS-504795601
...
17
GROOVED PIN Grooved pin HUS-721126339
...
13
TANK LOCK Holder HUS-503578901
...
9
KIT FUEL FILTER Filter mix HUS-591375401
...
5
SPRING Spring HUS-544099901
...
14
LABEL Decal warning HUS-544375001
