Husqvarna 133 (1981-12) Chain Saw

Model: 133 (1981-12)

Back To Assemblies

Save Part Not Listed?
product name

Ignition/Flywheel

...
...
725529155
SCREW MC6S 4X12 HUS-725529155
...
503230001
WASHER 4.2X9 HUS-503230001
...
501633301
IGNITION COIL HUS-501812801
...
504885401
HUS-504885401
...
501485601
SPARK PLUG CONN. KIT HUS-501485402
...
501629301
HUS-501629301
...
501492701
COVER HUS-501492703
...
501633701
HUS-501633701
...
501633801
SWITCH ON/OFF HUS-503717901
...
501216801
HUS-501216801
...
501633201
HUS-501633201
...
501492403
GENERATOR HUS-501492403
...
501497601
SCREW HUS-501497601
...
501629001
FRONT HANDLE HUS-501629003
...
501629002
FRONT HANDLE G HUS-501629004
...
729222101
SCREW CSK B4X6 HUS-729222101
...
729245101
HUS-729245101
...
501634801
SPRING HUS-501634801
...
501673201
PAWL HUS-501673201
...
501679601
DRIVE PIN HUS-501679601
...
731231801
NUT HUS-731231801
...
501632901
HUS-501632901
...
735214650
HUS-735214650
...
725532955
SCREW MC6S 5X16 HUS-725532955
...
501632601
FLYWHEEL HUS-503730601
...
501632401
HUS-501632401
...
501485501
SPARK PLUG CONN. KIT HUS-501485402

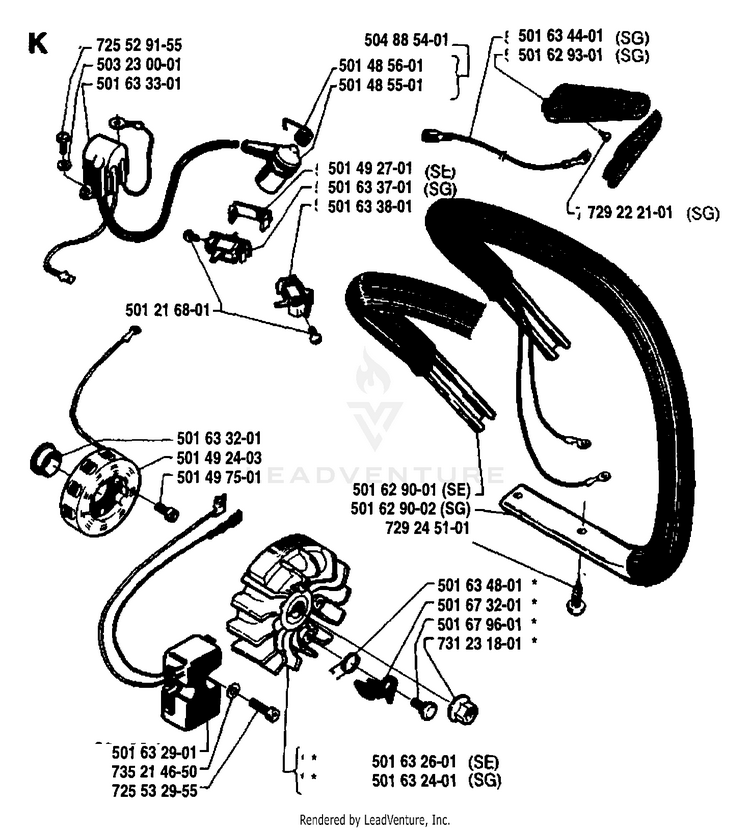

Schematic Image Zoomed
