Husqvarna 133 (1981-12) Chain Saw

Model: 133 (1981-12)

Back To Assemblies

Save Part Not Listed?
product name

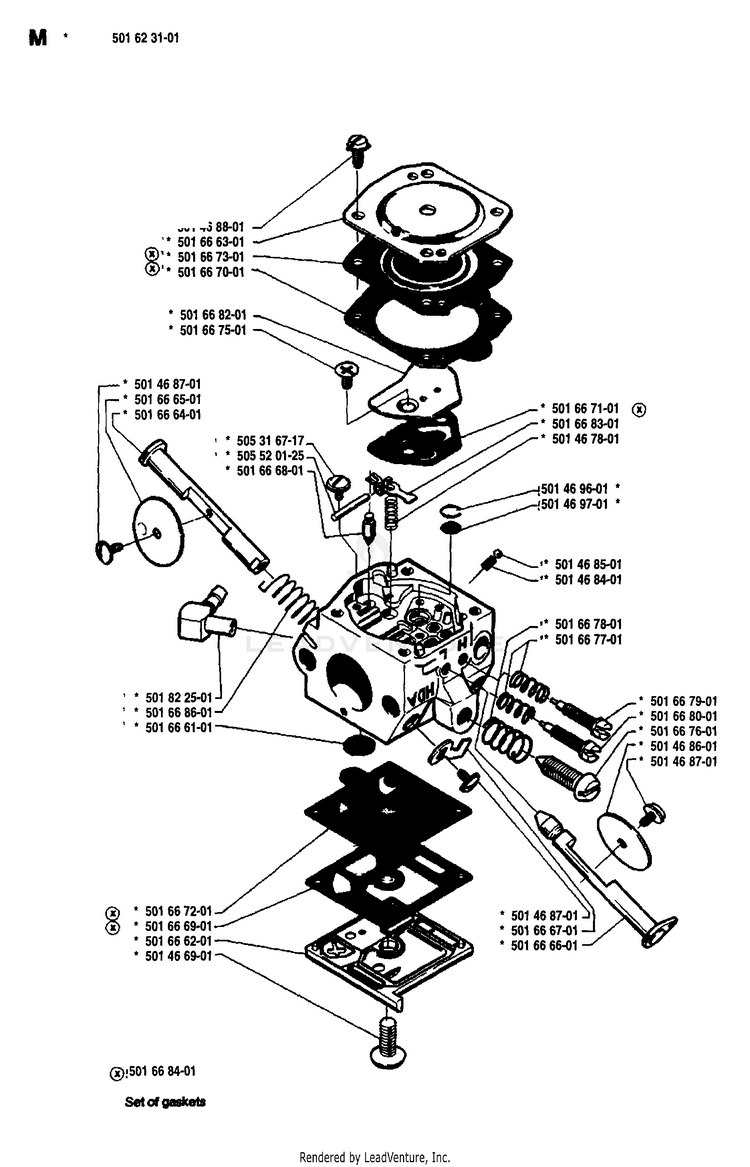

Carburetor Parts

...
...
501623101
HUS-501623101
...
501468801
SCREW HUS-503584601
...
501666301
COVER METERING DIAPHR. HUS-503176301
...
501667301
METERING DIAPHRAGM HUS-501667301
...
501667001
GASKET, METERING SIDE HUS-501667001
...
501468701
SCREW HUS-501468701
...
501666501
THROTTLE FLAP HUS-501666501
...
501666401
HUS-501666401
...
505616717
HUS-505616717
...
505520125
FULCRUM PIN HUS-505520125
...
501666801
INLET NEEDLE HUS-503563401
...
501668201
HUS-501668201
...
501667501
HUS-501667501
...
501667101
REPAIR KIT DIAPHRAGM SET HUS-501668401
...
501668301
LEVER HUS-501668301
...
501467801
SPRING HUS-501795901
...
501469601
HUS-501469502
...
501469701
CHECK VALVE SCREEN HUS-530035124
...
501468501
BALL HUS-501468501
...
501468401
SPRING HUS-501468401
...
501667801
IDLE SCREW SPRING HUS-530035121
...
501667701
SPRING HUS-501667701
...
501667901
HUS-501667901
...
501668001
HUS-501668001
...
501667601
Screw HUS-501667601
...
501468601
SHUTTER-CHOKE HUS-507430749
...
501468701
SCREW HUS-501468701
...
501468701
SCREW HUS-501468701
...
501666701
THROTTLE STOP HUS-501666701
...
501666601
HUS-501666601
...
501667201
PUMP DIAPHRAGM HUS-502254701
...
501666901
GASKET, PUMP SIDE HUS-501666901
...
501666201
COVER, PUMP SIDE HUS-501666201
...
501466901
SCREW HUS-501466901
...
501822501
FUEL INLET-FITTING HUS-501822501
...
501668601
HUS-501668601
...
501666101
FUEL INLET SCREEN HUS-501666101
...
501668401
REPAIR KIT DIAPHRAGM SET HUS-501668401
