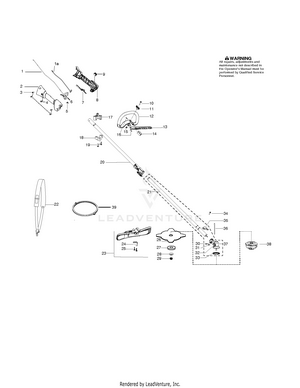

Husqvarna 129 DJX - 967146901 (2016-03) Trimmer/Edger

Model: 129 DJX - 967146901 (2016-03)

Save
 Part Not Listed?Part Not Listed?
product name

ACCESSORIES

...
...
2
COMBINATION WRENCH COMBI TOOL HUS-531222001
...
1
HEX WRENCH 5/32 HUS-530031159
...
3
BLADE GUARD TRANSPORT HUS-537312901

ENGINE

...
...
31
SEAL KIT AND BEARING HUS-501856201
...
37
Gaskets HUS-599604201
...
17
CLUTCH ASSY INCL. 33 HUS-575762203
...
26
MUFFLER KIT MUFFLER HUS-545008098
...
34
CABLE SHORT CIRCUIT ENGINE HUS-584993902
...
6
SCREW HUS-525755102
...
5
GASKET CYLINDER BASE HUS-579522901
...
10
SCREW HUS-573925801
...
30
KIT SPARK ARRESTOR SPARK ARRESTOR HUS-580446603
...
4
STARTER PAWL BRIDGE HUS-503873305
...
xx
KIT CARB GASKET CARBURETOR GASKET HUS-580446604
...
18
WASHER CLUTCH LOWER HUS-525612901
...
22
Ignition Module HUS-597383401
...
3
Bearings HUS-589568901
...
12
KIT CARBURETOR CARBURETOR HUS-545008097
...
29
KIT PISTON/CYLINDER PISTON & CYLINDER HUS-591397601
...
36
PISTON RING 36MM HUS-579524601
...
1
SCREW HUS-525755103
...
16
WASHER CLUTCH UPPER HUS-525613001
...
11
SCREW HUS-573925802
...
21
SCREW HUS-525755101
...
14
SCREW ITXSCM HUS-525760906
...
25
GASKET HUS-580985801
...
7
KIT Includes Insulation Wall and Gasket HUS-536280501
...
19
FLANGE NUT HUS-731711651
...
20
FLYWHEEL HUS-510088202
...
32
GASKET CRANKCASE HUS-579522801
...
xx
KIT GASKET Gasket kit - Includes fuel cap gasket, insulation wall and gasket, carb adapter gasket, cylider base gasket, and air filter HUS-536365801
...
35
KIT PISTON 129 PISTON HUS-590553502
...
28
KIT CRANKCASE ASSY CRANKCASE HUS-580446632
...
27
SPARK PLUG RESISTOR NGK CMR6A SPARK PLUG HUS-503235401
...
9
ASSY FILTER HOLDER HUS-580985501
...
2
CRANKSHAFT ASSY HUS-522928903
...
15
SCREW CLUTCH HUS-525615401
...
13
GASKET CARB ADAPTER HUS-586853301
...
33
SPRING CLUTCH HUS-587037001

HOUSING

...
...
24
ADAPTOR CLUTCH DRUM HUS-530058783
...
14
SCREW HUS-545112801
...
6
NUT HUS-731231401
...
13
ASSY STARTER COVER HUS-580294001
...
2
FILTER COVER HUS-524853801
...
18
SCREW HUS-525755101
...
21
KIT STARTER SPRING HUS-545008087
...
5
Fuel Tanks HUS-587332605
...
12
CHOKE BUTTON HUS-524853701
...
20
KIT PULLEY/SPRING HUS-585530301
...
23
DRIVER SPRING HUS-578465101
...
1
KNOB HUS-537213209
...
4
Caps HUS-578931504
...
—
FUEL FILTER HUS-574603901
...
17
SCREW HUS-573925801
...
8
GUARD CLUTCH COVER HUS-585644901
...
7
SCREW HUS-574444001
...
22
PULLEY STARTER DRIVE HUS-579366201
...
11
ASSY CLUTCH DRUM HUS-587126401
...
9
SCREW HUS-525755104
...
15
KIT ROPE HUS-545008079
...
3
FILTER HUS-574242701
...
10
CLUTCH COVER ASSY HUS-584993801
...
19
Fuel Hoses HUS-599568901
...
16
STARTER HANDLE HUS-575489501

SHAFT & HANDLE

...
...
xx
NEEDS DESCRIPTION HUS-580446602
...
13
HANDLE HUS-503997804
...
33
DRIVE DISC HUS-537234901
...
18
CLAMP HARNESS LOWER HUS-545056601
...
3
SCREW HUS-574444001
...
4
SCREW HUS-584294001
...
15
NUT HUS-502197101
...
21
KIT LOWER SPLITBOOM HUS-580446628
...
23
KIT STRAIGHT SHIELD HUS-580446606
...
5
SPRING TRIGGER HUS-530016454
...
14
SPACER PLASTIC HUS-503940301
...
xx
HEX WRENCH 5/32 HUS-530031159
...
9
SWITCH HUS-545049309
...
19
SCREW HUS-530015940
...
26
Blade - Grass HUS-504001303
...
1a
CABLE SHORT CIRCUIT HND HUS-584994002
...
25
SCREW 10-14X3/4 PLASTITE HUS-584410001
...
17
CLAMP HARNESS UPPER HUS-545113301
...
6
TRIGGER THROTTLE HVA ORANGE HUS-574355301
...
2
HSG THROTTLE RIGHT HVA HUS-545223001
...
34
SCREW 1/4-20 HUS-584410101
...
12
HANDLE LOOP HUS-503871907
...
30
SCREW 8-32 X 16.51 HUS-584410501
...
29
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
39
GUARD TRANSPORT HUS-587344201
...
31
SCREW 8-32 X 16.51 TT SC TRX HUS-584410601
...
1
ASSY THROTTLE CABLE ONLY HUS-574489003
...
7
THROTTLE LOCKOUT HVA ORANGE HUS-574355401
...
27
SUPPORTING CUP HUS-503890101
...
24
Limiter - Line HUS-530052286
...
38
TRIMMER HEAD T25 HUS-537338310
...
36
LOCKING PIN HUS-502285901
...
10
SCREW M6X50 HUS-725238051
...
32
PLUG GREASE 9MM HUS-575724601
...
20
DRIVESHAFT HUS-545006074
...
16
SCREW IHSCFTO HUS-574181501
...
28
SUPPORT FLANGE HUS-537285601
...
35
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
37
ASSY GEARBOX HUS-530096295
...
22
Harness - Diagonal with sign HUS-537216202
...
8
HSG THROTTLE LEFT HVA HUS-545223201
...
11
KNOB HUS-503879001
...
...
...
