Husqvarna 129 C Trimmer/Edger

Model: 129 C

Save
 Don't See Your Part Listed?
product name

ENGINE

...
...
33
SPRING CLUTCH HUS-587037001
...
21
SCREW HUS-525755101
...
22
Ignition Module HUS-597383401
...
xx
KIT CARB GASKET CARBURETOR GASKET HUS-580446604
...
6
SCREW HUS-525755102
...
7
KIT Includes Insulation Wall and Gasket HUS-536280501
...
16
WASHER CLUTCH UPPER HUS-525613001
...
11
SCREW HUS-573925802
...
29
KIT PISTON/CYLINDER PISTON & CYLINDER HUS-591397601
...
15
SCREW CLUTCH HUS-525615401
...
17
CLUTCH ASSY INCL. 33 HUS-575762203
...
xx
Gaskets HUS-599604201
...
4
STARTER PAWL BRIDGE HUS-503873305
...
1
SCREW HUS-525755103
...
20
FLYWHEEL HUS-510088202
...
36
PISTON RING 36MM HUS-579524601
...
12
KIT CARBURETOR CARBURETOR HUS-545008097
...
18
WASHER CLUTCH LOWER HUS-525612901
...
2
CRANKSHAFT ASSY HUS-522928903
...
19
FLANGE NUT HUS-731711651
...
31
SEAL KIT AND BEARING HUS-501856201
...
25
GASKET HUS-580985801
...
34
CABLE SHORT CIRCUIT ENGINE HUS-584993902
...
5
GASKET CYLINDER BASE HUS-579522901
...
3
Bearings HUS-589568901
...
28
KIT CRANKCASE ASSY CRANKCASE HUS-580446632
...
27
SPARK PLUG RESISTOR NGK CMR6A SPARK PLUG HUS-503235401
...
26
MUFFLER KIT MUFFLER HUS-545008098
...
32
GASKET CRANKCASE HUS-579522801
...
14
SCREW ITXSCM HUS-525760906
...
9
ASSY FILTER HOLDER HUS-580985501
...
10
SCREW HUS-573925801
...
xx
KIT GASKET Gasket kit - Includes fuel cap gasket, insulation wall and gasket, carb adapter gasket, cylider base gasket, and air filter HUS-536365801
...
30
KIT SPARK ARRESTOR SPARK ARRESTOR HUS-580446603
...
35
KIT PISTON 129 PISTON HUS-590553502
...
13
GASKET CARB ADAPTER HUS-586853301

HOUSING

...
...
10
CLUTCH COVER ASSY HUS-584993801
...
21
KIT STARTER SPRING HUS-545008087
...
17
SCREW HUS-573925801
...
3
FILTER HUS-574242701
...
7
SCREW HUS-574444001
...
22
PULLEY STARTER DRIVE HUS-579366201
...
12
CHOKE BUTTON HUS-524853701
...
23
DRIVER SPRING HUS-578465101
...
9
SCREW HUS-525755104
...
5
Fuel Tanks HUS-587332605
...
13
ASSY STARTER COVER HUS-580294001
...
16
STARTER HANDLE HUS-575489501
...
19
Fuel Hoses HUS-599568901
...
11
ASSY CLUTCH DRUM HUS-587126401
...
2
FILTER COVER HUS-524853801
...
8
GUARD CLUTCH COVER HUS-585644901
...
1
KNOB HUS-537213209
...
—
FUEL FILTER HUS-574603901
...
24
ADAPTOR CLUTCH DRUM HUS-530058783
...
18
SCREW HUS-525755101
...
4
Caps HUS-578931504
...
20
KIT PULLEY/SPRING HUS-585530301
...
6
NUT HUS-731231401
...
14
SCREW HUS-545112801
...
15
KIT ROPE HUS-545008079

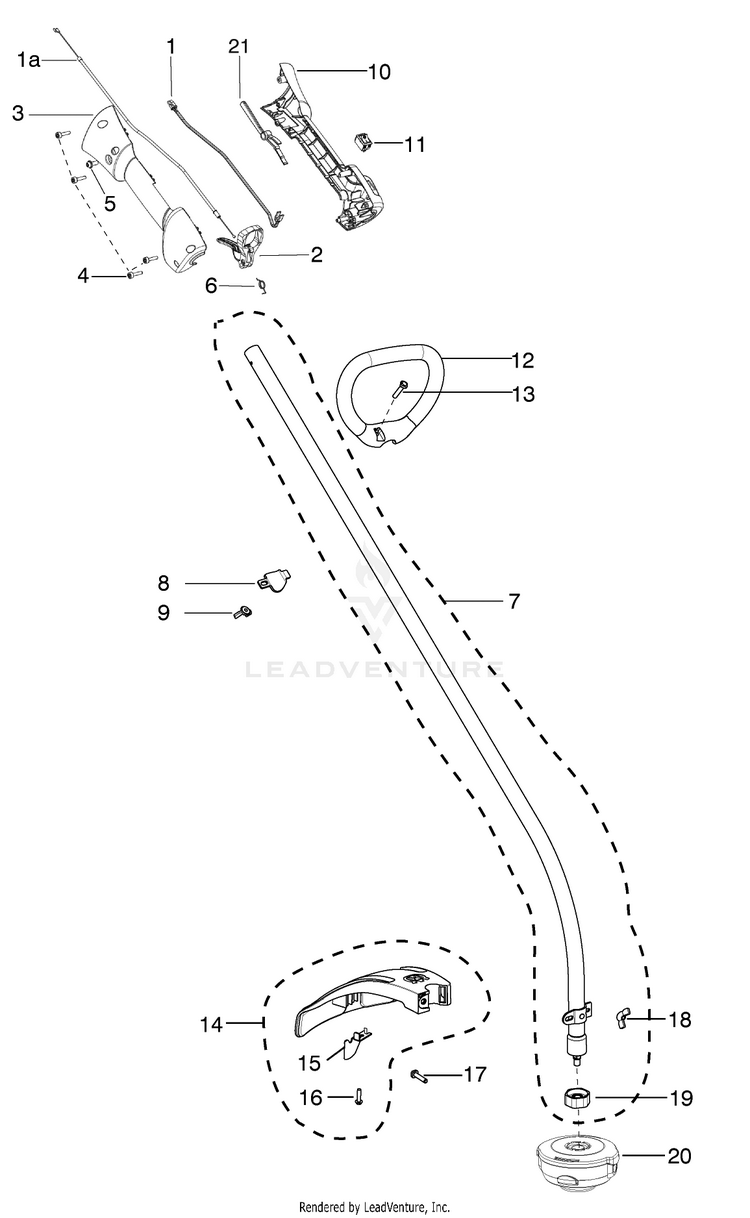

SHAFT & HANDLE

...
...
20
TRIMMER HEAD T25 HUS-537338311
...
2
TRIGGER THROTTLE HVA ORANGE HUS-574355301
...
3
HSG THROTTLE RIGHT HVA HUS-545223001
...
17
BOLT, TYPE 2 HUS-530015820
...
8
CLAMP ASSIST HANDLE HUS-530059185
...
6
SPRING TRIGGER HUS-530016454
...
7
KIT DRIVE SHAFT For units not sold in North America HUS-580446613
...
5
SCREW HUS-584294001
...
7
KIT SERVICE DRIVESHAFT For North America sold units HUS-580446609
...
1a
ASSY THROTTLE HUS-574489003
...
14
KIT SHIELD HUS-580446610
...
13
BOLT, TYPE 2 HUS-530015820
...
1
CABLE SHORT CIRCUIT HND HUS-584994002
...
18
NUT HUS-530015197
...
9
NUT-"D" HANDLE HUS-530091373
...
4
SCREW HUS-574444001
...
10
HSG THROTTLE LEFT HVA HUS-545223201
...
15
CUTTER HUS-530052287
...
21
THROTTLE LOCKOUT HVA ORANGE HUS-574355401
...
19
DUST CUP HUS-545017403
...
xx
KIT DECAL HUS-580446611
...
12
HANDLE ASSIST SOFT HUS-545042202
...
16
SCREW 10-14X3/4 PLASTITE HUS-584410001
...
11
SWITCH HUS-545049309
...
xx
ASSY THROTTLE HANDLE HUS-584268701
...
...
...
...
