Husqvarna 128PS Pruner/Pole Saw

Model: 128PS

Back To Assemblies

Save Part Not Listed?
product name

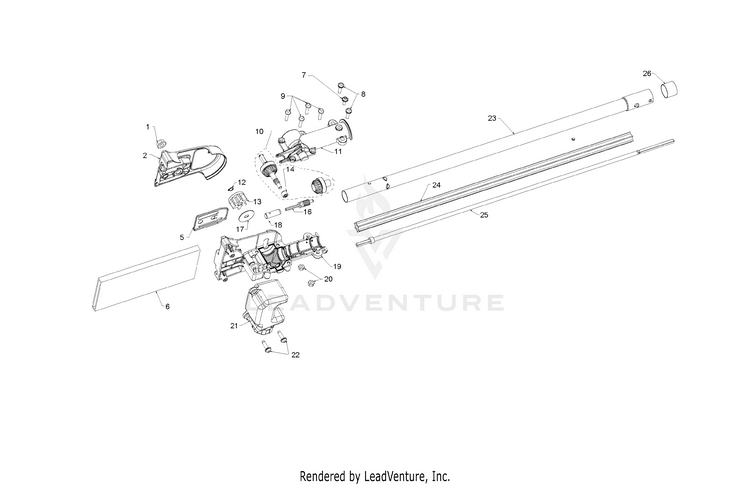

CUTTING HEAD

...
...
18
OIL BLOCK ASSY HUS-530057347
...
10
KIT GEAR ASSY HUS-530071646
...
9
SCREW-10-14 X 13/16 (PL HUS-530015886
...
21
ASSY OIL TANK HUS-530150266
...
26
TUBE CAP HUS-530055503
...
17
WASHER HUS-530056521
...
16
ASSY GEAR PLUNGER HUS-530053764
...
2
CLAMP ASSY HUS-587640701
...
20
LOCKNUT-HEX 10-24 HUS-530015768
...
7
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
23
TUBE HUS-545092502
...
22
SCREW HUS-530015843
...
12
RING SPROCKET RETAINER HUS-530056563
...
1
BAR NUT HUS-530015917
...
25
FLEX-LOWER HUS-530096218
...
14
BEARING HUS-530056564
...
5
PAD BAR PLATE HUS-530056523
...
11
COVER GEAR HOUSING HUS-587546801
...
19
HOUSING POLE SAW GEAR HUS-587552302
...
24
Shafts HUS-545092707
...
8
SCR 10-24 MS LDK PAN PH HUS-530016312
...
13
SPROCKET HUS-530056520
...
6
GUARD BAR HUS-537129901
