Husqvarna 128PS Pruner/Pole Saw

Model: 128PS

Save
 Part Not Listed?Part Not Listed?
product name

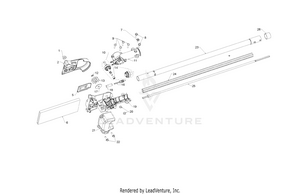

CUTTING HEAD

...
...
18
OIL BLOCK ASSY HUS-530057347
...
10
KIT GEAR ASSY HUS-530071646
...
9
SCREW-10-14 X 13/16 (PL HUS-530015886
...
21
ASSY OIL TANK HUS-530150266
...
26
TUBE CAP HUS-530055503
...
17
WASHER HUS-530056521
...
16
ASSY GEAR PLUNGER HUS-530053764
...
2
CLAMP ASSY HUS-587640701
...
20
LOCKNUT-HEX 10-24 HUS-530015768
...
7
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
23
TUBE HUS-545092502
...
22
SCREW HUS-530015843
...
12
RING SPROCKET RETAINER HUS-530056563
...
1
BAR NUT HUS-530015917
...
25
FLEX-LOWER HUS-530096218
...
14
BEARING HUS-530056564
...
5
PAD BAR PLATE HUS-530056523
...
11
COVER GEAR HOUSING HUS-587546801
...
19
HOUSING POLE SAW GEAR HUS-587552302
...
24
Shafts HUS-545092707
...
8
SCR 10-24 MS LDK PAN PH HUS-530016312
...
13
SPROCKET HUS-530056520
...
6
GUARD BAR HUS-537129901

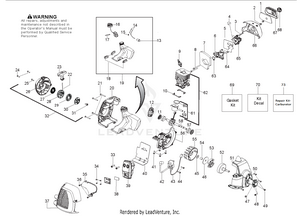

ENGINE

...
...
2
NUT HUS-530016101
...
33
BOLT MUFFLER HUS-530058982
...
3
CHOKE LEVER HUS-595015001
...
22
KIT ROPE HUS-545008079
...
50
SCREW M4 X .70 TT 16MM HUS-530016456
...
29
DRIVER SPRING HUS-578465101
...
5
KIT GASKET 28CC HUS-545008084
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
12
STARTER PAWL BRIDGE HUS-503873305
...
11
KIT GASKET 28CC HUS-545008084
...
17
KIT GASKET 28CC HUS-545008084
...
32
ASSY STARTER HSG HVA HUS-579063101
...
10
KIT GASKET 28CC HUS-545008084
...
52
KIT DRUM CLUTCH ASSY HUS-580446601
...
43
ASSY MODULE LEAD WIRE HUS-530039227
...
59
WRIST PIN RET. HUS-530015162
...
42
IGNITION MODULE MBU-7 HUS-545046701
...
36
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
8
BOLT CARB ADAPTOR HUS-530016400
...
4
PURGE BULB ZAMA HUS-530058709
...
26
HOUSING STARTER HUS-525455501
...
49
LOCKNUT-HEX 10-24 HUS-530015768
...
38
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
69
KIT GASKET 28CC Includes 5,7,10,11,17,40,63,69 HUS-545008084
...
48
SCREW-10-24 X 1" (UNC) HUS-530015774
...
45
WASHER CLUTCH HUS-530016463
...
15
FUEL LINE FITTING HUS-530023877
...
14
KIT-LINE(FUEL) HUS-530069599
...
37
KIT MUFFLER GUARD HVA HUS-576215001
...
44
SCREW M4 X .70 TT 16MM HUS-530016456
...
53
ASSEMBLY CLUTCH HUS-530055122
...
31
SCREW HUS-530016468
...
39
KIT MUFFLER W/CATALYST HUS-574031502
...
40
KIT GASKET 28CC HUS-545008084
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
1
FILTER AIRBOX HUS-530150253
...
61
KIT - PISTON HUS-545081814
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
25
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
47
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
20
REAR SHROUD ORANGE HUS-576153201
...
24
SCREW M5-0.8X30MM HUS-530016426
...
67
COVER-AIR BOX HUS-530057846
...
7
KIT GASKET 28CC HUS-545008084
...
35
SHIELD HEAT HUS-530150440
...
30
PULLEY STARTER DRIVE HUS-579366201
...
46
WASHER-CLUTCH HUS-530094189
...
62
KIT PISTON CYL HUS-545008083
...
55
FLYWHEEL HUS-530039242
...
19
KIT FUEL TANK HVA HUS-545180870
...
70
KIT DECAL HUS-545003352
...
58
CRANKSHAFT HUS-585415401
...
6
CARB ADAPTOR HUS-530035596
...
16
FUEL CAP ASSY HUS-578931503
...
41
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
63
KIT GASKET 28CC HUS-545008084
...
51
ASSY FAN HOUSING HVA 1" HUS-545205201
...
28
KIT PULLEY/SPRING HUS-585530301
...
27
KIT STARTER SPRING HUS-545008087
...
54
SPACER FLYWHEEL HUS-530057852
...
13
ASSY FUEL PICKUP PRE FLUSHED HUS-577167201
...
18
ISOLATOR FUEL TANK HUS-530059780
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
23
STARTER HANDLE HUS-545043204
...
65
KIT CARB HUS-545081848
...
56
CRANKCASE CAST 128 HUS-577929502
...
57
BEARING RADIAL BALL (6201) HUS-545013401
...
60
RING PISTON HUS-575227901
...
73
Gaskets HUS-599604201
...
34
SCREW 6-19X.437 HUS-545227101
...
21
SCREW HUS-530016448

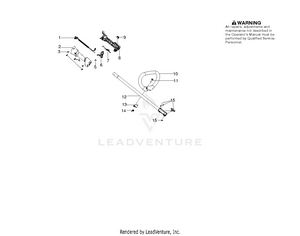

SHAFT

...
...
14
NUT-"D" HANDLE HUS-530091373
...
4
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
7
THROTTLE LOCKOUT HVA ORANGE HUS-574355401
...
8
HSG THROTTLE LEFT HVA HUS-545223201
...
11
BOLT, TYPE 2 HUS-530015820
...
2
HSG THROTTLE RIGHT HVA HUS-545223001
...
6
TRIGGER THROTTLE HVA ORANGE HUS-574355301
...
5
SPRING TRIGGER HUS-530016454
...
1
ASSY CABLE / WIRE HARNESS HUS-576139401
...
12
KIT UPPER SHAFT SILVER HUS-575261201
...
9
SWITCH HUS-545049309
...
13
CLAMP ASSIST HANDLE HUS-530059185
...
10
HANDLE HUS-545042201
...
15
KIT UPPER SHAFT SILVER HUS-575261201
...
3
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
...
...
