Husqvarna 128 R (Canada Only) (2009-09) Brush Cutter

Model: 128 R (Canada Only) (2009-09)

Save Part Not Listed?
product name

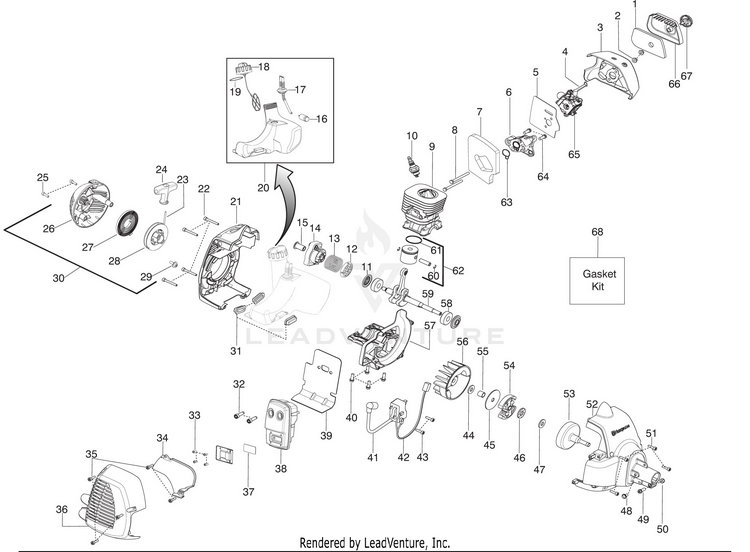

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB (Incl 7,63) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (foam) New Part Number For This IPL HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER STARTER HUS-530016475
...
13
SPRING STARTER CUP HUS-545160301
...
14
ASSY STARTER CUP HUS-545102303
...
15
KIT STARTER HUS-545180844
...
16
FUEL PICK-UP ASSY HUS-530095646
...
17
KIT FUEL LINE HUS-545081897
...
18
FUEL CAP ASSY (Incl. 19) HUS-578931503
...
19
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
20
FUEL TANK ASSY (Incl. 16,17,18,19) HUS-545105107
...
21
REAR SHROUD ORANGE HUS-576153201
...
22
SCREW HUS-530016448
...
23
KIT ROPE HUS-545029901
...
24
STARTER HANDLE GRAY HUS-530150318
...
25
SCREW M5-0.8X30MM HUS-530016426
...
26
STARTER HOUSING HUS-545029603
...
27
SPRING STARTER HUS-545008015
...
28
KIT STARTER PULLEY HUS-545029701
...
29
SCREW HUS-530016468
...
30
ASSY-STARTER HSG. (Incl. 23,24,26,27,28,29) HUS-545106301
...
31
ISOLATOR FUEL TANK HUS-530059780
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST HUS-574031502
...
39
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
BEARING THRUST HUS-545173401
...
47
WASHER THRUST HUS-530016420
...
48
SCREW HUS-530016469
...
49
SCREW HUS-530016470
...
50
NUT HEX LOCK 10-24 HUS-530403094
...
51
SCREW M4 X .70 TT 16MM HUS-530016456
...
52
FAN HSG ASSY HUS-545017501
...
54
KIT CLUTCH ASSY HUS-525472901
...
55
SPACER FLYWHEEL HUS-530057852
...
56
FLYWHEEL HUS-530039242
...
57
CRANKCASE CASTING HUS-545054601
...
58
BEARING RADIAL BALL (6201) HUS-545013401
...
59
KIT CRANKSHAFT ASSY HUS-545030001
...
60
WRIST PIN RET. HUS-530015162
...
61
RING PISTON HUS-575227901
...
62
KIT PISTON 28CC TRIMMER (Incl. 60,61) HUS-545030301
...
63
KIT GASKET 28CC (adaptor seal) New Part Number For This IPL HUS-545008084
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
66
COVER-AIR BOX HUS-530057846
...
67
KNOB ASSY AIRBOX COVER HUS-530059796
...
68
KIT GASKET 28CC (Incl. 5,7,11,19,39,63) New Part Number For This IPL HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709

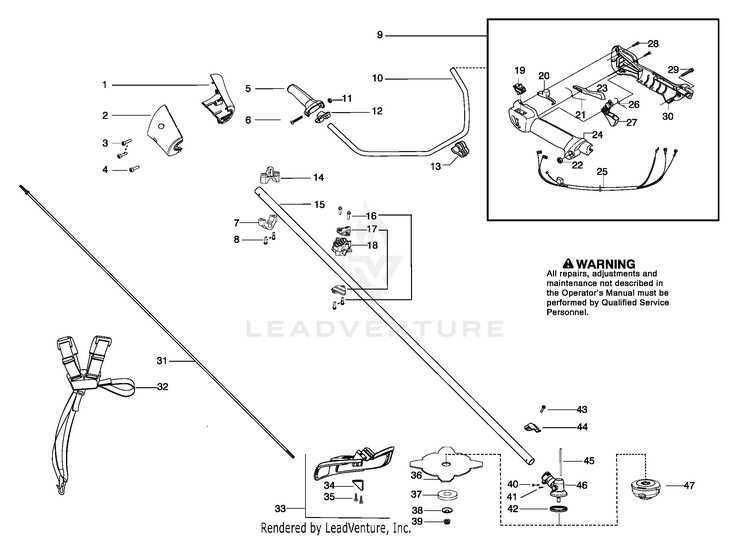

Handle & Controls

...
...
1
NOSE CONE BH LEFT HUS-545036401
...
2
NOSE CONE BH RIGHT HUS-545036501
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
HANDLE HUS-537172802
...
6
SCREW HUS-503200245
...
7
CLAMP HARNESS LOWER (lower) HUS-545056601
...
8
SCREW HUS-530015940
...
9
ASSY THROTTLE HOUSING (Incl. 19,20,21,22,23, 24,25,26,27,28,29,30) HUS-545125501
...
10
HANDLE HUS-502199503
...
11
NUT HUS-731231401
...
12
BRACKET HUS-537172901
...
13
GROMMET HUS-502211201
...
14
CLAMP HARNESS UPPER (upper) HUS-545113301
...
15
KIT-DRIVESHAFT(INCL. 40.41.44. (Incl. 40,41,44,46) HUS-545180805
...
16
SCREW HUS-530015814
...
17
CLAMP BRACKET HUS-530058563
...
18
CLAMP HUS-545058501
...
19
STOP BUTTON HUS-537419001
...
20
STARTER THROTTLE LOCK HUS-537160703
...
21
SPRING HUS-537174301
...
22
NUT HUS-503221013
...
23
THROTTLE LOCKOUT HUS-506495101
...
24
HANDLE HUS-537160203
...
26
SPRING HUS-537174201
...
27
THROTTLE CONTROL HUS-506495001
...
28
SCREW HUS-503216618
...
29
SCREW IHSCFM HUS-503200782
...
30
HANDLE HUS-537160301
...
32
HARNESS DUO HUS-537216301
...
33
KIT COBI SHIELD (Incl. 34,35) HUS-545030901
...
34
Limiter - Line HUS-530052286
...
35
SCREW HUS-530015814
...
36
HUS 10" GRASSBLADE 255-4T 1" HUS-596278001
...
37
SUPPORTING CUP HUS-503890101
...
38
SUPPORT FLANGE HUS-537285601
...
39
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
40
SCREW - CARB. ADAPTOR HUS-530016014
...
41
SCREW HUS-545003902
...
42
DRIVE DISC HUS-537234901
...
43
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
44
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
45
LOCKING PIN HUS-502285901
...
46
ASSY GEARBOX HUS-530096295
...
47
TRIMMER HEAD T25 HUS-537338310
...
xx
MANUAL OPERATORS Not Shown HUS-545154124
...
xx
DECAL SHAFT WARNING US Not Shown HUS-545098601
...
xx
BLADE GUARD TRANSPORT Not Shown HUS-537312901
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159
...
xx
COMBINATION WRENCH COMBI TOOL Not Shown HUS-531222001

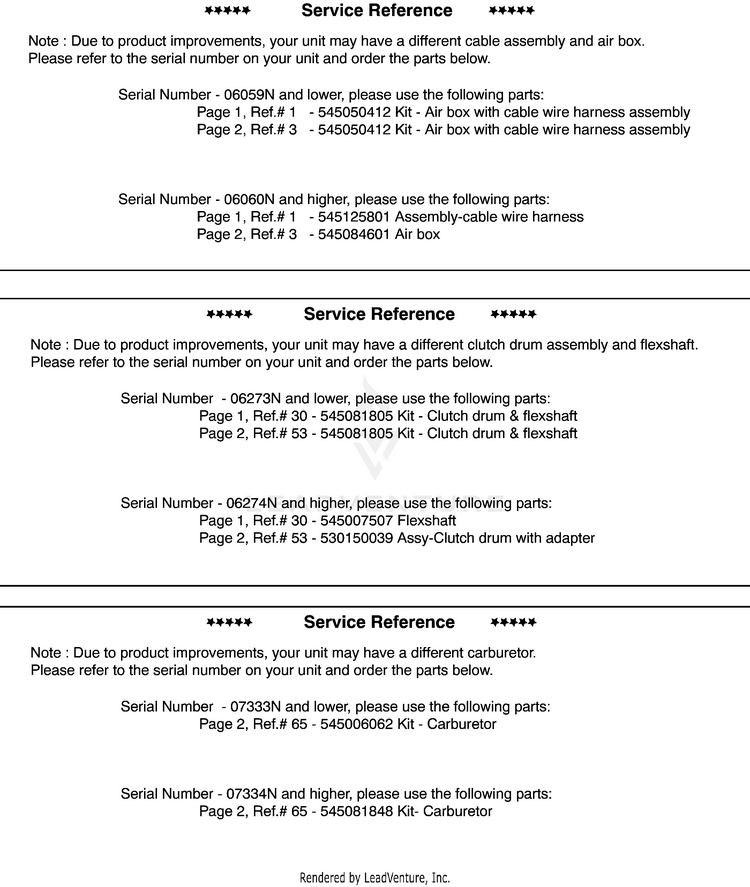

Service Reference

...

No Parts Available for this Schematic
