Husqvarna 128 R (Canada Only) (2009-05) Brush Cutter

Model: 128 R (Canada Only) (2009-05)

Save Part Not Listed?
product name

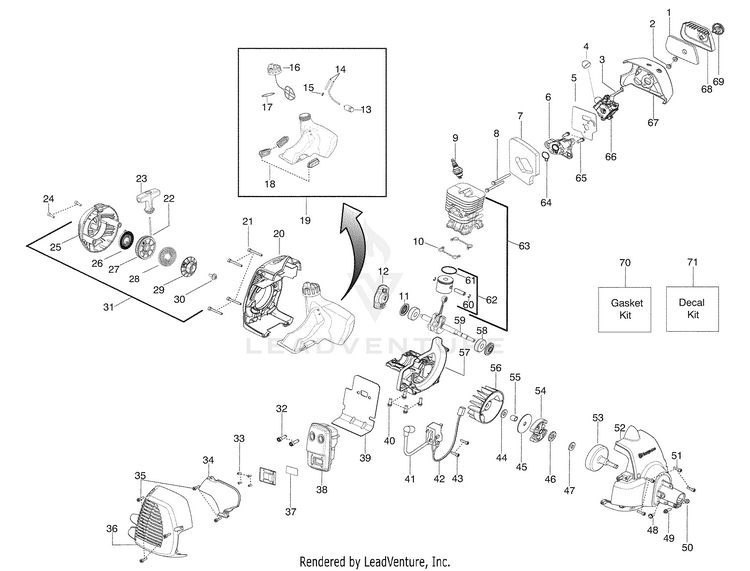

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC (Incl 7,64) HUS-545008086
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (kit) HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
10
KIT GASKET 28CC (kit) HUS-545008084
...
11
KIT GASKET 28CC (kit) HUS-545008084
...
12
STARTER PAWL BRIDGE HUS-503873305
...
13
FUEL PICK-UP ASSY HUS-530095646
...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599
...
15
FUEL LINE FITTING HUS-530023877
...
16
FUEL CAP ASSY (Incl. 17) HUS-578931503
...
17
KIT GASKET 28CC (kit) HUS-545008084
...
18
ISOLATOR FUEL TANK HUS-530059780
...
19
KIT FUEL TANK HVA (Incl. 13,14,15,16,17,18) HUS-545180870
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545008079
...
23
STARTER HANDLE HUS-545043204
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
KIT HOUSING STARTER HUS-579066901
...
26
KIT STARTER SPRING HUS-545008087
...
27
KIT PULLEY/SPRING HUS-585530301
...
28
SPRING - DRIVER HUS-544038802
...
29
PULLEY STARTER DRIVE HUS-579366201
...
30
SCREW HUS-530016468
...
31
ASSY STARTER HSG HVA (Incl. 22,23,25,26,27,28,29,30) HUS-579063101
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW 6-19X.437 HUS-545227101
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST (Incl. 32,33,37,39) New Part Number For This IPL HUS-574031502
...
39
KIT GASKET 28CC (kit) HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
BEARING THRUST HUS-545173401
...
47
WASHER THRUST HUS-530016420
...
48
SCREW HUS-530016469
...
49
SCREW HUS-530016470
...
50
NUT HEX LOCK 10-24 HUS-530403094
...
51
SCREW M4 X .70 TT 16MM HUS-530016456
...
52
FAN HSG ASSY HUS-545017501
...
53
ASSY CLUTCH DRUM HUS-587126401
...
54
ASSEMBLY CLUTCH HUS-530055122
...
55
SPACER FLYWHEEL HUS-530057852
...
56
FLYWHEEL HUS-530039242
...
57
CRANKCASE CAST 128 HUS-577929502
...
58
BEARING RADIAL BALL (6201) HUS-545013401
...
59
CRANKSHAFT HUS-585415401
...
60
WRIST PIN RET. HUS-530015162
...
61
RING PISTON HUS-575227901
...
62
KIT - PISTON (Incl. 60,61) HUS-545081814
...
63
KIT PISTON CYL (Incl. 62) HUS-545008083
...
64
KIT GASKET 28CC (kit) HUS-545008084
...
65
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
66
KIT CARB (Incl. 3,4,5) HUS-545081848
...
67
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
68
COVER-AIR BOX HUS-530057846
...
69
KNOB ASSY AIRBOX COVER HUS-530059796
...
70
KIT GASKET 28CC (Incl. 5,7,10,11,17,39,64) HUS-545008084
...
71
KIT DECAL HUS-545003327

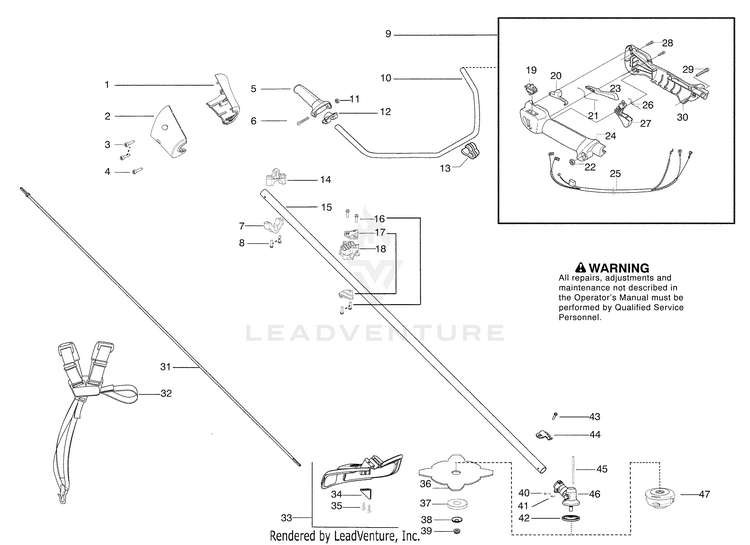

Handle & Controls

...
...
1
NOSE CONE BH LEFT HUS-545036401
...
2
NOSE CONE BH RIGHT HUS-545036501
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
HANDLE HUS-537172802
...
6
SCREW HUS-503200245
...
7
CLAMP HARNESS LOWER (lower) HUS-545056601
...
8
SCREW HUS-530015940
...
9
ASSY THROTTLE HOUSING (Incl. 19,20,21,22,23, 24,25,26,27,28,29,30) HUS-545125501
...
10
HANDLE HUS-502199503
...
11
NUT HUS-731231401
...
12
BRACKET HUS-537172901
...
13
GROMMET HUS-502211201
...
14
CLAMP HARNESS UPPER HUS-545113301
...
15
KIT DRIVESHAFT HUS-545180852
...
16
SCREW (upper) HUS-530015814
...
17
CLAMP BRACKET (Incl. 40,41,44,46) HUS-530058563
...
18
CLAMP HUS-545058501
...
19
STOP BUTTON HUS-537419001
...
20
STARTER THROTTLE LOCK HUS-537160703
...
21
SPRING HUS-537174301
...
22
NUT HUS-503221013
...
23
THROTTLE LOCKOUT HUS-506495101
...
24
HANDLE HUS-537160203
...
25
ASSY CABLE WIRE HARNESS HUS-545125801
...
26
SPRING HUS-537174201
...
27
THROTTLE CONTROL HUS-506495001
...
28
SCREW HUS-503216618
...
29
SCREW IHSCFM HUS-503200782
...
30
HANDLE HUS-537160301
...
31
FLEXSHAFT 57" HUS-545007507
...
32
HARNESS DUO HUS-537216301
...
33
KIT COBI SHIELD (Incl. 34,35,43) HUS-545030901
...
34
Limiter - Line HUS-530052286
...
35
SCREW HUS-530015814
...
36
HUS 10" GRASSBLADE 255-4T 1" HUS-596278001
...
37
SUPPORTING CUP HUS-503890101
...
38
SUPPORT FLANGE HUS-537285601
...
39
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
40
SCREW - CARB. ADAPTOR HUS-530016014
...
41
SCREW HUS-545003902
...
42
DRIVE DISC HUS-537234901
...
43
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
44
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
45
LOCKING PIN HUS-502285901
...
46
ASSY GEARBOX HUS-530096295
...
47
TRIMMER HEAD T25 HUS-537338310
...
xx
MANUAL OPERATORS Not Shown HUS-545196738
...
xx
BLADE GUARD TRANSPORT Not Shown HUS-537312901
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159
...
xx
COMBINATION WRENCH COMBI TOOL Not Shown HUS-531222001
