product name

Husqvarna 128 R Brushcutter/Clearing Saw

Model: 128 R

Save Part Not Listed?
product name

ACCESSORIES

...
...
3
BLADE GUARD TRANSPORT HUS-537312901
...
1
HEX WRENCH 5/32 HUS-530031159
...
2
COMBINATION WRENCH COMBI TOOL HUS-531222001

ENGINE

...
...
49
LOCKNUT-HEX 10-24 HUS-530015768
...
58
CRANKSHAFT S/N = 2012-020N HUS-585415401
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
42
IGNITION MODULE MBU-7 HUS-545046701
...
37
KIT MUFFLER GUARD HVA HUS-576215001
...
73
Gaskets RUIXING CARBURETOR HUS-599604201
...
72
WASHER THRUST S/N = 2012-090N HUS-530016420
...
52
ASSY CLUTCH DRUM S/N = 2012-090N HUS-587126401
...
71
BEARING THRUST S/N = 2012-090N HUS-545173401
...
58
CRANKSHAFT S/N = 2012-021N HUS-585415402
...
53
ASSEMBLY CLUTCH HUS-530055122
...
55
FLYWHEEL HUS-530039242
...
36
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
38
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
65
KIT CARB HUS-545081848
...
59
WRIST PIN RET. HUS-530015162
...
61
KIT - PISTON HUS-545081814
...
15
FUEL LINE FITTING HUS-530023877
...
69
KIT GASKET 28CC HUS-545008084
...
43
ASSY MODULE LEAD WIRE HUS-530039227
...
20
REAR SHROUD ORANGE HUS-576153201
...
26
HOUSING STARTER HUS-525455501
...
60
RING PISTON HUS-575227901
...
23
STARTER HANDLE HUS-545043204
...
1
FILTER AIRBOX HUS-530150253
...
3
CHOKE LEVER Fits Zama Carburetor, 4.3mm Shaft Hole HUS-530057844
...
8
BOLT CARB ADAPTOR HUS-530016400
...
47
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
44
SCREW M4 X .70 TT 16MM HUS-530016456
...
27
KIT STARTER SPRING HUS-545008087
...
3
CHOKE LEVER Fits Ruixing Carburetor, 5mm shaft Hole HUS-595015001
...
52
KIT DRUM CLUTCH ASSY S/N = 2012-091N HUS-580446601
...
13
ASSY FUEL PICKUP PRE FLUSHED HUS-577167201
...
10
KIT GASKET 28CC HUS-545008084
...
5
KIT GASKET 28CC HUS-545008084
...
56
CRANKCASE CAST 128 HUS-577929502
...
67
COVER-AIR BOX HUS-530057846
...
32
ASSY STARTER HSG HVA HUS-579063101
...
12
STARTER PAWL BRIDGE HUS-503873305
...
19
KIT FUEL TANK HVA HUS-545180870
...
70
KIT DECAL HUS-545003352
...
22
KIT ROPE HUS-545008079
...
24
SCREW M5-0.8X30MM HUS-530016426
...
63
KIT GASKET 28CC HUS-545008084
...
6
CARB ADAPTOR HUS-530035596
...
21
SCREW HUS-530016448
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
41
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
31
SCREW HUS-530016468
...
39
KIT MUFFLER W/CATALYST MUFFLER ID CODE 044801007C HUS-574031502
...
14
KIT-LINE(FUEL) HUS-530069599
...
30
PULLEY STARTER DRIVE HUS-579366201
...
18
ISOLATOR FUEL TANK HUS-530059780
...
7
KIT GASKET 28CC HUS-545008084
...
25
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
40
KIT GASKET 28CC HUS-545008084
...
2
NUT HUS-530016101
...
51
ASSY FAN HOUSING HVA 1" HUS-545205201
...
17
KIT GASKET 28CC HUS-545008084
...
35
SHIELD HEAT HUS-530150440
...
73
GASKET ZAMA CARBURETOR HUS-504811801
...
48
SCREW-10-24 X 1" (UNC) HUS-530015774
...
29
DRIVER SPRING HUS-578465101
...
50
SCREW M4 X .70 TT 16MM HUS-530016456
...
34
SCREW 6-19X.437 HUS-545227101
...
33
BOLT MUFFLER HUS-530058982
...
16
FUEL CAP ASSY HUS-578931503
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
45
WASHER CLUTCH HUS-530016463
...
11
KIT GASKET 28CC HUS-545008084
...
54
SPACER FLYWHEEL HUS-530057852
...
46
WASHER-CLUTCH HUS-530094189
...
62
KIT PISTON CYL HUS-545008083
...
57
BEARING RADIAL BALL (6201) HUS-545013401
...
28
KIT PULLEY/SPRING HUS-585530301
...
4
PURGE BULB ZAMA HUS-530058709

SERVICE REFERENCE

...
...
3
KIT DRUM CLUTCH ASSY CLUTCH DRUM - S/N 2012-091N AND HIGHER HUS-580446601
...
1
BEARING THRUST HUS-545173401
...
3
ASSY CLUTCH DRUM S/N 2012-090N AND LOWER HUS-587126401
...
2
WASHER THRUST HUS-530016420

SHAFT & HANDLE

...
...
31
FLEXSHAFT 57" HUS-545007507
...
47
ASSY GEARBOX HUS-530096295
...
44
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
3
SCREW M4 X 1.75 PT 16MM 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530016449
...
5
HANDLE HUS-537172802
...
16
SCREW HUS-530015814
...
30
HANDLE HUS-537160301
...
14
CLAMP HARNESS UPPER HUS-545113301
...
8
SCREW HUS-530015940
...
25
ASSY CABLE WIRE HARNESS HUS-545125801
...
15
DRIVE SHAFT ASSY For 952715752 HUS-545006068
...
17
CLAMP BRACKET HUS-530058563
...
10
HANDLE HUS-502199503
...
38
SUPPORT FLANGE HUS-537285601
...
39
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
21
SPRING HUS-537174301
...
28
SCREW HUS-503216618
...
43
DRIVE DISC HUS-537234901
...
27
THROTTLE CONTROL HUS-506495001
...
35
SCREW HUS-530015814
...
34
Limiter - Line HUS-530052286
...
45
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
22
NUT HUS-503221013
...
7
CLAMP HARNESS LOWER HUS-545056601
...
48
TRIMMER HEAD T25 HUS-537338310
...
29
SCREW IHSCFM HUS-503200782
...
1
NOSE CONE B/H LH HVA 25.4MM 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574810701
...
26
SPRING HUS-537174201
...
32
HARNESS DUO HUS-537216301
...
9
ASSY THROTTLE HOUSING HUS-545125501
...
19
STOP BUTTON HUS-537419001
...
33
KIT COBI SHIELD HUS-545030901
...
23
THROTTLE LOCKOUT HUS-506495101
...
18
CLAMP HUS-545058501
...
24
HANDLE HUS-537160203
...
42
PLUG GREASE 9MM HUS-575724601
...
41
SCREW HUS-545003902
...
2
CONE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574810301
...
40
SCREW - CARB. ADAPTOR HUS-530016014
...
13
GROMMET HUS-502211201
...
11
NUT HUS-731231401
...
15
Kit-Driveshaft For 952711949 HUS-575775901
...
12
BRACKET HUS-537172901
...
15
NEEDS DESCRIPTION For 952715758 HUS-575776101
...
36
HUS 10" GRASSBLADE 255-4T 1" HUS-596278001
...
6
SCREW HUS-503200245
...
4
SCREW-10-14 X 1/2 PLASTITE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530015805
...
46
LOCKING PIN HUS-502285901
...
37
SUPPORTING CUP HUS-503890101
...
20
STARTER THROTTLE LOCK HUS-537160703

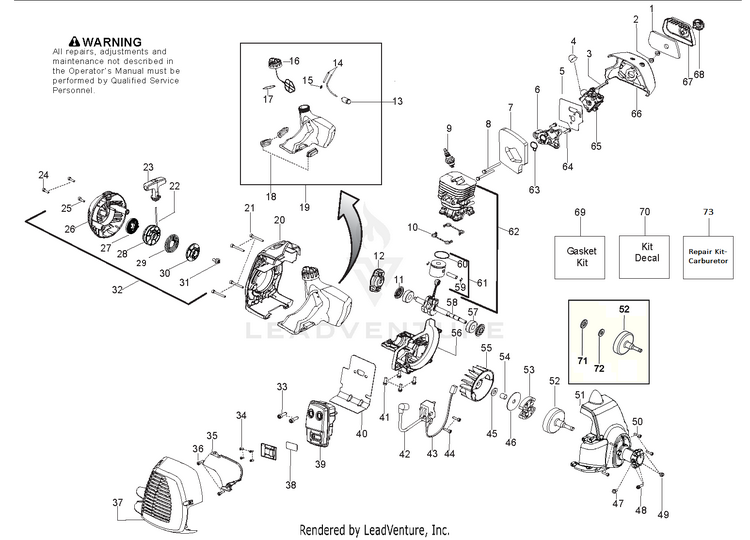

Schematic Image Zoomed
