Husqvarna 128 LDX (545192135) (2009-03) Trimmer

Model: 128 LDX (545192135) (2009-03)

Save
 Part Not Listed?Part Not Listed?
product name

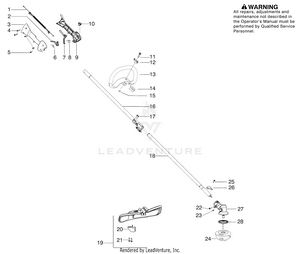

Repair Parts

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE RH HUS-545062001
...
4
SCREW HUS-530016448
...
5
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
6
SPRING TRIGGER HUS-530016454
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
SCREW M6X50 HUS-725238051
...
12
KNOB HUS-503879001
...
13
ASSY LOOP HANDLE HUS-545180809
...
14
SPACER PLASTIC HUS-503940301
...
15
NUT HUS-502197101
...
16
DRIVESHAFT (Incl. 17, & flex) HUS-545006074
...
17
SCREW HUS-503200725
...
18
KIT LOWER SHAFT (incl. flex,22,23,26,27 ) HUS-545180849
...
19
KIT COBI SHIELD (Incl. 20,21,25) HUS-545030901
...
20
Limiter-Line HUS-530052286
...
21
SCREW HUS-530015814
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
23
SCREW HUS-545003902
...
24
TRIMMER HEAD T25 HUS-537338310
...
25
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
26
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
27
ASSY GEARBOX HUS-530096295
...
28
DRIVE DISC HUS-537234901
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159

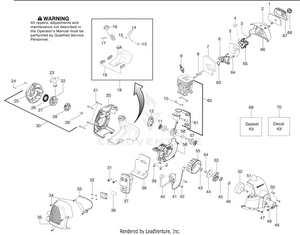

Repair Parts

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC (Incl. 7,63) HUS-545008086
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (kit) HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
10
KIT GASKET 28CC (kit) HUS-545008084
...
11
KIT GASKET 28CC (kit) HUS-545008084
...
12
STARTER PAWL BRIDGE HUS-503873305
...
13
FUEL PICK-UP ASSY HUS-530095646
...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599
...
15
FUEL LINE FITTING HUS-530023877
...
16
FUEL CAP ASSY (Incl. 17) HUS-578931503
...
17
KIT GASKET 28CC (kit) HUS-545008084
...
18
ISOLATOR FUEL TANK HUS-530059780
...
19
KIT FUEL TANK HVA Incl. 13,14,15,16,17,18) HUS-545180870
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545008079
...
23
STARTER HANDLE HUS-545043204
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
KIT HOUSING STARTER HUS-579066901
...
26
KIT STARTER SPRING New Part Number For This IPL HUS-545008087
...
27
KIT PULLEY/SPRING HUS-585530301
...
28
PULLEY STARTER DRIVE HUS-579366201
...
29
SCREW HUS-530016468
...
30
ASSY STARTER HSG HVA (Incl. 22,23,25,26,27,28,29) HUS-579063101
...
31
BOLT MUFFLER HUS-530058982
...
32
SCREW-6-19X5/16PLAST PA HUS-530015241
...
33
SHIELD HEAT HUS-530150440
...
34
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
35
KIT MUFFLER GUARD HVA HUS-576215001
...
36
KIT SPARK ARRESTOR SCREEN (Incl. 32) HUS-545030501
...
37
KIT MUFFLER W/CATALYST HUS-574031502
...
38
KIT GASKET 28CC (kit) HUS-545008084
...
39
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
40
IGNITION MODULE MBU-7 HUS-545046701
...
41
ASSY MODULE LEAD WIRE HUS-530039227
...
42
SCREW M4 X .70 TT 16MM HUS-530016456
...
43
WASHER CLUTCH HUS-530016463
...
44
WASHER-CLUTCH HUS-530094189
...
45
BEARING THRUST HUS-545173401
...
46
WASHER THRUST HUS-530016420
...
47
SCREW HUS-530016469
...
48
SCREW HUS-530016470
...
49
LOCKNUT-HEX 10-24 HUS-530015768
...
50
SCREW M4 X .70 TT 16MM HUS-530016456
...
51
FAN HSG ASSY HUS-545017501
...
52
ASSY CLUTCH DRUM HUS-587126401
...
53
ASSEMBLY CLUTCH HUS-530055122
...
54
SPACER FLYWHEEL HUS-530057852
...
55
FLYWHEEL HUS-530039242
...
56
CRANKCASE CAST 128 HUS-577929502
...
57
BEARING RADIAL BALL (6201) HUS-545013401
...
58
CRANKSHAFT HUS-585415401
...
59
WRIST PIN RET. HUS-530015162
...
60
RING PISTON HUS-575227901
...
61
KIT - PISTON (Incl. 59,60) HUS-545081814
...
62
KIT PISTON CYL (Incl. 61) HUS-545008083
...
63
KIT GASKET 28CC (kit) HUS-545008084
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
65
CARBURETOR KIT W38 (Incl. 3,4,5) HUS-545081850
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
67
COVER-AIR BOX HUS-530057846
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
69
KIT GASKET 28CC (Incl. 5,7,10,11,17,38,63) HUS-545008084
...
70
KIT DECAL HUS-545003319
...
...
...
