product name

Husqvarna 128 LDX (2010-03) Trimmer

Model: 128 LDX (2010-03)

Save
 Part Not Listed?Part Not Listed?
product name

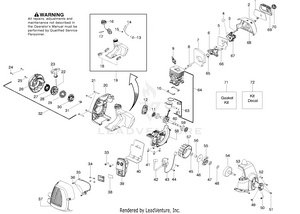

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC (Incl. 7,65) HUS-545008086
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
10
KIT GASKET 28CC HUS-545008084
...
11
KIT GASKET 28CC HUS-545008084
...
12
STARTER PAWL BRIDGE HUS-503873305
...
13
FUEL PICK-UP ASSY HUS-530095646
...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599
...
15
FUEL LINE FITTING HUS-530023877
...
16
FUEL CAP ASSY (Incl. 17) HUS-578931503
...
17
KIT GASKET 28CC HUS-545008084
...
18
ISOLATOR FUEL TANK HUS-530059780
...
19
KIT FUEL TANK HVA (Incl. 13,14,15,16,17,18) HUS-545180870
...
20
KIT HOUSING STARTER New Part Number For This IPL HUS-579066901
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545008079
...
23
HANDLE - STARTER New Part Number For This IPL HUS-545043205
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
SCREW M4 X 1.75 PT 16MM New Part Number For This IPL HUS-530016449
...
26
KIT HOUSING STARTER New Part Number For This IPL HUS-579066901
...
27
KIT STARTER SPRING HUS-545008087
...
28
KIT PULLEY/SPRING HUS-585530301
...
29
SPRING - DRIVER HUS-544038802
...
30
PULLEY STARTER DRIVE HUS-579366201
...
31
SCREW HUS-530016468
...
32
ASSY STARTER HSG HVA (Incl. 22,23, 25-31) New Part Number For This IPL HUS-579063101
...
33
BOLT MUFFLER HUS-530058982
...
34
SCREW-6-19X5/16PLAST PA HUS-530015241
...
35
SHIELD HEAT HUS-530150440
...
36
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
37
KIT MUFFLER GUARD HVA (Incl. Screws) New Part Number For This IPL HUS-576215001
...
38
KIT SPARK ARRESTOR SCREEN (Incl. 34) HUS-545030501
...
39
KIT MUFFLER W/CATALYST (Incl. 33,34,38,40) HUS-574031502
...
40
KIT GASKET 28CC HUS-545008084
...
41
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
42
IGNITION MODULE MBU-7 HUS-545046701
...
43
ASSY MODULE LEAD WIRE HUS-530039227
...
44
SCREW M4 X .70 TT 16MM HUS-530016456
...
45
WASHER CLUTCH HUS-530016463
...
46
WASHER-CLUTCH HUS-530094189
...
47
BEARING THRUST HUS-545173401
...
48
WASHER THRUST HUS-530016420
...
51
LOCKNUT-HEX 10-24 HUS-530015768
...
52
SCREW M4 X .70 TT 16MM HUS-530016456
...
54
ASSY CLUTCH DRUM HUS-587126401
...
55
ASSEMBLY CLUTCH HUS-530055122
...
56
SPACER FLYWHEEL HUS-530057852
...
57
FLYWHEEL HUS-530039242
...
58
CRANKCASE CAST 128 HUS-577929502
...
59
BEARING RADIAL BALL (6201) HUS-545013401
...
60
CRANKSHAFT HUS-585415401
...
61
WRIST PIN RET. HUS-530015162
...
62
RING PISTON HUS-575227901
...
63
KIT - PISTON (Incl. 61,62) HUS-545081814
...
64
KIT PISTON CYL (Incl. 63) HUS-545008083
...
65
KIT GASKET 28CC HUS-545008084
...
66
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
67
KIT CARB (Incl. 3,4,5) New Part Number For This IPL HUS-545081848
...
68
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
69
COVER-AIR BOX HUS-530057846
...
70
KNOB ASSY AIRBOX COVER HUS-530059796
...
71
KIT GASKET 28CC (Incl. 5,7,10,11,17,40,65) HUS-545008084
...
72
KIT DECAL HUS-545003319

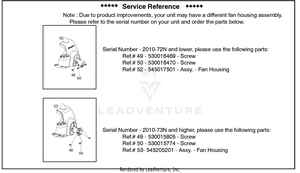

Service Reference (Part A)

...

No Parts Available for this Schematic

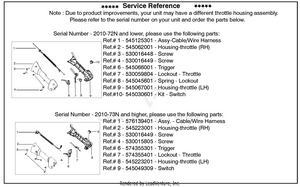

Service Reference (Part B)

...

No Parts Available for this Schematic

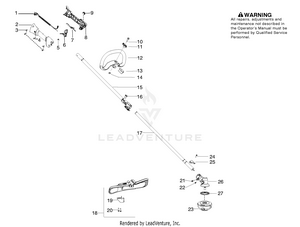

Shaft & Handle

...
...
5
SPRING TRIGGER HUS-530016454
...
10
SCREW M6X55 HUS-725238151
...
11
KNOB HUS-503879001
...
12
ASSY LOOP HANDLE HUS-545180809
...
13
SPACER PLASTIC HUS-503940301
...
14
NUT HUS-502197101
...
15
DRIVESHAFT (Incl. 16, & flex) HUS-545006074
...
16
SCREW HUS-503200725
...
17
KIT LOWER SHAFT (incl. flex,21,22,25,26 HUS-545180849
...
18
KIT COBI SHIELD (Incl. 19,20,24) HUS-545030901
...
19
Limiter-Line HUS-530052286
...
20
SCREW HUS-530015814
...
21
SCREW - CARB. ADAPTOR HUS-530016014
...
22
SCREW HUS-545003902
...
23
TRIMMER HEAD T25 HUS-537338310
...
24
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
25
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
26
ASSY GEARBOX HUS-530096295
...
27
DRIVE DISC HUS-537234901
...
xx
MANUAL OPERATORS Not Shown HUS-545196749
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159
...
...
...
