Husqvarna 128 LD - 952711969 (US_CAN) Trimmer/Edger

Model: 128 LD - 952711969 (US_CAN)

Save
 Don't See Your Part Listed?
product name

ENGINE

...
...
27
KIT STARTER SPRING HUS-545008087
...
67
COVER-AIR BOX HUS-530057846
...
13
ASSY FUEL PICKUP PRE FLUSHED HUS-577167201
...
19
KIT FUEL TANK HVA HUS-545180870
...
7
KIT GASKET 28CC HUS-545008084
...
5
KIT GASKET 28CC HUS-545008084
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
29
DRIVER SPRING HUS-578465101
...
34
SCREW-6-19X5/16PLAST PA HUS-530015241
...
14
KIT-LINE(FUEL) HUS-530069599
...
36
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
25
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
17
KIT GASKET 28CC HUS-545008084
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
44
SCREW M4 X .70 TT 16MM HUS-530016456
...
24
SCREW M5-0.8X30MM HUS-530016426
...
37
KIT MUFFLER GUARD HVA HUS-576215001
...
8
BOLT CARB ADAPTOR HUS-530016400
...
11
KIT GASKET 28CC HUS-545008084
...
26
HOUSING STARTER HUS-525455501
...
3
CHOKE LEVER Fits Ruixing Carburetor, 5mm shaft Hole HUS-595015001
...
4
PURGE BULB ZAMA HUS-530058709
...
48
SCREW-10-24 X 1" (UNC) HUS-530015774
...
54
SPACER FLYWHEEL HUS-530057852
...
15
FUEL LINE FITTING HUS-530023877
...
62
KIT PISTON CYL HUS-545008083
...
22
KIT ROPE HUS-545008079
...
47
SCREW-10-14 X 1/2 PLASTITE HUS-530015805
...
39
KIT MUFFLER W/CATALYST MUFFLER ID CODE 044801007C HUS-574031502
...
52
KIT DRUM CLUTCH ASSY S/N = 2012-091N HUS-580446601
...
12
STARTER PAWL BRIDGE HUS-503873305
...
46
WASHER-CLUTCH HUS-530094189
...
30
PULLEY STARTER DRIVE HUS-579366201
...
70
KIT DECAL HUS-545003352
...
1
FILTER AIRBOX HUS-530150253
...
56
CRANKCASE CAST 128 HUS-577929502
...
16
FUEL CAP ASSY HUS-578931503
...
42
IGNITION MODULE MBU-7 HUS-545046701
...
59
WRIST PIN RET. HUS-530015162
...
58
CRANKSHAFT S/N = 2012-020N HUS-585415401
...
55
FLYWHEEL HUS-530039242
...
31
SCREW HUS-530016468
...
72
WASHER THRUST S/N = 2012-090N HUS-530016420
...
43
ASSY MODULE LEAD WIRE HUS-530039227
...
41
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
63
KIT GASKET 28CC HUS-545008084
...
58
CRANKSHAFT S/N = 2012-021N HUS-585415402
...
xx
GASKET ZAMA CARBURETOR HUS-504811801
...
35
SHIELD HEAT HUS-530150440
...
3
CHOKE LEVER Fits Zama Carburetor, 4.3mm Shaft Hole HUS-530057844
...
33
BOLT MUFFLER HUS-530058982
...
65
KIT CARB HUS-545081848
...
45
WASHER CLUTCH HUS-530016463
...
38
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
10
KIT GASKET 28CC HUS-545008084
...
23
STARTER HANDLE HUS-545043204
...
57
BEARING RADIAL BALL (6201) HUS-545013401
...
28
KIT PULLEY/SPRING HUS-585530301
...
18
ISOLATOR FUEL TANK HUS-530059780
...
2
NUT HUS-530016101
...
49
LOCKNUT-HEX 10-24 HUS-530015768
...
39
NEEDS DESCRIPTION MUFFLER ID CODE 044804007C HUS-529423901
...
60
RING PISTON HUS-575227901
...
52
ASSY CLUTCH DRUM S/N = 2012-090N HUS-587126401
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
71
BEARING THRUST S/N = 2012-090N HUS-545173401
...
69
KIT GASKET 28CC HUS-545008084
...
51
ASSY FAN HOUSING HVA 1" HUS-545205201
...
40
KIT GASKET 28CC HUS-545008084
...
53
ASSEMBLY CLUTCH HUS-530055122
...
61
KIT - PISTON HUS-545081814
...
32
ASSY STARTER HSG HVA HUS-579063101
...
20
REAR SHROUD ORANGE HUS-576153201
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
50
SCREW M4 X .70 TT 16MM HUS-530016456
...
21
SCREW HUS-530016448
...
xx
Gaskets RUIXING CARBURETOR HUS-599604201
...
6
CARB ADAPTOR HUS-530035596

SERVICE REFERENCE

...
...
2
WASHER THRUST HUS-530016420
...
3
KIT DRUM CLUTCH ASSY CLUTCH DRUM - S/N 2012-091N AND HIGHER HUS-580446601
...
1
BEARING THRUST HUS-545173401
...
3
ASSY CLUTCH DRUM S/N 2012-090N AND LOWER HUS-587126401

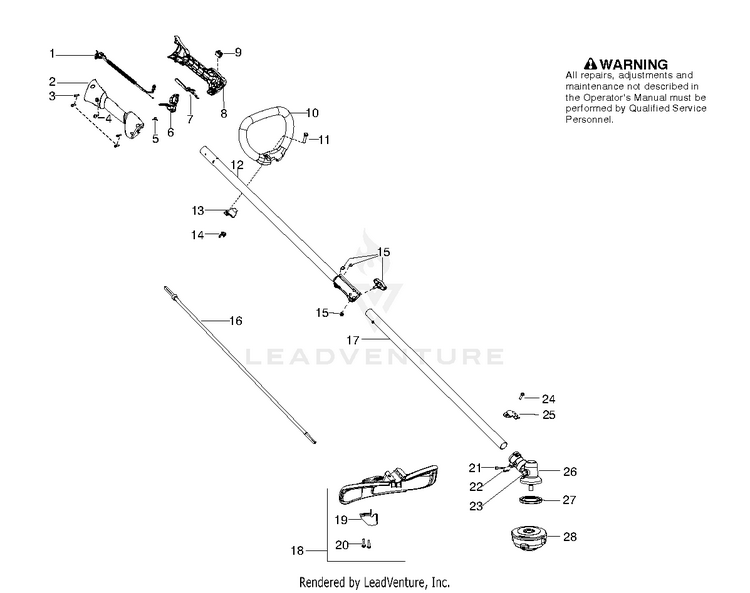

SHAFT & HANDLE

...
...
2
HSG THROTTLE RIGHT HVA 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-545223001
...
19
Limiter - Line HUS-530052286
...
20
SCREW HUS-530015814
...
4
SCREW-10-14 X 1/2 PLASTITE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530015805
...
16
FLEXSHAFT HUS-545132002
...
28
TRIMMER HEAD T25 HUS-537338310
...
12
KIT UPPER SHAFT SILVER UPPER DRIVESHAFT HUS-575261201
...
23
PLUG GREASE 9MM HUS-575724601
...
7
THROTTLE LOCKOUT HVA ORANGE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574355401
...
13
CLAMP ASSIST HANDLE HUS-530059185
...
6
TRIGGER THROTTLE HVA ORANGE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574355301
...
11
BOLT, TYPE 2 HUS-530015820
...
21
SCREW - CARB. ADAPTOR HUS-530016014
...
17
KIT LOWER SHAFT LOWER DRIVESHAFT HUS-545180848
...
8
HSG THROTTLE LEFT HVA 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-545223201
...
9
SWITCH 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-545049309
...
14
NUT-"D" HANDLE HUS-530091373
...
3
SCREW M4 X 1.75 PT 16MM 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530016449
...
22
SCREW HUS-530016301
...
27
DRIVE DISC T25 HUS-537234901
...
18
KIT COBI SHIELD HUS-545030901
...
10
HANDLE HUS-545042201
...
5
SPRING TRIGGER HUS-530016454
...
26
ASSY GEARBOX HUS-530096295
...
1
ASSY CABLE / WIRE HARNESS 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-576139401
...
24
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
15
COUPLER ASSY SILVER HUS-587119302
...
25
BRACKET SHIELD STRAIGHT SHAFT SHIELD BRACKET HUS-530057554
...
...
...
...
