Husqvarna 128 L (2009-03) Trimmer

Model: 128 L (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

128L (US/CAN)

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
HOUSING-THROTTLE RH HUS-545062001
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
BOLT, TYPE 2 HUS-530015820
...
12
HANDLE HUS-545042201
...
13
KIT DRIVESHAFT SST (Incl. decal, 21,22,23,25) HUS-545008081
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
FLEXSHAFT 57" HUS-545007507
...
17
KIT COBI SHIELD (Incl. 18,19,20) HUS-545030901
...
18
Limiter-Line HUS-530052286
...
19
SCREW HUS-530015814
...
20
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
21
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
23
SCREW HUS-545003902
...
24
DRIVE DISC HUS-537234901
...
25
ASSY GEARBOX HUS-530096295
...
26
TRIMMER HEAD T25 HUS-537338310

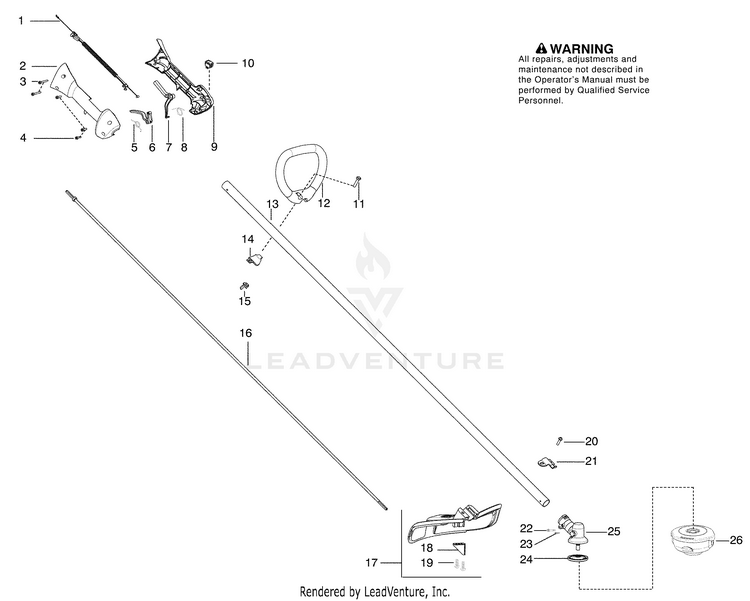

Schematic Image Zoomed
