Husqvarna 128 L (2009-03) Trimmer

Model: 128 L (2009-03)

Save
Part Not Listed?Part Not Listed?

product name

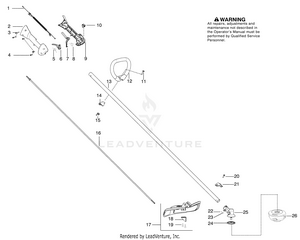

128L (US/CAN)

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301

...
2
HOUSING-THROTTLE RH HUS-545062001


...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449

...
5
SPRING TRIGGER HUS-530016454

...
6
TRIGGER THROTTLE HUS-545066001

...
7
THROTTLE LOCKOUT HUS-530059804

...
8
SPRING LOCKOUT HUS-545045601

...
9
HSG THROTTLE LH HUS-545067001

...
10
KIT SWITCH HUS-545049301

...
11
BOLT, TYPE 2 HUS-530015820

...
12

...
13
KIT DRIVESHAFT SST (Incl. decal, 21,22,23,25) HUS-545008081

...
14
CLAMP ASSIST HANDLE HUS-530059185

...
15
NUT-"D" HANDLE HUS-530091373

...
16
FLEXSHAFT 57" HUS-545007507

...
17
KIT COBI SHIELD (Incl. 18,19,20) HUS-545030901

...
18
Limiter-Line HUS-530052286

...

...
20
SCREW 1/4-20 X 7/8 (TAP HUS-530015771

...
21
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554

...
22
SCREW - CARB. ADAPTOR HUS-530016014

...

...
24
DRIVE DISC HUS-537234901

...
25
ASSY GEARBOX HUS-530096295

...
26
TRIMMER HEAD T25 HUS-537338310

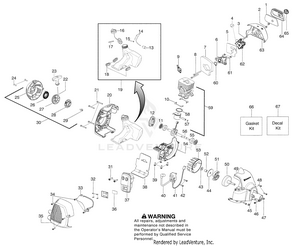

128L (US/CAN)

...
...
1
FILTER AIRBOX HUS-530150253


...
3
CHOKE LEVER HUS-530057844

...
4
PURGE BULB ZAMA HUS-530058709

...
5
KIT GASKET CARB 28CC (Incl 7,60) HUS-545008086

...
6
CARB ADAPTOR HUS-530035596

...
7
KIT GASKET 28CC (kit) HUS-545008084

...
8
BOLT CARB ADAPTOR HUS-530016400

...
9
BPMR6A NGK SPARK PLUG HUS-503235112

...
10
KIT GASKET 28CC (kit) HUS-545008084

...
11
KIT GASKET 28CC (kit) HUS-545008084

...
12
STARTER PAWL BRIDGE HUS-503873305

...
13
FUEL PICK-UP ASSY HUS-530095646

...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599

...
15
FUEL LINE FITTING HUS-530023877

...
16
FUEL CAP ASSY (Incl. 17) HUS-578931503

...
17
KIT GASKET 28CC (kit) HUS-545008084

...
18
ISOLATOR FUEL TANK HUS-530059780

...
19
KIT FUEL TANK HVA (Incl. 13,14,15,16,17,18) HUS-545180870

...
20
REAR SHROUD ORANGE HUS-576153201

...

...
22

...
23
STARTER HANDLE HUS-545043204

...
24
SCREW M5-0.8X30MM HUS-530016426

...
25
KIT HOUSING STARTER HUS-579066901

...
26
KIT STARTER SPRING HUS-545008087

...
27
KIT PULLEY/SPRING HUS-585530301

...
28
PULLEY STARTER DRIVE HUS-579366201

...

...
30
ASSY STARTER HSG HVA (Incl. 22,23,25,26,27,28,29) HUS-579063101

...
31
BOLT MUFFLER HUS-530058982

...
32
SCREW-6-19X5/16PLAST PA HUS-530015241

...
33
SHIELD HEAT HUS-530150440

...
34
SCREW M4 X 1.75 PT 16MM HUS-530016449

...
35
KIT MUFFLER GUARD HVA HUS-576215001

...
36
KIT SPARK ARRESTOR SCREEN (Incl. 32) HUS-545030501

...
37
KIT MUFFLER W/CATALYST HUS-574031502

...
38
KIT GASKET 28CC (kit) HUS-545008084

...
39
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897

...
40
IGNITION MODULE MBU-7 HUS-545046701

...
41
ASSY MODULE LEAD WIRE HUS-530039227

...
42
SCREW M4 X .70 TT 16MM HUS-530016456

...
43
WASHER CLUTCH HUS-530016463

...
44
WASHER-CLUTCH HUS-530094189

...

...

...
47
LOCKNUT-HEX 10-24 HUS-530015768

...
48
SCREW M4 X .70 TT 16MM HUS-530016456

...
49
FAN HSG ASSY HUS-545017501

...
50
ASSY CLUTCH DRUM HUS-587126401

...
51
KIT CLUTCH ASSY HUS-525472901

...
52
SPACER FLYWHEEL HUS-530057852

...
53

...
54
CRANKCASE CAST 128 HUS-577929502

...
55
BEARING RADIAL BALL (6201) HUS-545013401

...
56
CRANKSHAFT HUS-585415401

...
57
WRIST PIN RET. HUS-530015162

...
58
RING PISTON HUS-575227901

...
59
KIT PISTON & CYLINDER (Incl. 57,58) HUS-545008082

...
60
KIT GASKET 28CC (adaptor seal) HUS-545008084

...
61
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897

...
62
CARBURETOR KIT W38 (Incl. 3,4,5) HUS-545081850

...
63
AIRBOX HVA 128 HUSKY GRAY HUS-576459001

...
64
COVER-AIR BOX HUS-530057846

...
65
KNOB ASSY AIRBOX COVER HUS-530059796

...
66
KIT GASKET 28CC (Incl. 5,7,10,11,17,38,60) HUS-545008084

...
67
DECAL KIT HUS-545008085
...
...
...
