product name

Husqvarna 128 L (2008-11) Trimmer

Model: 128 L (2008-11)

Save
 Part Not Listed?Part Not Listed?
product name

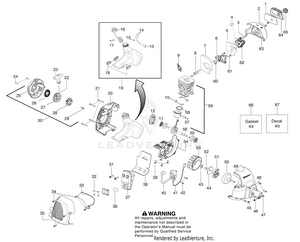

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC (Incl 7,60) HUS-545008086
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
10
KIT GASKET 28CC HUS-545008084
...
11
KIT GASKET 28CC HUS-545008084
...
12
STARTER PAWL BRIDGE HUS-503873305
...
13
FUEL PICK-UP ASSY HUS-530095646
...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599
...
15
FUEL LINE FITTING HUS-530023877
...
16
FUEL CAP ASSY (Incl. 17) HUS-578931503
...
17
KIT GASKET 28CC HUS-545008084
...
18
ISOLATOR FUEL TANK HUS-530059780
...
19
KIT FUEL TANK HVA (Incl. 13,14,15,16,17,18) HUS-545180870
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545008079
...
23
STARTER HANDLE HUS-545043204
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25.
KIT HOUSING STARTER HUS-579066901
...
26.
KIT STARTER SPRING HUS-545008087
...
27.
KIT PULLEY/SPRING HUS-585530301
...
28.
PULLEY STARTER DRIVE HUS-579366201
...
29.
SCREW HUS-530016468
...
30.
ASSY STARTER HSG HVA (Incl. 22,23,25,26,27,28,29) HUS-579063101
...
31.
BOLT MUFFLER HUS-530058982
...
32.
SCREW-6-19X5/16PLAST PA HUS-530015241
...
33.
SHIELD HEAT HUS-530150440
...
34.
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
35.
KIT MUFFLER GUARD HVA HUS-576215001
...
36.
KIT SPARK ARRESTOR SCREEN (Incl. 32) HUS-545030501
...
37.
KIT MUFFLER W/CATALYST HUS-574031502
...
38.
KIT GASKET 28CC HUS-545008084
...
39.
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
40.
IGNITION MODULE MBU-7 HUS-545046701
...
41.
ASSY MODULE LEAD WIRE HUS-530039227
...
42.
SCREW M4 X .70 TT 16MM HUS-530016456
...
43.
WASHER CLUTCH HUS-530016463
...
44.
WASHER-CLUTCH HUS-530094189
...
45.
SCREW HUS-530016469
...
46.
SCREW HUS-530016470
...
47.
LOCKNUT-HEX 10-24 HUS-530015768
...
48
SCREW M4 X .70 TT 16MM HUS-530016456
...
49
FAN HSG ASSY HUS-545017501
...
50
ASSY CLUTCH DRUM HUS-587126401
...
51
KIT CLUTCH ASSY HUS-525472901
...
52
SPACER FLYWHEEL HUS-530057852
...
53
FLYWHEEL HUS-530039242
...
54
CRANKCASE CAST 128 HUS-577929502
...
55
BEARING RADIAL BALL (6201) HUS-545013401
...
56
CRANKSHAFT HUS-585415401
...
57
WRIST PIN RET. HUS-530015162
...
58
RING PISTON HUS-575227901
...
59
KIT PISTON & CYLINDER (Incl. 57,58) HUS-545008082
...
60
KIT GASKET 28CC HUS-545008084
...
61
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
62
CARBURETOR KIT W38 (Incl. 3,4,5) HUS-545081850
...
63
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
64
COVER-AIR BOX HUS-530057846
...
65
KNOB ASSY AIRBOX COVER HUS-530059796
...
66
KIT GASKET 28CC (Incl. 5,7,10,11,17,38,60) HUS-545008084
...
67
DECAL KIT HUS-545008085

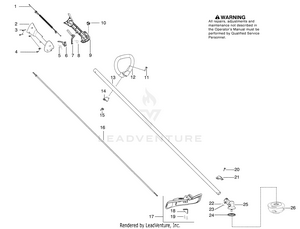

Handle & Controls

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
HOUSING-THROTTLE RH HUS-545062001
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
BOLT, TYPE 2 HUS-530015820
...
12
HANDLE HUS-545042201
...
13
KIT DRIVESHAFT SST (Incl. decal, 21,22,23,25) HUS-545008081
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
FLEXSHAFT 57" HUS-545007507
...
17
KIT COBI SHIELD (Incl. 18,19,20) HUS-545030901
...
18
Limiter-Line HUS-530052286
...
19
SCREW HUS-530015814
...
20
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
21
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
23
SCREW HUS-545003902
...
24
DRIVE DISC HUS-537234901
...
25
ASSY GEARBOX HUS-530096295
...
26
TRIMMER HEAD T25 HUS-537338310
...
...
...
