Husqvarna 128 CD (2009-08) Trimmer

Model: 128 CD (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

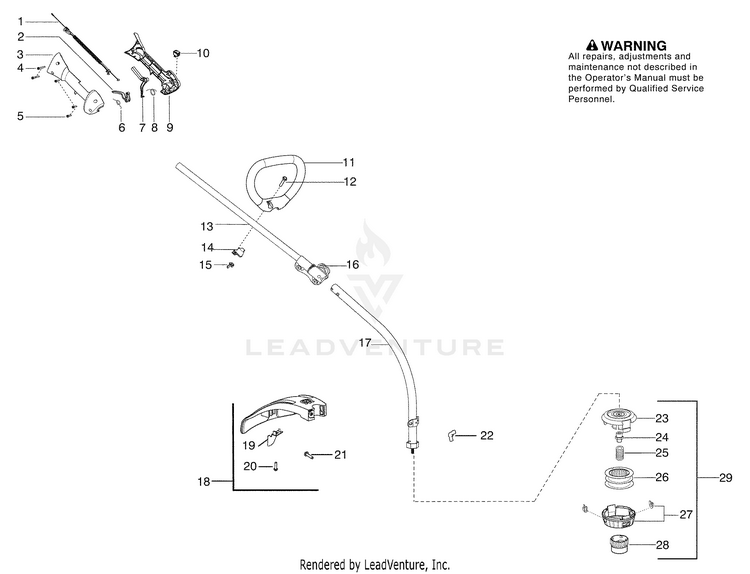

Handle & Controls

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE RH HUS-545062001
...
4
SCREW HUS-530016448
...
5
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
6
SPRING TRIGGER HUS-530016454
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
HANDLE HUS-545042201
...
12
BOLT, TYPE 2 HUS-530015820
...
13
KIT UPPER SHAFT SILVER (Incl. 16, & Flex) HUS-575261201
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
SCREW HUS-530016344
...
17
KIT DRIVESHAFT (incl. flex) HUS-545180847
...
18
TRIMMER GUARD 128C (Incl. 19,20,21,22) HUS-545031101
...
19
CUTTER HUS-530052287
...
20
SCREW HUS-530015814
...
21
BOLT, TYPE 2 HUS-530015820
...
22
NUT-"D" HANDLE HUS-530091373
...
23
HOUSING HUS-537419303
...
24
ADAPTER HUS-537419901
...
25
SPRING HUS-537338801
...
26
SPOOL ACCY TNG VII (25 FT) HUS-545080801
...
27
COVER HUS-545003365
...
28
KNOB HUS-537419601
...
29
HEAD TRIMMER P25 TNG VII 2.0MM (Incl. 23,24,25,26,27,28) HUS-596585811
...
xx
MANUAL OPERATORS Not Shown HUS-545186844
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159
