Husqvarna 128 CD (2009-08) Trimmer

Model: 128 CD (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

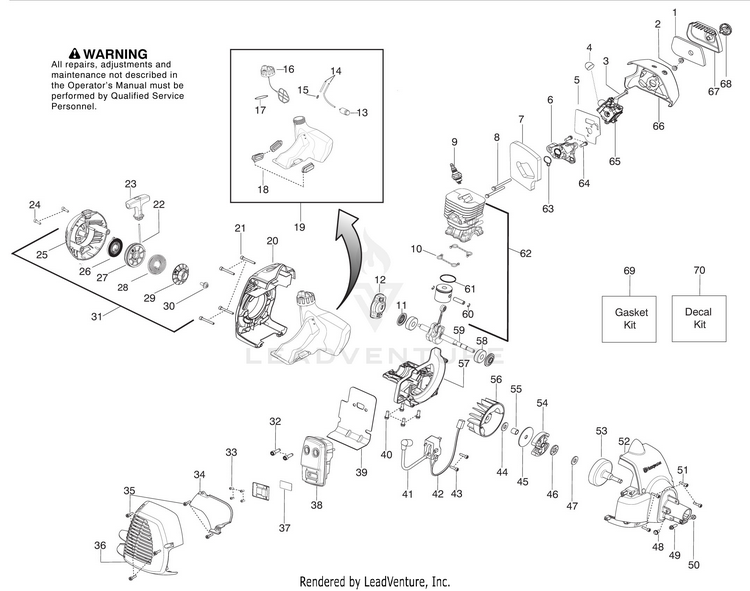

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC HUS-545008086
...
6
CARB ADAPTOR (Incl. 7,63) HUS-530035596
...
7
KIT GASKET 28CC (kit) HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
BPMR6A NGK SPARK PLUG HUS-503235112
...
10
KIT GASKET 28CC (kit) HUS-545008084
...
11
KIT GASKET 28CC (kit) HUS-545008084
...
12
STARTER PAWL BRIDGE HUS-503873305
...
13
FUEL PICK-UP ASSY HUS-530095646
...
14
KIT-LINE(FUEL) (Incl. 15) HUS-530069599
...
15
FUEL LINE FITTING HUS-530023877
...
16
FUEL CAP ASSY (Incl.17) HUS-578931503
...
17
KIT GASKET 28CC (kit) HUS-545008084
...
18
ISOLATOR FUEL TANK HUS-530059780
...
19
KIT FUEL TANK HVA (Incl. 13,14,15,16,17,18) HUS-545180870
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545008079
...
23
STARTER HANDLE HUS-545043204
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
KIT HOUSING STARTER HUS-579066901
...
26
KIT STARTER SPRING HUS-545008087
...
27
KIT PULLEY/SPRING HUS-585530301
...
28
SPRING - DRIVER HUS-544038802
...
29
PULLEY STARTER DRIVE HUS-579366201
...
30
SCREW HUS-530016468
...
31
ASSY STARTER HSG HVA (Incl. 22,23,25,26,27,28,29,30) HUS-579063101
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW 6-19X.437 HUS-545227101
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST (Incl. 32,33,37,39) New Part Number For This IPL HUS-574031502
...
39
KIT GASKET 28CC (kit) HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
BEARING THRUST HUS-545173401
...
47
WASHER THRUST HUS-530016420
...
48
SCREW HUS-530016469
...
49
SCREW HUS-530016470
...
50
LOCKNUT-HEX 10-24 HUS-530015768
...
51
SCREW M4 X .70 TT 16MM HUS-530016456
...
52
FAN HSG ASSY HUS-545017501
...
53
ASSY CLUTCH DRUM HUS-587126401
...
54
ASSEMBLY CLUTCH HUS-530055122
...
55
SPACER FLYWHEEL HUS-530057852
...
56
FLYWHEEL HUS-530039242
...
57
CRANKCASE CAST 128 HUS-577929502
...
58
BEARING RADIAL BALL (6201) HUS-545013401
...
59
CRANKSHAFT HUS-585415401
...
60
WRIST PIN RET. HUS-530015162
...
61
RING PISTON HUS-575227901
...
62
KIT PISTON & CYLINDER (Incl. 60,61) HUS-545008082
...
63
KIT GASKET 28CC (kit) HUS-545008084
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
65
CARBURETOR KIT W38 (Incl. 3,4,5) HUS-545081850
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
67
COVER-AIR BOX HUS-530057846
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
69
KIT GASKET 28CC (Incl. 5,7,10,11,17,39,63) HUS-545008084
...
70
KIT DECAL WARNING HUS-545180885
