Husqvarna 128 C (530165592) (2009-09) Trimmer

Model: 128 C (530165592) (2009-09)

Save
 Part Not Listed?Part Not Listed?
product name

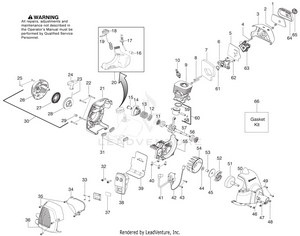

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB ( Incl. 7,61) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (foam) New Part Number For This IPL HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
Plug-Spark (RCJ-6Y) HUS-952030249
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER STARTER HUS-530016475
...
13
SPRING STARTER CUP HUS-545160301
...
14
ASSY STARTER CUP HUS-545102303
...
15
KIT STARTER HUS-545180844
...
16
FUEL PICK-UP ASSY HUS-530095646
...
17
KIT FUEL LINE HUS-545081897
...
18
FUEL CAP ASSY (Incl. 19) HUS-578931503
...
19
KIT GASKET 28CC (O-ring-fuel cap) New Part Number For This IPL HUS-545008084
...
20
FUEL TANK ASSY (Incl. 16,17,18,19) HUS-545105107
...
21
REAR SHROUD ORANGE HUS-576153201
...
22
SCREW HUS-530016448
...
23
KIT ROPE HUS-545029901
...
24
STARTER HANDLE GRAY HUS-530150318
...
25
SCREW M5-0.8X30MM HUS-530016426
...
26
STARTER HOUSING HUS-545029603
...
27
SPRING STARTER HUS-545008015
...
28
KIT STARTER PULLEY HUS-545029701
...
29
SCREW HUS-530016468
...
30
ASSY-STARTER HSG. HUS-545106301
...
31
ISOLATOR FUEL TANK (Incl. 23,24,26,27,28,29) HUS-530059780
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
38
KIT MUFFLER W/CATALYST (Incl. 33) HUS-574031502
...
39
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
SCREW HUS-530016469
...
47
SCREW HUS-530016470
...
48
LOCKNUT-HEX 10-24 HUS-530015768
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
50
FAN HSG ASSY HUS-545017501
...
52
KIT CLUTCH ASSY HUS-525472901
...
53
SPACER FLYWHEEL HUS-530057852
...
54
FLYWHEEL HUS-530039242
...
55
CRANKCASE CASTING HUS-545054601
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
58
WRIST PIN RET. HUS-530015162
...
59
RING PISTON HUS-575227901
...
60
KIT PISTON 28CC TRIMMER HUS-545030301
...
61
KIT GASKET 28CC (Incl. 58,59) New Part Number For This IPL HUS-545008084
...
62
SCREW-M5-0.8 X 25MM(TAP) (adaptor seal) HUS-530015897
...
64
COVER-AIR BOX (Incl. 4,5) HUS-530057846
...
65
KNOB ASSY AIRBOX COVER HUS-530059796
...
66
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709

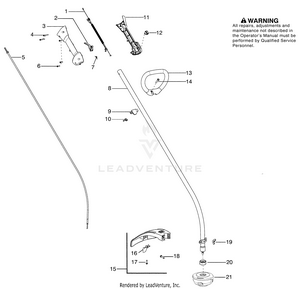

Handle & Controls

...
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE (RH) HUS-545062002
...
4
SCREW HUS-530016448
...
6
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
7
SPRING TRIGGER HUS-530016454
...
8
DRIVESHAFT KIT HUS-545180806
...
9
CLAMP ASSIST HANDLE HUS-530059185
...
10
NUT-"D" HANDLE HUS-530091373
...
11
HSG THROTTLE LH HUS-545067001
...
12
KIT SWITCH HUS-545049301
...
13
HANDLE HUS-545042201
...
14
BOLT, TYPE 2 HUS-530015820
...
15
TRIMMER GUARD 128C (Incl. 16,17,18,19) HUS-545031101
...
16
KIT - LIMITER - LINE HUS-545081862
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
NUT-"D" HANDLE HUS-530091373
...
20
DUST CUP HUS-545017403
...
21
TRIMMER HEAD T25 HUS-537338311
...
xx
MANUAL OPERATORS Not Shown HUS-545146947
...
xx
DECAL WARNING Not Shown HUS-545059101
...
...
...
