Husqvarna 125 LDX (20071300001-20082200000) Trimmer/Edger

Model: 125 LDX (20071300001-20082200000)

Save Part Not Listed?
product name

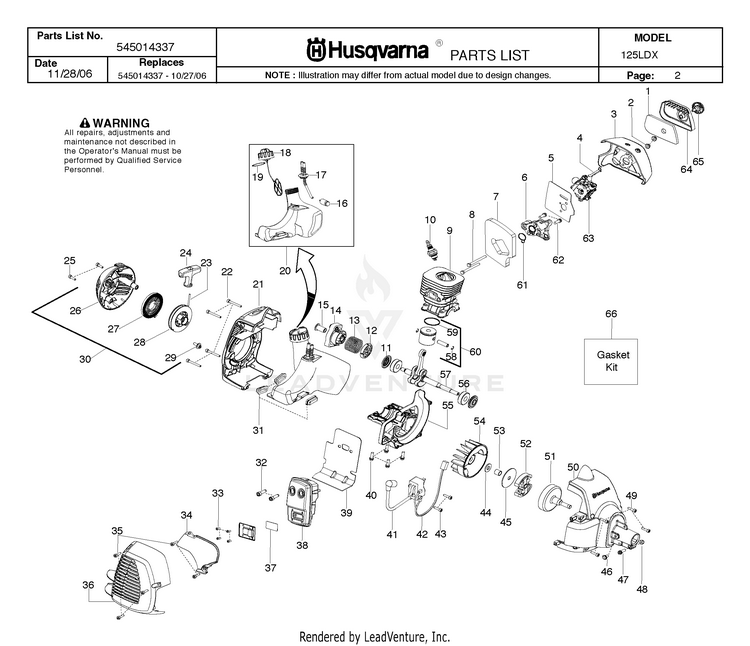

ENGINE

...
...
34
SHIELD HEAT HUS-530150440
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
23
KIT ROPE HUS-545029901
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
2
NUT HUS-530016101
...
7
KIT GASKET 28CC HUS-545008084
...
66
KIT GASKET 28CC HUS-545008084
...
60
KIT PISTON 28CC TRIMMER HUS-545030301
...
37
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
8
BOLT CARB ADAPTOR HUS-530016400
...
27
SPRING STARTER HUS-545008015
...
32
BOLT MUFFLER HUS-530058982
...
19
O RING NITRILE HUS-530019293
...
29
SCREW HUS-530016468
...
55
CRANKCASE CASTING HUS-545054601
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
15
KIT STARTER HUS-545180844
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
51
ASSY-CLUTCH DRUM HUS-545106801
...
6
CARB ADAPTOR HUS-530035596
...
50
FAN HSG ASSY HUS-545017501
...
20
ASSY FUEL TANK HUS-530057853
...
45
WASHER-CLUTCH HUS-530094189
...
54
FLYWHEEL HUS-530039242
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
3
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
22
SCREW HUS-530016448
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
52
KIT CLUTCH ASSY HUS-525472901
...
58
WRIST PIN RET. HUS-530015162
...
39
GASKET PAPER METAL HUS-530057848
...
48
NUT HEX LOCK 10-24 HUS-530403094
...
47
SCREW HUS-530016470
...
4
CHOKE LEVER HUS-530057844
...
31
ISOLATOR FUEL TANK HUS-530059780
...
18
FUEL CAP ASSY HUS-578931503
...
14
ASSY STARTER CUP HUS-545102303
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
12
WASHER STARTER HUS-530016475
...
46
SCREW HUS-530016469
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
-
PURGE BULB ZAMA HUS-530058709
...
64
COVER-AIR BOX HUS-530057846
...
38
KIT MUFFLER NON/CAT HUS-574031402
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
53
SPACER FLYWHEEL HUS-530057852
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
61
KIT GASKET 28CC HUS-545008084
...
10
BPMR6A NGK SPARK PLUG HUS-503235112
...
65
KNOB ASSY AIRBOX COVER HUS-530059796
...
5
KIT GASKET CARB HUS-545050402
...
17
KIT FUEL LINE HUS-545081897
...
13
SPRING STARTER CUP HUS-545160301
...
21
REAR SHROUD ORANGE HUS-576153201
...
30
ASSY-STARTER HSG. HUS-545106301
...
63
CARBURETOR HUS-545006060
...
24
STARTER HANDLE GRAY HUS-530150318
...
44
WASHER HUS-530016030
...
28
KIT STARTER PULLEY HUS-545029701
...
59
RING PISTON HUS-575227901
...
25
SCREW M5-0.8X30MM HUS-530016426
...
16
FUEL PICK-UP ASSY HUS-530095646
...
1
FILTER AIRBOX HUS-530150253

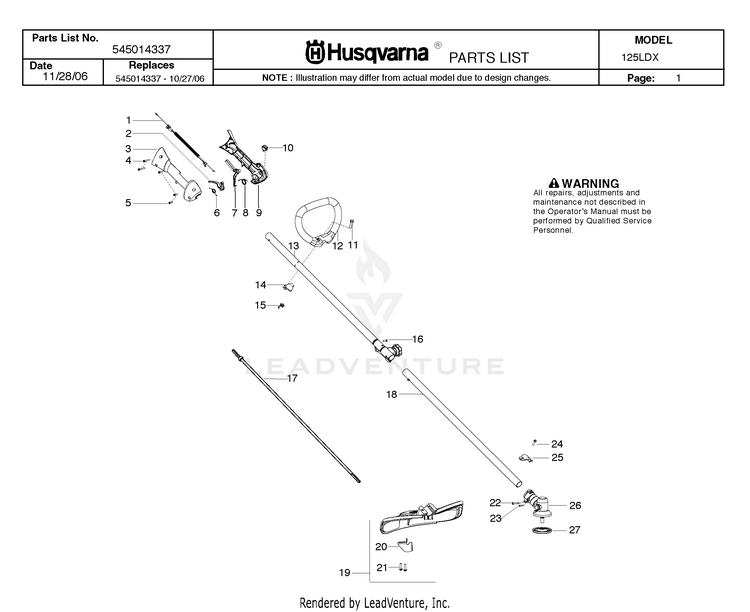

HANDLE & CONTROLS

...
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
27
DRIVE DISC HUS-537234901
...
6
SPRING TRIGGER HUS-530016454
...
19
KIT COBI SHIELD HUS-545030901
...
24
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
20
Limiter - Line HUS-530052286
...
9
HSG THROTTLE LH HUS-545067001
...
7
THROTTLE LOCKOUT HUS-530059804
...
11
BOLT, TYPE 2 HUS-530015820
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
16
SCREW HUS-530016344
...
10
KIT SWITCH HUS-545049301
...
5
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
2
TRIGGER THROTTLE HUS-545066001
...
8
SPRING LOCKOUT HUS-545045601
...
12
HANDLE HUS-545042201
...
23
SCREW HUS-530016301
...
3
HOUSING-THROTTLE RH HUS-545062001
...
21
SCREW HUS-530015814
...
15
NUT-"D" HANDLE HUS-530091373
...
4
SCREW HUS-530016448
...
17
FLEX-LOWER HUS-530096218
...
18
KIT DRIVESHAFT LOWER LDX HUS-545006067
...
26
ASSY GEARBOX HUS-530096295
...
25
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
13
DRIVE SHAFT HUS-545006066
