Husqvarna 125 LD (1993-05) Hedge Trimmer

Model: 125 LD (1993-05)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CLUTCH & OIL PUMP

...
...
725 23 74-71
SCREW M6S 6X30 HUS-725237471
...
531 00 47-02
COUPLING HUS-531004702
...
531 00 47-12
FELT HUS-531004712
...
724 33 31-01
SCREW HUS-724333101
...
738 21 98-01
BEARING HUS-738219801
...
531 00 47-13
LOWER BLADE HUS-531004713
...
531 00 47-15
WASHER HUS-531004715
...
724 12 19-01
SCREW HUS-724121901
...
531 00 47-11
PLATE HUS-531004711
...
531 00 47-18
BRACKET HUS-531004718
...
531 00 47-01
CUTTER ASSY HUS-531004701
...
531 00 47-04
GUIDE PLATE HUS-531004704
...
725 23 70-71
SCREW HUS-725237071
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
531 00 47-17
BOLT HUS-531004717
...
531 00 47-08
CAM HUS-531004708
...
531 00 47-19
DECAL HUS-531004719
...
738 21 01-03
BALL BEARING HUS-738210103
...
531 00 47-14
HOUSING HUS-531004714
...
531 00 47-16
BOLT HUS-531004716
...
531 00 47-07
GEAR HUS-531004707
...
531 00 47-05
GREASE FITTING HUS-531004705
...
531 00 47-09
CONNECTING ROD HUS-531004709
...
725 23 31-71
SCREW HUS-725233171
...
724 33 25-01
SCREW HUS-724332501
...
531 00 47-10
BLADE HUS-531004710
...
725 23 29-71
SCREW HUS-725232971
...
731 71 14-51
NUT HUS-731711451
...
531 00 47-03
HOUSING HUS-531004703
...
531 00 47-06
PINION GEAR HUS-531004706

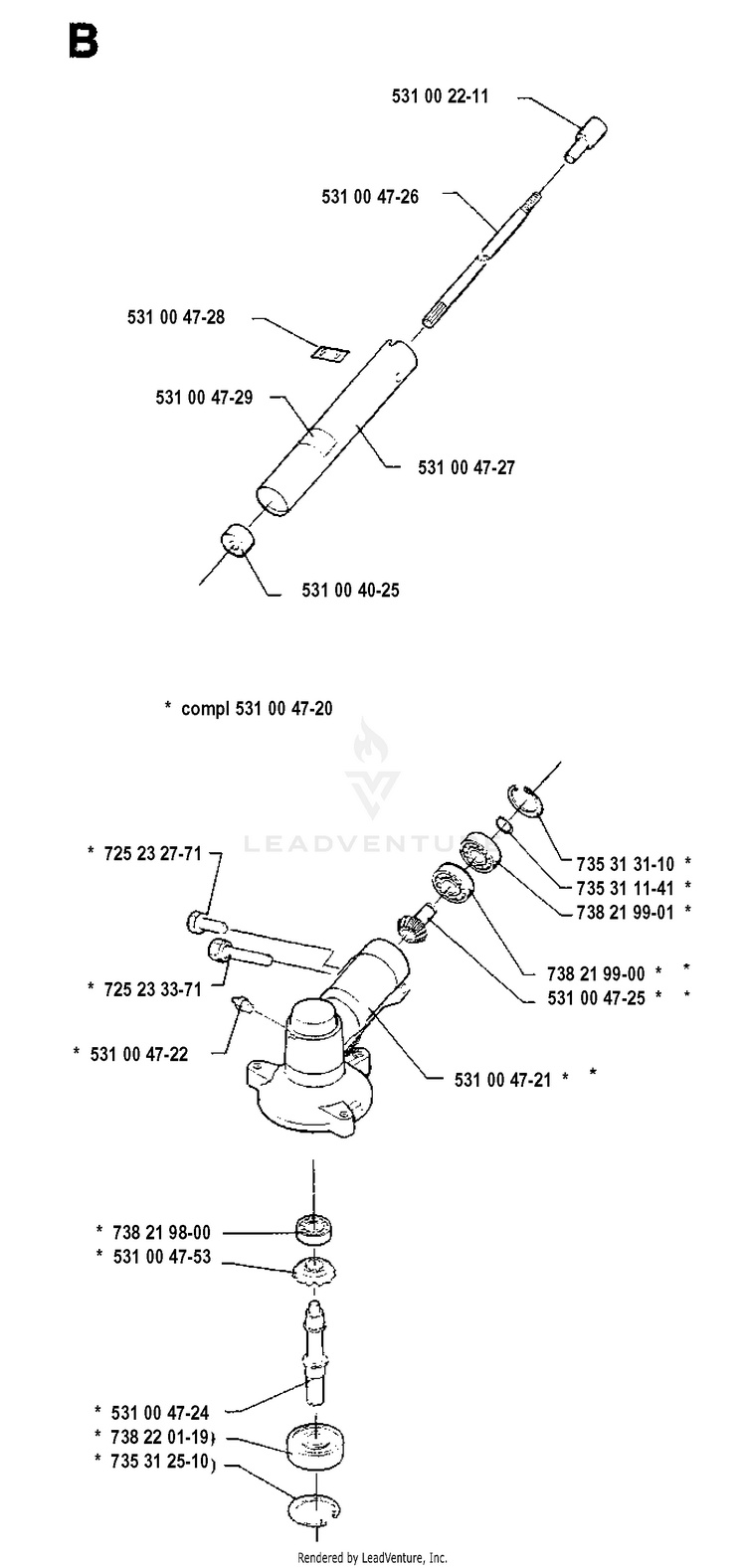

GEAR HOUSING

...
...
738 22 01-19
BALL BEARING HUS-503252301
...
735 31 11-41
RETAINING RING HUS-735311141
...
738 21 98-00
BALL BEARING 8X22X7/608Z HUS-738219800
...
738 21 99-00
BALL BEARING 24X9X1/609ZR HUS-738219900
...
531 00 47-28
DECAL HUS-531004728
...
531 00 47-22
GREASE FITTING HUS-531004722
...
531 00 47-27
SHAFT TUBE HUS-531004727
...
531 00 47-29
DECAL HUS-531004729
...
738 21 99-01
BALL BEARING 609Z HUS-738219901
...
531 00 47-24
SHAFT HUS-531004724
...
531 00 47-21
GEAR HOUSING HUS-531004721
...
531 00 40-25
BUSHING HUS-531004025
...
735 31 31-10
RETAINING RING HUS-735313110
...
531 00 22-11
HUS-531002211
...
531 00 47-53
HUS-531004753
...
531 00 47-20
ANGLE GEAR COMP HUS-531004720
...
725 23 33-71
Bolt HUS-725233371
...
725 23 27-71
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
531 00 47-26
INNER SHAFT HUS-531004726
...
735 31 25-10
RETAINING RING HUS-735312510
...
531 00 47-25
BEVEL GEAR HUS-531004725
