product name

Husqvarna 125 L (USA, Canada) (2006-01) Trimmer

Model: 125 L (USA, Canada) (2006-01)

Save
 Part Not Listed?Part Not Listed?
product name

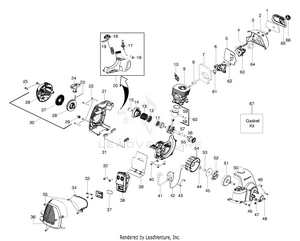

Engine, Fuel Tank & Ignition

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB (Incl 7,61) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER STARTER HUS-530016475
...
13
SPRING STARTER CUP HUS-545160301
...
14
ASSY STARTER CUP HUS-545102303
...
15
KIT STARTER HUS-545180844
...
16
FUEL PICK-UP ASSY HUS-530095646
...
17
KIT FUEL LINE HUS-545081897
...
18
FUEL CAP ASSY (Incl. 19) HUS-578931503
...
19
O RING NITRILE HUS-530019293
...
20
ASSY FUEL TANK (Incl. 16,17,18,19) HUS-530057853
...
21
REAR SHROUD ORANGE HUS-576153201
...
22
SCREW HUS-530016448
...
23
KIT ROPE HUS-545029901
...
24
STARTER HANDLE GRAY HUS-530150318
...
25
SCREW HUS-545003801
...
26
STARTER HOUSING HUS-545029603
...
27
SPRING STARTER HUS-545008015
...
28
KIT STARTER PULLEY HUS-545029701
...
29
SCREW HUS-530016468
...
30
STARTER HSG ASSY (Incl. 23,24,26,27,28,29) HUS-530150567
...
31
ISOLATOR FUEL TANK HUS-530059780
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST HUS-574031502
...
39
GASKET PAPER METAL HUS-530057848
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER HUS-530016030
...
45
WASHER-CLUTCH HUS-530094189
...
46
SCREW HUS-530016469
...
47
SCREW HUS-530016470
...
48
NUT HEX LOCK 10-24 HUS-530403094
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
50
FAN HSG ASSY HUS-545017501
...
51
ASSY CLUTCH DRUM HUS-587126401
...
52
KIT CLUTCH ASSY HUS-525472901
...
53
SPACER FLYWHEEL HUS-530057852
...
54
FLYWHEEL HUS-530039242
...
55
CRANKCASE 28CC MACHINED HUS-545081802
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
58
WRIST PIN RET. HUS-530015162
...
59
RING PISTON HUS-575227901
...
60
KIT PISTON 28CC TRIMMER (Incl. 58,59) HUS-545030301
...
61
KIT GASKET 28CC HUS-545008084
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
63
CARBURETOR (Incl. 4,5,64) HUS-545006060
...
64
KIT GASKET 28CC HUS-545008084
...
65
COVER-AIR BOX HUS-530057846
...
66
KNOB ASSY AIRBOX COVER HUS-530059796
...
67
KIT GASKET 28CC (Incl. 5,7,11,19,39,61,64) HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709

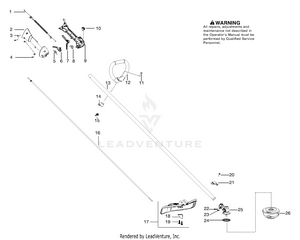

Handle, Shaft & Cutting Head

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
HOUSING-THROTTLE RH HUS-545062001
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
BOLT, TYPE 2 HUS-530015820
...
12
HANDLE HUS-545042201
...
13
KIT D'SHAFT (Incl. decal) HUS-545081011
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
FLEXSHAFT 57" HUS-545007507
...
17
KIT COBI SHIELD (Incl. 18,19,20) HUS-545030901
...
18
Limiter-Line HUS-530052286
...
19
SCREW HUS-530015814
...
20
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
21
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
23
SCREW HUS-530016301
...
24
ASSY DUST CUP HUS-530150294
...
25
ASSY GEARBOX HUS-530096295
...
26
TRIMMER HEAD T25 HUS-537338310
...
xx
MANUAL OPERATORS Not Shown HUS-545058716
...
xx
DECAL-WARNING Not Shown HUS-545059001
...
...
...
