Husqvarna 125 L (2005-06) Trimmer

Model: 125 L (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

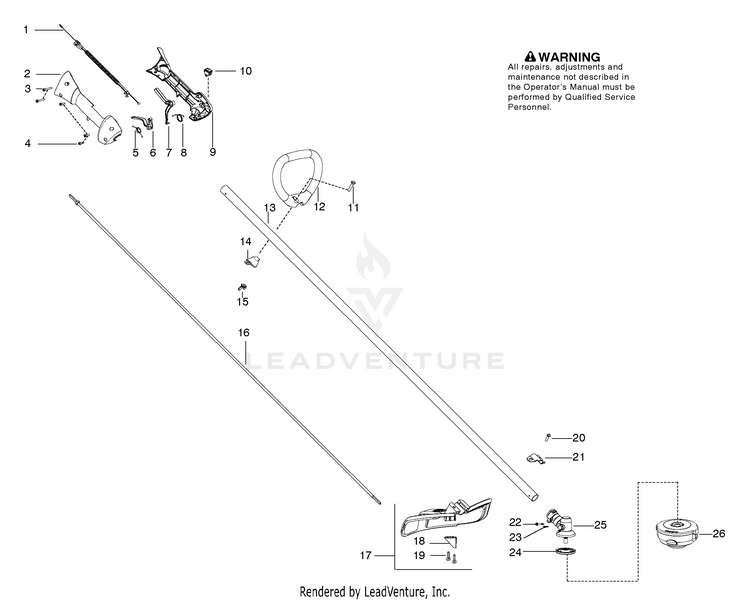

Shaft & Cutting Head

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
THROTTLE HSG RH HUS-530057855
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
THROTTLE HSG LH HUS-530057856
...
10
KIT SWITCH HUS-545049301
...
11
BOLT, TYPE 2 HUS-530015820
...
12
HANDLE ASSIST HUS-530150076
...
13
KIT D'SHAFT (Incl. decal) HUS-545081011
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
FLEXSHAFT 57" HUS-545007507
...
17
KIT COBI SHIELD (Incl. 18,19,20) HUS-545030901
...
18
Limiter-Line HUS-530052286
...
19
SCREW HUS-530015814
...
20
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
21
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
22
SCREW - CARB. ADAPTOR HUS-530016014
...
23
SCREW HUS-530016301
...
24
ASSY DUST CUP HUS-530150294
...
25
ASSY GEARBOX HUS-530096295
...
26
TRIMMER HEAD T25 HUS-537338310
...
xx
MANUAL OPERATORS Not Shown HUS-545047592
...
xx
Decal-Warning Not Shown HUS-530163946
