Husqvarna 125 E Canada (2009-09) (545014388) Trimmer

Model: 125 E Canada (2009-09) (545014388)

Save Part Not Listed?
product name

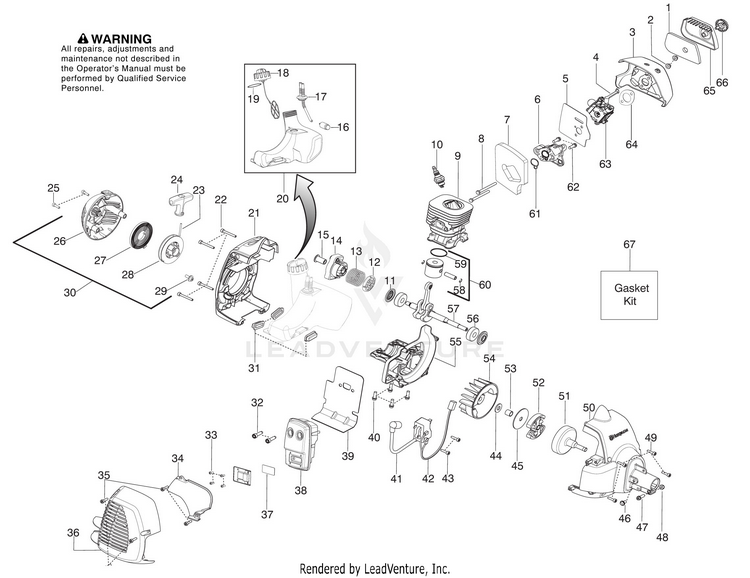

125E

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB (Incl. 7,61) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (foam) New Part Number For This IPL HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER STARTER HUS-530016475
...
13
SPRING STARTER CUP HUS-545160301
...
14
ASSY STARTER CUP HUS-545102303
...
15
KIT STARTER HUS-545180844
...
16
FUEL PICK-UP ASSY HUS-530095646
...
17
KIT FUEL LINE HUS-545081897
...
18
FUEL CAP ASSY (Incl. 19) HUS-578931503
...
19
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
20
FUEL TANK ASSY (Incl. 16,17,18,19) HUS-545105107
...
21
REAR SHROUD ORANGE HUS-576153201
...
22
SCREW HUS-530016448
...
23
KIT ROPE HUS-545029901
...
24
STARTER HANDLE GRAY HUS-530150318
...
25
SCREW M5-0.8X30MM HUS-530016426
...
26
STARTER HOUSING HUS-545029603
...
27
SPRING STARTER HUS-545008015
...
28
KIT STARTER PULLEY HUS-545029701
...
29
SCREW HUS-530016468
...
30
ASSY-STARTER HSG. (Incl. 23,24,26,27,28,29) HUS-545106301
...
31
ISOLATOR FUEL TANK HUS-530059780
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST HUS-574031502
...
39
KIT GASKET 28CC New Part Number For This IPL HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
SCREW HUS-530016469
...
47
SCREW HUS-530016470
...
48
LOCKNUT-HEX 10-24 HUS-530015768
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
50
FAN HSG ASSY HUS-545017501
...
52
KIT CLUTCH ASSY HUS-525472901
...
53
SPACER FLYWHEEL HUS-530057852
...
54
FLYWHEEL HUS-530039242
...
55
CRANKCASE CASTING HUS-545054601
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
58
WRIST PIN RET. HUS-530015162
...
59
RING PISTON HUS-575227901
...
60
KIT PISTON 28CC TRIMMER (Incl. 58,59) HUS-545030301
...
61
KIT GASKET 28CC (adaptor seal) New Part Number For This IPL HUS-545008084
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
64
KIT GASKET 28CC (air box) New Part Number For This IPL HUS-545008084
...
65
COVER-AIR BOX HUS-530057846
...
66
KNOB ASSY AIRBOX COVER HUS-530059796
...
67
KIT GASKET 28CC (Incl. 5,7,11,19,39,61,64) New Part Number For This IPL HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709

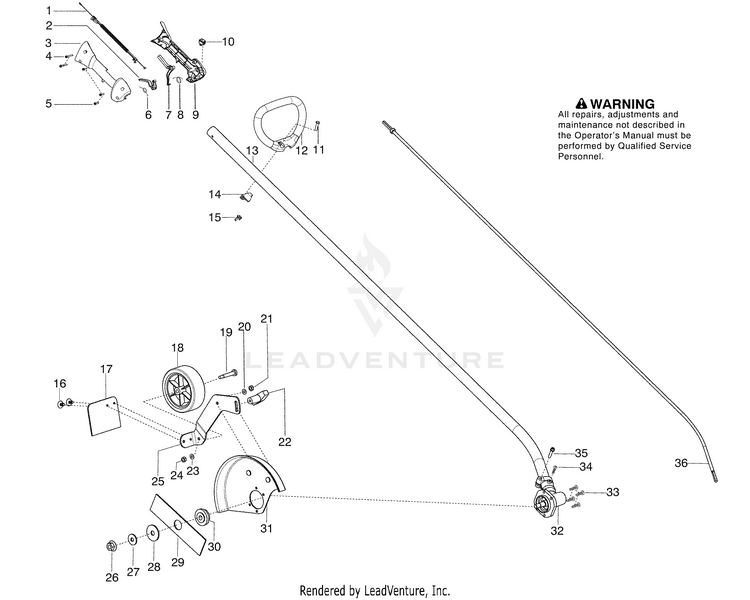

125E

...
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE RH HUS-545062001
...
4
SCREW HUS-530016448
...
5
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
6
SPRING TRIGGER HUS-530016454
...
7
THROTTLE LOCKOUT HUS-530059804
...
8
SPRING LOCKOUT HUS-545045601
...
9
HSG THROTTLE LH HUS-545067001
...
10
KIT SWITCH HUS-545049301
...
11
BOLT, TYPE 2 HUS-530015820
...
12
HANDLE HUS-545042201
...
13
KIT DRIVESHAFT EDGER (Incl. decal) HUS-545180808
...
14
CLAMP ASSIST HANDLE HUS-530059185
...
15
NUT-"D" HANDLE HUS-530091373
...
16
FASTENER MUD FLAP HUS-530053012
...
17
KIT MUD FLAP (Incl. 16) HUS-530071251
...
18
WHEEL-4"(FRONT)(RUBBER) HUS-530095125
...
19
BOLT-SHOULDER AXLE HUS-530015981
...
20
WASHER HUS-530092062
...
21
LOCKNUT HUS-530015515
...
22
KNOB HUS-530092059
...
23
WASHER HUS-530092062
...
24
LOCKNUT HUS-530015515
...
25
WHEEL BRKT ADJ HUS-530053009
...
26
NUT-FLANGE (LH) HUS-530015793
...
27
WASHER BELLVILLE HUS-530016240
...
28
WASHER-FLAT. HUS-530015792
...
29
BLADE HUS-530053007
...
30
DUST CUP HUS-530054623
...
31
KIT - EDGER GUARD (Incl. decal) HUS-545044101
...
32
KIT GEARBOX EDGER HUSQ (Incl. 30,33,34,35) HUS-545006005
...
33
SCR 10-24 MS LDK PAN PH HUS-530016312
...
34
SCREW 8-16 X 9/16 (PLAS (align) HUS-530015775
...
35
SCREW - CARB. ADAPTOR HUS-530016014
...
xx
MANUAL OPERATORS Not Shown HUS-545146946
...
xx
DECAL WARNING GUARD Not Shown HUS-545074501

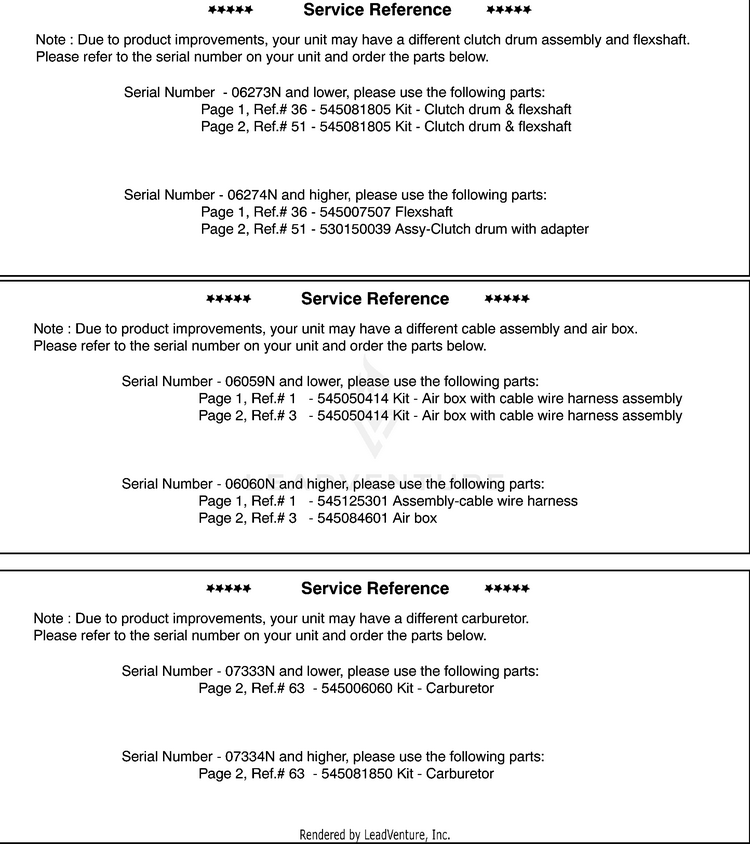

Service Reference

...

No Parts Available for this Schematic
