Husqvarna 125 C (2007-04) Trimmer

Model: 125 C (2007-04)

Save
 Part Not Listed?Part Not Listed?
product name

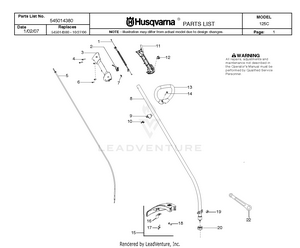

Handle & Shaft Assembly

...
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE (RH) RH HUS-545062002
...
4
SCREW HUS-530016448
...
6
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
7
SPRING TRIGGER HUS-530016454
...
8
DRIVE SHAFT ASSY HUS-545006069
...
9
CLAMP ASSIST HANDLE HUS-530059185
...
10
NUT-"D" HANDLE HUS-530091373
...
11
HSG THROTTLE LH LH HUS-545067001
...
12
KIT SWITCH HUS-545049301
...
13
HANDLE HUS-545042201
...
14
BOLT, TYPE 2 HUS-530015820
...
15
SHIELD ASSY Incl. 16,17,18,19, 22 New Part Number For This IPL HUS-545006095
...
16
CUTTER HUS-530052287
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
NUT HUS-530015197
...
20
DUST CUP HUS-545017403
...
22
WRENCH HUS-530056401

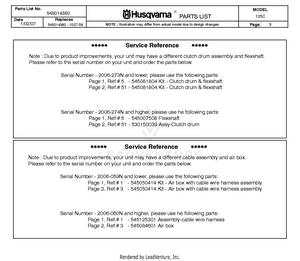

Service Reference

...

No Parts Available for this Schematic

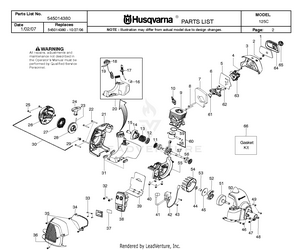

Starter & Engine Assembly

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB Incl. 7,61 HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC foam HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG RCJ-8Y HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER STARTER HUS-530016475
...
13
SPRING STARTER CUP HUS-545160301
...
14
ASSY STARTER CUP HUS-545102303
...
15
KIT STARTER HUS-545180844
...
16
FUEL PICK-UP ASSY HUS-530095646
...
17
KIT FUEL LINE HUS-545081897
...
18
FUEL CAP ASSY Incl. 19 HUS-578931503
...
19
O RING NITRILE HUS-530019293
...
20
%FUEL TANK ASSY Incl. 16,17,18,19 HUS-545105101
...
21
REAR SHROUD ORANGE HUS-576153201
...
22
SCREW HUS-530016448
...
23
KIT ROPE HUS-545029901
...
24
STARTER HANDLE GRAY HUS-530150318
...
25
SCREW M5-0.8X30MM HUS-530016426
...
26
STARTER HOUSING HUS-545029603
...
27
SPRING STARTER HUS-545008015
...
28
KIT STARTER PULLEY HUS-545029701
...
29
SCREW HUS-530016468
...
30
ASSY-STARTER HSG. Incl. 23,24,26,27,28,29 HUS-545106301
...
31
ISOLATOR FUEL TANK HUS-530059780
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN Incl. 33 HUS-545030501
...
38
KIT MUFFLER NON/CAT HUS-574031402
...
39
GASKET PAPER METAL HUS-530057848
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER HUS-530016030
...
45
WASHER-CLUTCH HUS-530094189
...
46
SCREW HUS-530016469
...
47
SCREW HUS-530016470
...
48
NUT HEX LOCK 10-24 HUS-530403094
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
50
FAN HSG ASSY HUS-545017501
...
52
KIT CLUTCH ASSY HUS-525472901
...
53
SPACER FLYWHEEL HUS-530057852
...
54
FLYWHEEL HUS-530039242
...
55
CRANKCASE CASTING HUS-545054601
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
57
KIT CRANKSHAFT ASSY HUS-545030001
...
58
WRIST PIN RET. HUS-530015162
...
59
RING PISTON HUS-575227901
...
60
KIT PISTON 28CC TRIMMER Incl. 58,59 HUS-545030301
...
61
KIT GASKET 28CC adaptor seal HUS-545008084
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
63
CARBURETOR Incl. 4,5 HUS-545006060
...
64
COVER-AIR BOX HUS-530057846
...
65
KNOB ASSY AIRBOX COVER HUS-530059796
...
66
KIT GASKET 28CC Incl. 5,7,11,19,39,61 HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709
...
...
...
