Husqvarna 125 BX - 952715645 (AU) BLOWERS

Model: 125 BX - 952715645 (AU)

Save Part Not Listed?
product name

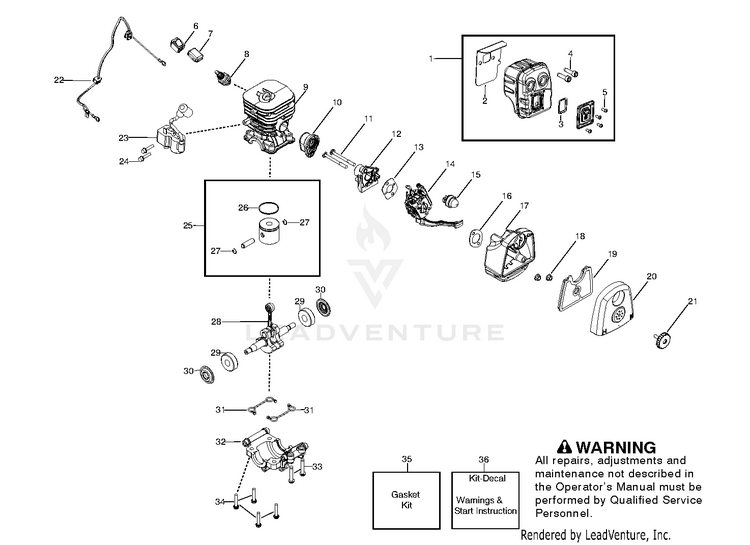

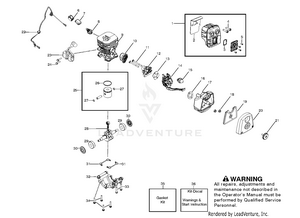

ENGINE

...
...
32
CAP BEARING HUS-577929601
...
9
SERVICE KIT 2008-233N AND LOWER SEE SERVICE REFERENCE HUS-529900601
...
25
KIT - PISTON HUS-545081814
...
17
BASE, AIRBOX HUS-545109801
...
16
GASKET HUS-545081813
...
14
KIT CARBURETOR HUS-590460102
...
19
Air Filters HUS-597797901
...
24
SCREW M4 X .70 TT 16MM HUS-530016456
...
28
KIT, CRANKSHAFT HUS-545081816
...
23
MODULE IGNITION 125B HAOLONG HUS-585836101
...
31
GASKET HUS-545081813
...
20
COVER, AIRBOX HUS-545109601
...
12
PLATE, CARB HUS-545133301
...
3
KIT, SPARK SCREEN HUS-545081810
...
6
KIT SWITCH HUS-545049301
...
10
BOOT, CARB HUS-545132501
...
1
ASSY MUFFLER HUS-580502701
...
4
BOLT MUFFLER HUS-530058982
...
2
GASKET HUS-545081813
...
34
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
22
LEAD WIRE ASSY W/GROUND HUS-545108201
...
15
AIR PURGE HUS-530047721
...
13
GASKET HUS-545081813
...
7
PROTECTOR, SWITCH HUS-545128201
...
30
CRANKSHAFT SEAL HUS-545081815
...
29
BEARING RADIAL BALL (6201) HUS-545013401
...
26
RING PISTON HUS-575227901
...
36
KIT DECAL HUS-545081861
...
27
WRIST PIN RET. HUS-530015162
...
18
NUT HUS-530016101
...
33
SCREW HUS-530015940
...
8
PLUG SPARK (RCJ6-Y) HUS-530030179
...
5
SCREW 6-19X.437 HUS-545227101
...
21
KNOB ASSY AIRBOX COVER HUS-530059796
...
11
SCREW HUS-530016187
...
35
GASKET HUS-545081813

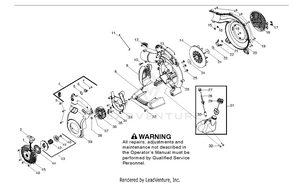

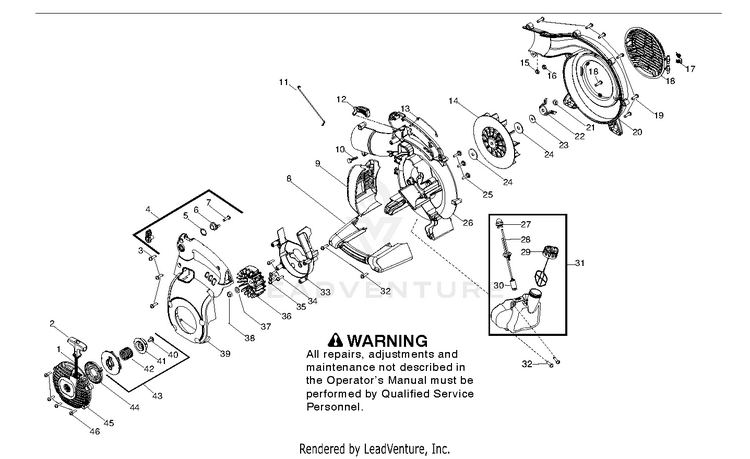

HOUSING

...
...
26
SCROLL - INNER HUS-545110001
...
11
WIRE LINKAGE HUS-545111301
...
22
MULCH BLADE 2008-292N AND LOWER, SEE SERVICE REFERENCE HUS-545202801
...
40
SCREW HUS-545112801
...
37
WASHER FLAT HUS-530015828
...
13
WIRE, HANDLE GROUND HUS-545131701
...
6
RATCHET CRUISE CONTROL HUS-545111501
...
44
SPRING STARTER HUS-545008013
...
23
WASHER-FLYWHEEL 2008-292N AND LOWER, SEE SERVICE REFERENCE HUS-530015127
...
1
KIT ROPE HUS-545081817
...
30
FUEL PICK-UP ASSY HUS-530095646
...
34
SCREW HUS-530015814
...
45
ASSY HSG STARTER COV HUS-545111701
...
10
SCREW HUS-545003502
...
12
TRIGGER, THROTTLE HUS-545111601
...
19
SCREW HUS-530015814
...
27
AIR PURGE HUS-530047721
...
29
FUEL CAP ASSY HUS-578931503
...
36
FLYWHEEL ASSY HUS-576423301
...
20
OUTER SCROLL ASSY VAC HUS-575533201
...
17
SPRING, VAC DOOR HUS-545111101
...
31
Tanks HUS-581337213
...
4
KIT CRUISE CONTROL HUS-545081822
...
42
SPRING EPS2 HUS-545115901
...
25
RETAINER SCREW FUEL TANK PATCH HUS-536317601
...
24
WASHER IMPELLER HUS-545164501
...
3
SCREW HUS-530015814
...
38
NUT-FLYWHEEL HUS-530016134
...
18
COVER VAC DOOR HUS-545111201
...
39
MOTOR ASSY COVER OVERMOLD HVA HUS-574768902
...
15
NUT HUS-530015197
...
2
STARTER HANDLE HUS-545043204
...
21
NUT, IMPELLER HUS-545147101
...
28
FUEL LINE GROMMET KIT HUS-581798001
...
35
SCREW HUS-530016386
...
32
SCREW HUS-530015814
...
8
HANDLE ASSIST W/OVER MOLD HUS-545119002
...
46
SCREW HUS-530016386
...
41
HUB HUS-545089001
...
43
KIT - STARTER HUS-545006084
...
9
Mufflers HUS-599707601
...
14
ASSY IMPELLER AND HUB HUS-581449401
...
7
SCREW HUS-530015814
...
16
LOCKNUT HUS-530015515
...
5
WAVE WASHER HUS-530015147
...
33
SCROLL, FLYWHEEL 2008-233N AND LOWER SEE SERVICE REFERENCE HUS-545132801

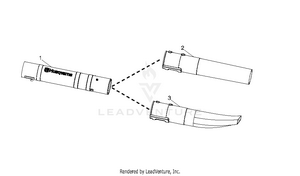

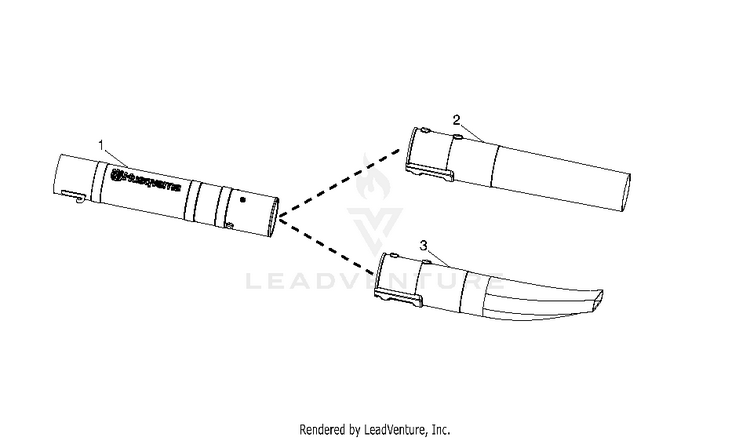

TUBE

...
...
3
FLARE, LOWER TUBE HUS-545119501
...
2
TUBE, LOWER HUS-545118001
...
1
TUBE UPPER BLOWER HUS GRAY HUS-590569201
