Husqvarna 125 B (Husqvarna) (2008-10) Blower

Model: 125 B (Husqvarna) (2008-10)

Save Part Not Listed?
product name

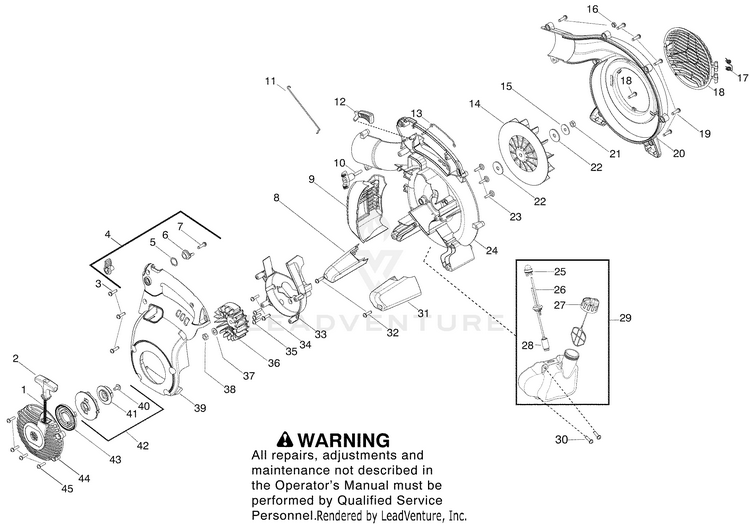

"A"

...
...
1
KIT ROPE HUS-545081817
...
2
STARTER HANDLE HUS-545043204
...
3
SCREW HUS-530015814
...
4
KIT CRUISE CONTROL (Incl. 5,6,7) HUS-545081822
...
5
WAVE WASHER HUS-530015147
...
6
RATCHET CRUISE CONTROL HUS-545111501
...
7
SCREW HUS-530015814
...
8
FOOT, FRONT IMPACT HUS-545140301
...
9
Mufflers HUS-599707601
...
10
ASSY, BLOWER KNOB HUS-545108701
...
11
WIRE LINKAGE HUS-545111301
...
12
TRIGGER, THROTTLE HUS-545111601
...
13
WIRE, HANDLE GROUND HUS-545131701
...
14
ASSY IMPELLER AND HUB HUS-581449401
...
15
WASHER-FLYWHEEL HUS-530015127
...
16
NUT HUS-530015197
...
17
SPRING, VAC DOOR HUS-545111101
...
18
COVER VAC DOOR HUS-545111202
...
19
SCREW HUS-530015814
...
20
ASSEMBLY OUTER SCROLL (Incl. 17,18) HUS-575533202
...
21
NUT, IMPELLER HUS-545147101
...
22
WASHER IMPELLER HUS-545164501
...
23
RETAINER SCREW FUEL TANK PATCH HUS-536317601
...
24
SCROLL, INNER HUS-545110002
...
25
AIR PURGE HUS-530047721
...
26
FUEL LINE GROMMET KIT (Incl. 25,28) HUS-581798001
...
27
FUEL CAP ASSY HUS-578931503
...
28
FUEL PICK-UP ASSY HUS-530095646
...
29
Tanks (Incl. 25,26,27,28) HUS-581337213
...
30
SCREW HUS-530015814
...
31
FOOT, REAR IMPACT HUS-545140401
...
32
SCREW HUS-530015814
...
34
SCREW HUS-530015814
...
35
SCREW HUS-530016386
...
36
FLYWHEEL ASSY HUS-576423301
...
37
WASHER FLAT HUS-530015828
...
38
NUT-FLYWHEEL HUS-530016134
...
39
COVER, MOTOR HOUSING HUS-545108802
...
40
SCREW HUS-545112801
...
41
HUB HUS-545140801
...
42
KIT - STARTER (Incl. 40,41) HUS-545006084
...
43
SPRING STARTER HUS-545008013
...
44
ASSY HSG STARTER COV HUS-545111701
...
45
SCREW HUS-530016386

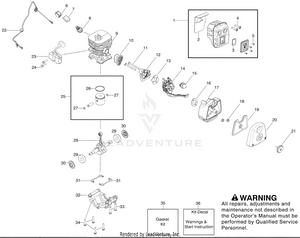

"B"

...
...
1
ASSY MUFFLER (Incl. 2,3,4,5) HUS-580502701
...
2
GASKET (kit) HUS-545081813
...
3
KIT, SPARK SCREEN (Incl. 5) HUS-545081810
...
4
BOLT MUFFLER HUS-530058982
...
5
SCREW 6-19X.437 HUS-545227101
...
6
KIT SWITCH HUS-545049301
...
7
PROTECTOR, SWITCH HUS-545128201
...
8
PLUG SPARK (RCJ6-Y) HUS-530030179
...
10
BOOT, CARB HUS-545132501
...
11
SCREW HUS-530016187
...
12
PLATE, CARB HUS-545133301
...
13
GASKET (kit) HUS-545081813
...
14
KIT CARBURETOR (Incl. 13,16) HUS-590460102
...
15
AIR PURGE (Incl. with #25 on page 1) HUS-530047721
...
16
GASKET HUS-545081813
...
17
BASE, AIRBOX HUS-545109801
...
18
NUT HUS-530016101
...
19
Air Filters HUS-597797901
...
20
COVER, AIRBOX HUS-545109601
...
21
KNOB ASSY AIRBOX COVER HUS-530059796
...
22
LEAD WIRE ASSY W/GROUND HUS-545108201
...
23
MODULE IGNITION 125B HAOLONG HUS-585836101
...
24
SCREW M4 X .70 TT 16MM HUS-530016456
...
25
KIT - PISTON (Incl. 26,27) HUS-545081814
...
26
RING PISTON HUS-575227901
...
27
WRIST PIN RET. HUS-530015162
...
28
KIT, CRANKSHAFT HUS-545081816
...
29
BEARING RADIAL BALL (6201) HUS-545013401
...
30
CRANKSHAFT SEAL HUS-545081815
...
31
GASKET (kit) HUS-545081813
...
32
CAP BEARING HUS-577929601
...
33
SCREW HUS-530015940
...
34
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
35
GASKET (Incl. 2,13,16,31) HUS-545081813
...
36
KIT, DECAL HUS-545081809

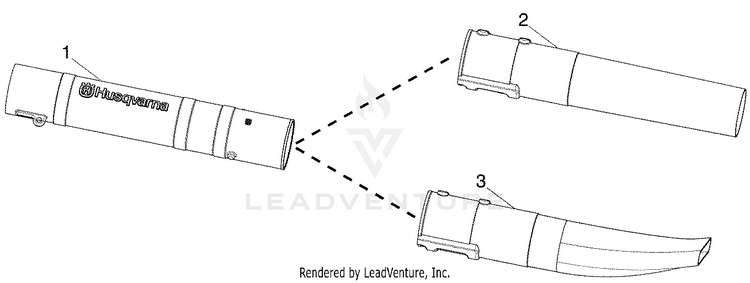

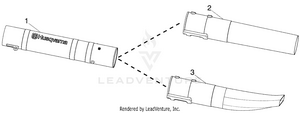

"C"

...
...
1
TUBE UPPER BLOWER HUS GRAY HUS-590569201
...
2
TUBE, LOWER HUS-545118001
...
3
FLARE, LOWER TUBE HUS-545119501

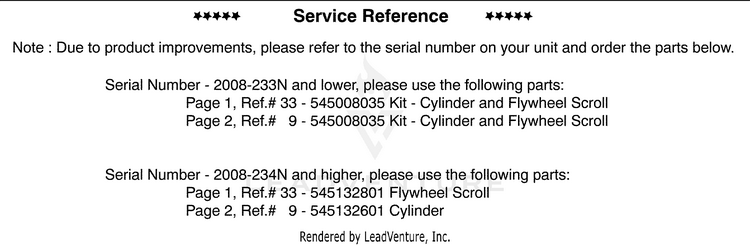

Service Reference

...

No Parts Available for this Schematic
