product name

Husqvarna 125 B BLOWERS

Model: 125 B

Back To Assemblies

Save Part Not Listed?
product name

HOUSING

...
...
38
NUT-FLYWHEEL HUS-530016134
...
35
SCREW HUS-530016386
...
12
TRIGGER, THROTTLE HUS-545111601
...
32
SCREW HUS-530015814
...
15
WASHER-FLYWHEEL HUS-530015127
...
37
WASHER FLAT HUS-530015828
...
25
AIR PURGE HUS-530047721
...
36
FLYWHEEL ASSY HUS-576423301
...
10
SCREW HUS-545003502
...
11
WIRE LINKAGE HUS-545111301
...
13
WIRE, HANDLE GROUND HUS-545131701
...
9
Mufflers HUS-599707601
...
3
SCREW HUS-530015814
...
27
NEEDS DESCRIPTION HUS-.
...
44
ASSY HSG STARTER COV HUS-545111701
...
21
NUT, IMPELLER HUS-545147101
...
42
KIT - STARTER HUS-545006084
...
18
COVER VAC DOOR HUS-545111202
...
16
NUT HUS-530015197
...
43
SPRING STARTER HUS-545008013
...
19
SCREW HUS-530015814
...
20
ASSEMBLY OUTER SCROLL HUS-575533202
...
46
SPRING EPS2 HUS-545115901
...
30
SCREW HUS-530015814
...
8
FOOT, FRONT IMPACT HUS-545140301
...
26
FUEL LINE GROMMET KIT HUS-581798001
...
39
NEEDS DESCRIPTION HUS-545111002
...
2
STARTER HANDLE HUS-545043204
...
4
KIT CRUISE CONTROL HUS-545081822
...
23
RETAINER SCREW FUEL TANK PATCH HUS-536317601
...
41
HUB HUS-545089001
...
31
FOOT, REAR IMPACT HUS-545140401
...
28
FUEL PICK-UP ASSY 30 pcs, plastic bag HUS-530095646
...
33
SCROLL, FLYWHEEL HUS-545132801
...
5
WAVE WASHER HUS-530015147
...
6
RATCHET CRUISE CONTROL HUS-545111501
...
45
SCREW HUS-530016386
...
40
SCREW HUS-545112801
...
34
SCREW HUS-530015814
...
22
WASHER IMPELLER HUS-545164501
...
24
SCROLL, INNER HUS-545110002
...
7
SCREW HUS-530015814
...
1
KIT ROPE HUS-545081817

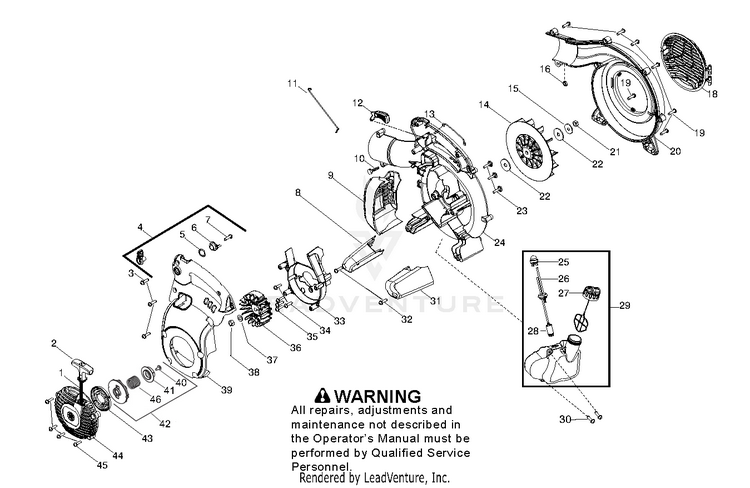

Schematic Image Zoomed
