Husqvarna 125 B BLOWERS

Model: 125 B

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
35
GASKET HUS-545081813
...
9
SERVICE KIT Chrome HUS-529900601
...
25
KIT - PISTON HUS-545081814
...
19
Air Filters HUS-597797901
...
11
SCREW HUS-530016187
...
5
SCREW 6-19X.437 HUS-545227101
...
10
BOOT, CARB HUS-545132501
...
7
PROTECTOR, SWITCH HUS-545128201
...
1
ASSY MUFFLER HUS-580502701
...
33
SCREW HUS-530015940
...
3
KIT, SPARK SCREEN HUS-545081810
...
12
PLATE, CARB HUS-545133301
...
15
AIR PURGE HUS-530047721
...
37
Gaskets HUS-599604201
...
26
RING PISTON HUS-575227901
...
32
CAP BEARING HUS-577929601
...
27
WRIST PIN RET. HUS-530015162
...
23
MODULE IGNITION 125B HAOLONG HUS-585836101
...
8
PLUG SPARK (RCJ6-Y) HUS-530030179
...
4
BOLT MUFFLER HUS-530058982
...
20
COVER, AIRBOX HUS-545109601
...
28
NEEDS DESCRIPTION HUS-.
...
17
BASE, AIRBOX HUS-545109801
...
22
LEAD WIRE ASSY W/GROUND HUS-545108201
...
21
KNOB ASSY AIRBOX COVER HUS-530059796
...
14
KIT CARBURETOR HUS-590460102
...
29
BEARING RADIAL BALL (6201) HUS-545013401
...
24
SCREW M4 X .70 TT 16MM HUS-530016456
...
34
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
18
NUT HUS-530016101
...
6
KIT SWITCH HUS-545049301
...
36
KIT LABEL HUS-545081863
...
30
CRANKSHAFT SEAL HUS-545081815

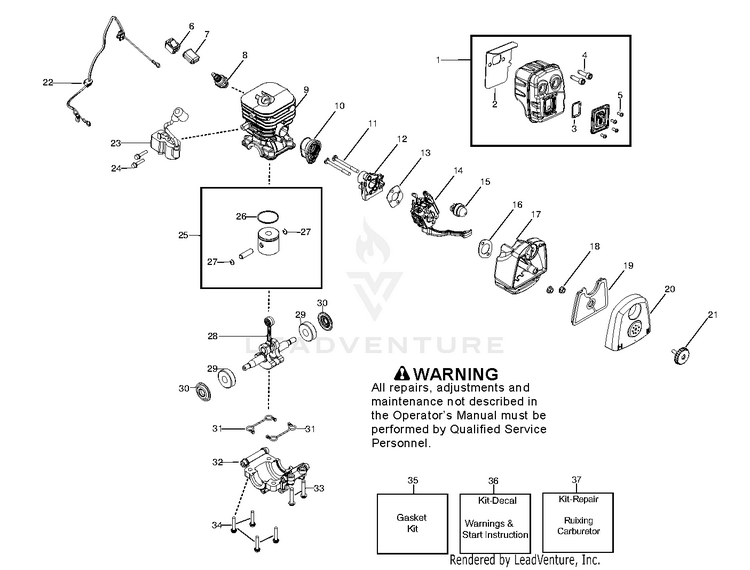

Schematic Image Zoomed
